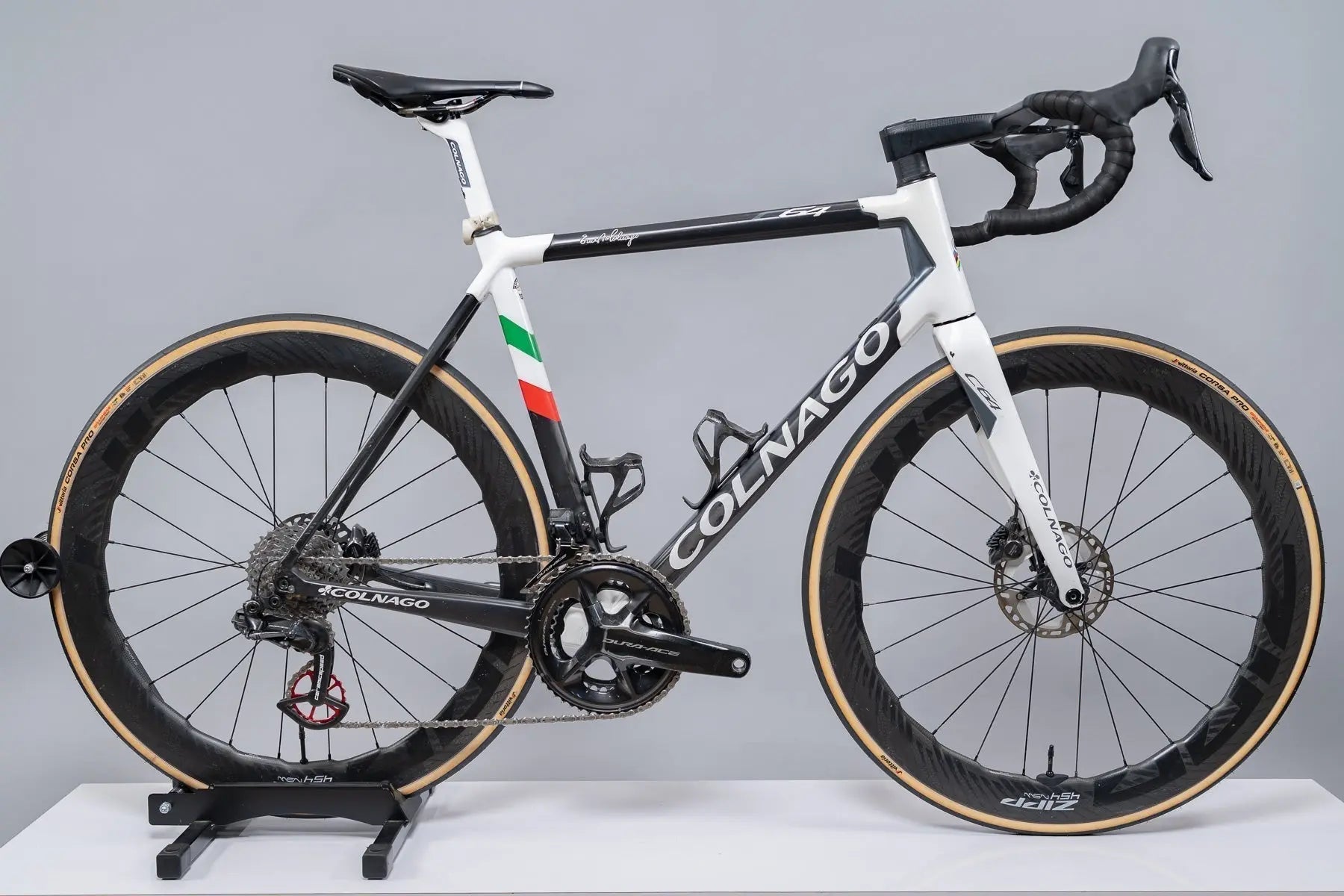

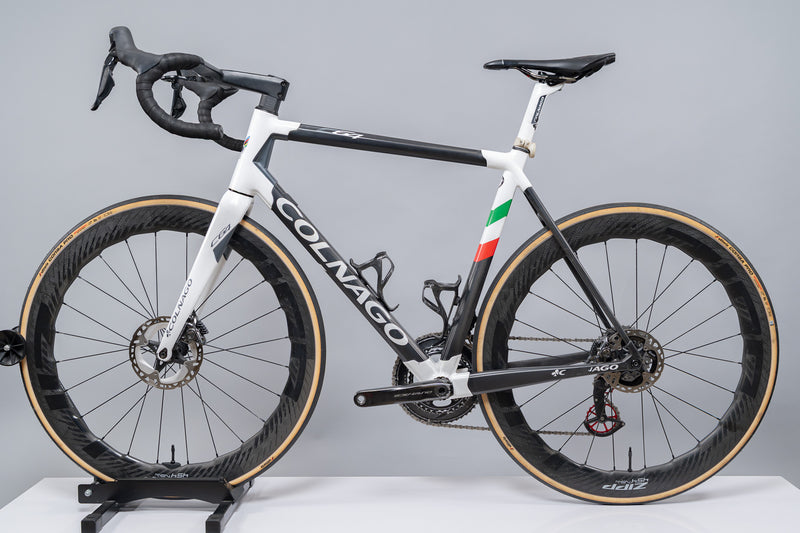

2022 Colnago C64 Dura Ace Di2 - 52s (Fits like a 55cm)

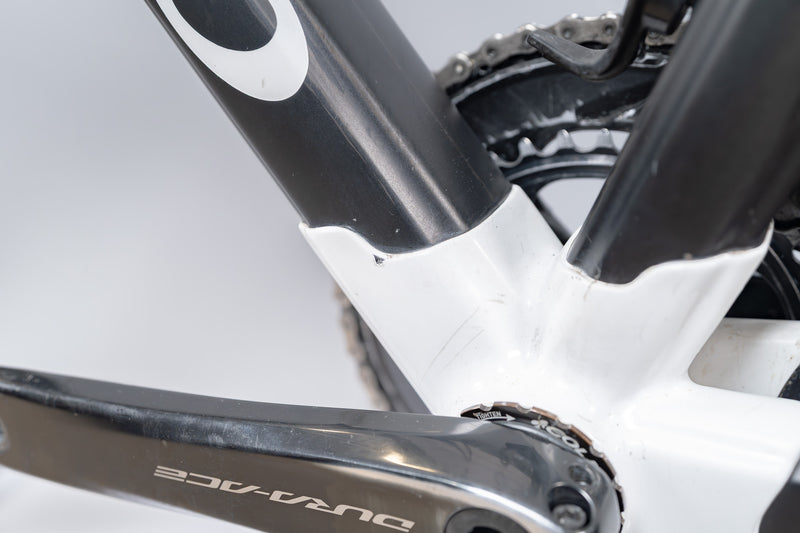

This custom built Colnago C64 pairs the last of the handmade lugged Italian frames with a current 12-speed Shimano Dura-Ace Di2 groupset. The bike is high-spec throughout, featuring Zipp 454 NSW wheels, an integrated Deda Alanera carbon cockpit, and a CeramicSpeed oversized pulley system - New, this was a $16k build. It was built up in 2023 and the wheels and cockpit were added in 2024. The bike has some blemishes (see photos) from regular riding, transport, and a few unfortunate tip-overs in the garage. If you’re looking for a super bike and don’t mind a bit of character, it's a fantastic machine that turns heads. It’s been well-maintained and just had a full tune-up, so it’s ready to ride!
Note on the size: A 52s fits like a 55cm and is a very popular "middle-of-the-road" size. It is generally the ideal fit for a rider between 5'10" and 6'0" (178cm – 183cm). It is generally advised to size down if in between sizes, as Colnago frames can run slightly large.
Specs:

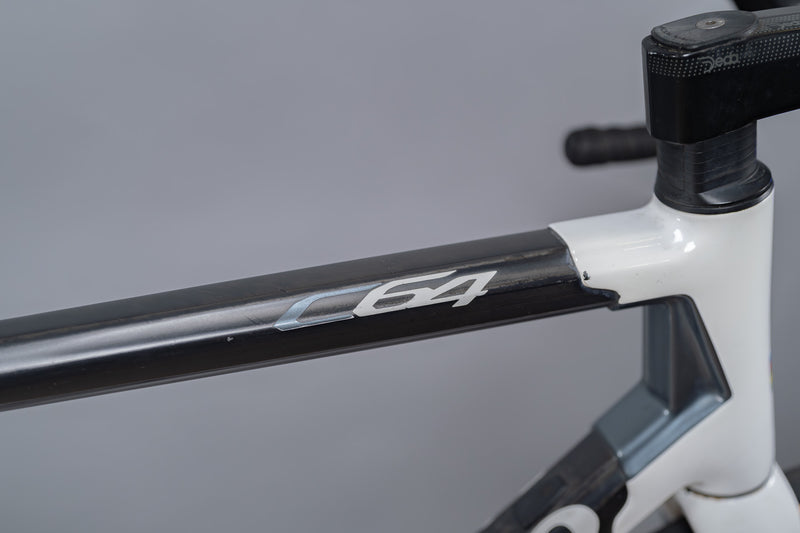

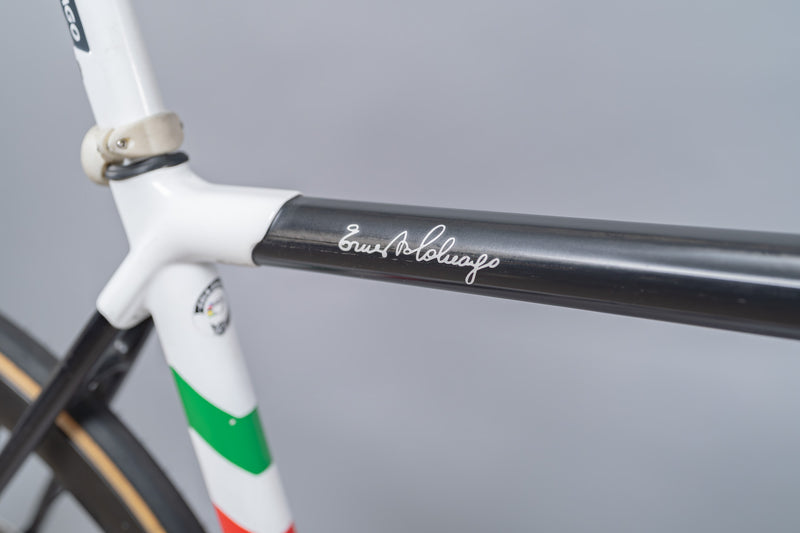

- Frame: Colnago C64 Disc, carbon fiber with star-shaped lugged construction, handmade in Italy, featuring asymmetric chainstays and ThreadFit 82.5 bottom bracket.

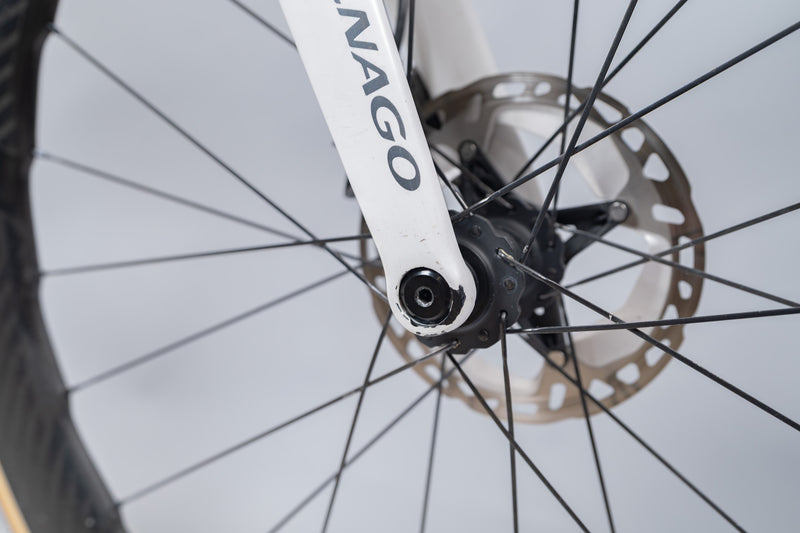

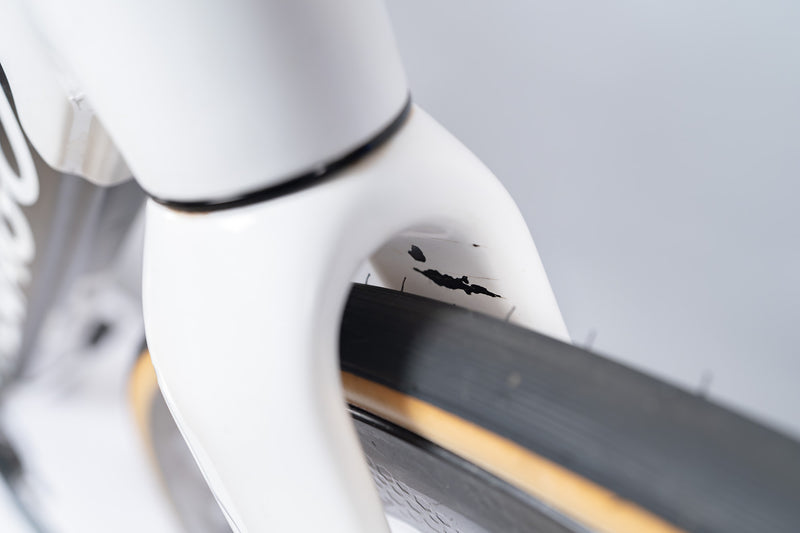

- Fork: Colnago C64 Disc, full carbon monocoque with internal ribbing for increased lateral stiffness and integrated internal brake cable routing.

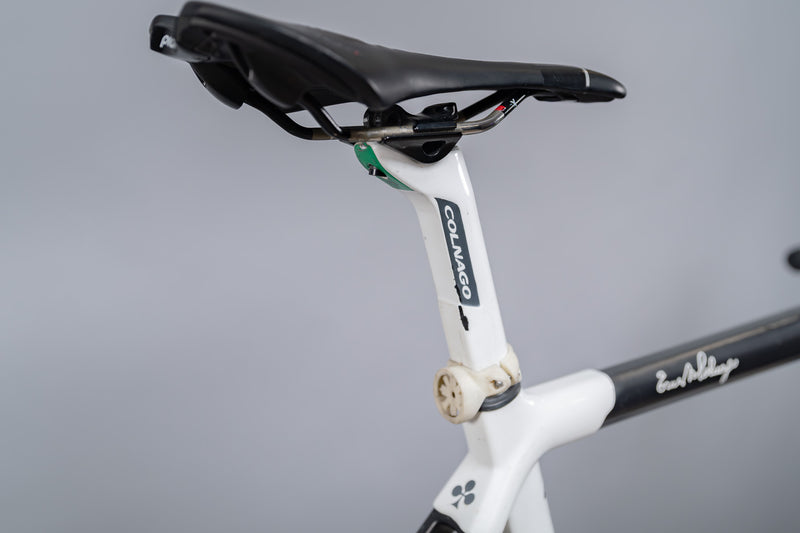

- Seatpost: Colnago Carbon "D-Shape" profile, featuring a truncated aero tail and 15mm offset for a refined balance of vibration dampening and aerodynamic efficiency.

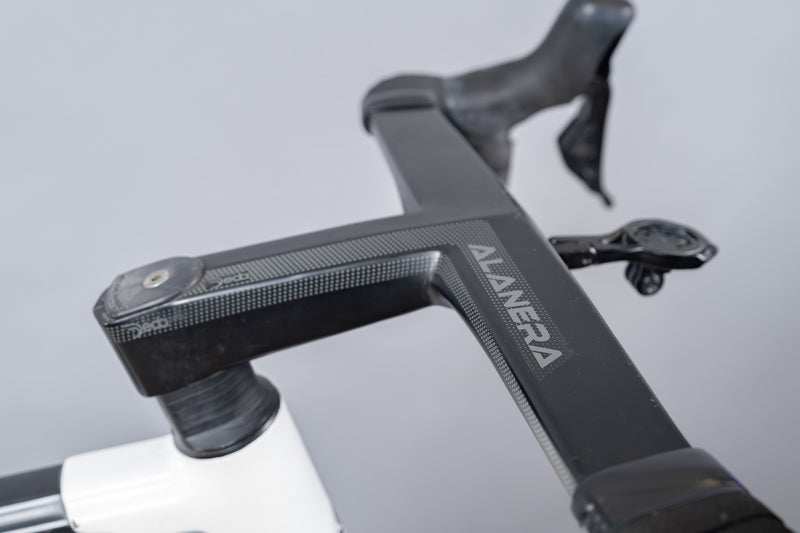

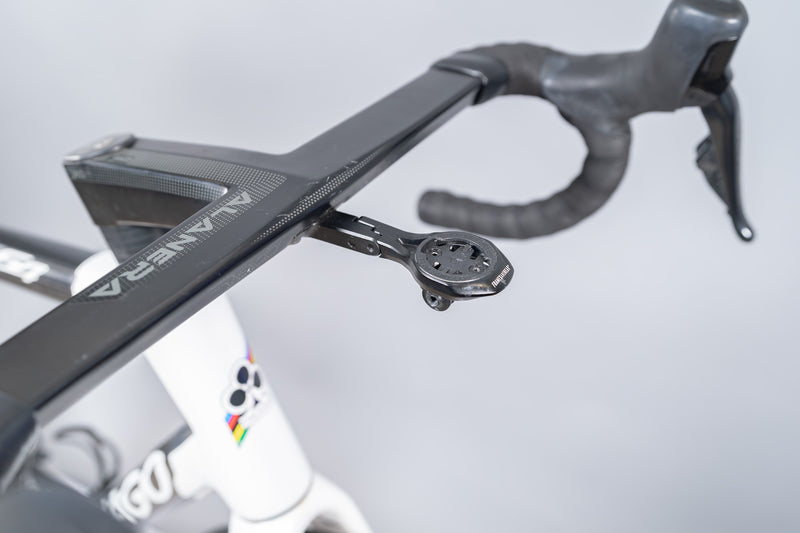

- Cockpit: Alanera Carbon Cockpit
- Saddle: Prologo
- Chain: Shimano Dura-Ace 12s
- Cassette: Shimano Dura-Ace

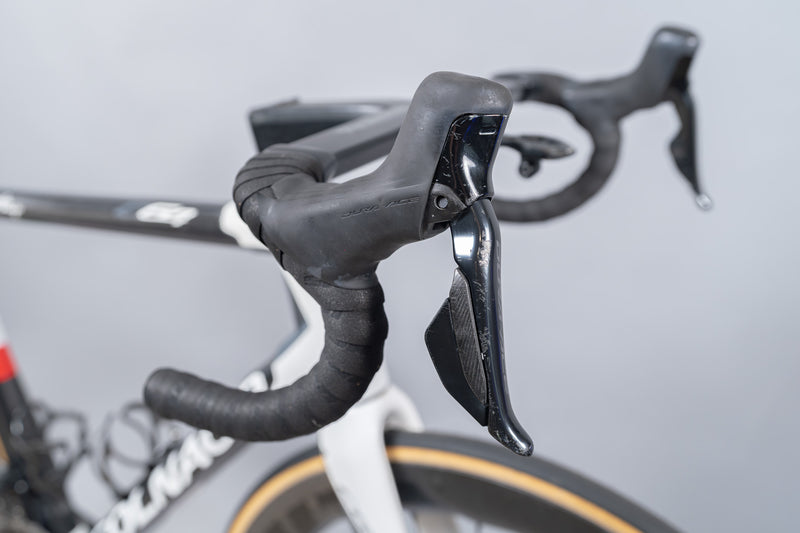

- Shifters: Shimano Dura-Ace Di2 R9200
- Crankset: Shimano Dura-Ace 52/36t
- Front Derailleur: Shimano Dura-Ace Di2 R9200

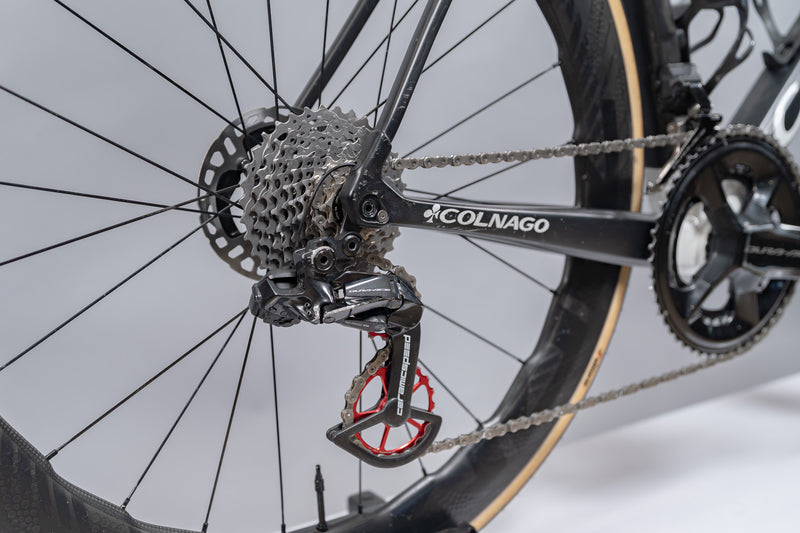

- Rear Derailleur: Shimano Dura-Ace Di2 R9200

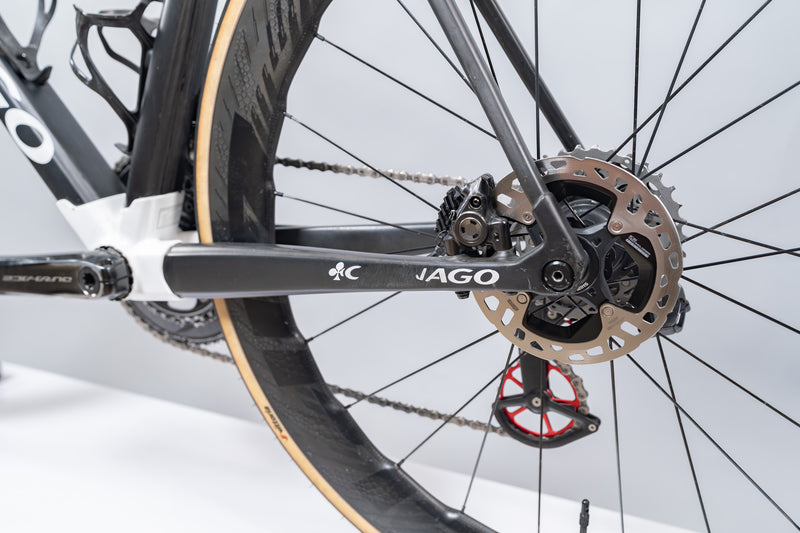

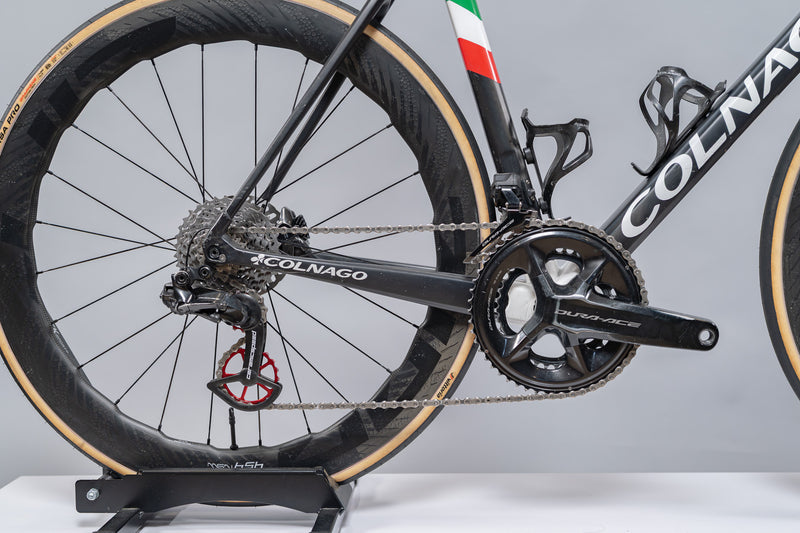

- Pulley System - CeramicSpeed OSPW
- Brakes: Shimano Dura-Ace HDR Disc
- Tires: Vittoria Corsa Pro TLR 700x28

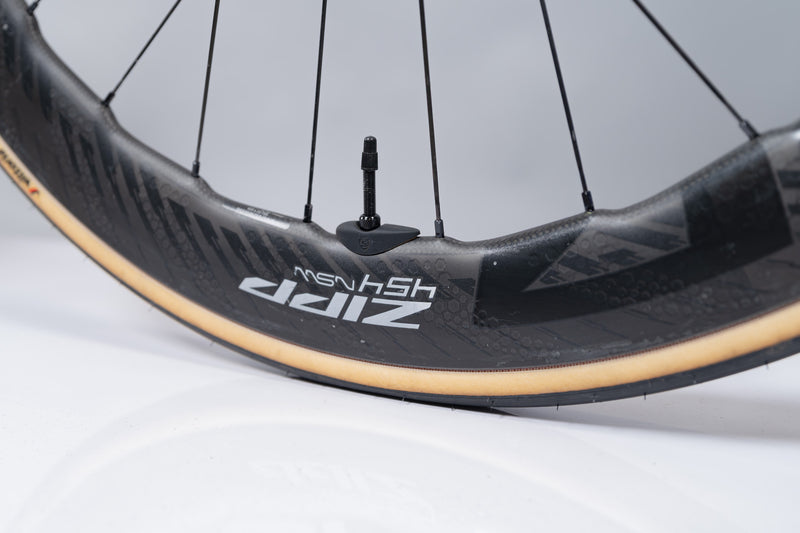

- Wheels: Zipp 454 NSW
- Includes: Di2 charger, Colnago carbon cages
Geometry (Colnago Sloped):
- Top Tube (effective): 550mm
- Stack: 565mm
- Reach: 384mm
- Seat Tube (effective): 604mm
- Stand Over: 790mm
Because it is a Sloping frame, the standover height varies depending on where you stand over the tube. The measurement is taken at the midpoint of the top tube. If you stand closer to the seat, you’ll have significantly more clearance; if you stand right against the head tube, you’ll have less.
