Specifications

  • MPN: FC-R7000
  • Series: Shimano 105 R7000
  • Speed: 2x11-speed
  • Construction: Hollowtech II
  • Crank arm length: 172.5mm
  • Bolt circle diameter: 110mm, 4-arm asymmetric
  • Chainring options: 50/34T, 52/36T, 53/39T (sold separately)
  • Q-factor: 146mm
  • Chain line: 43.5mm
  • Compatible chain: HG-EV 11-speed, HG-X11
  • Color: Black

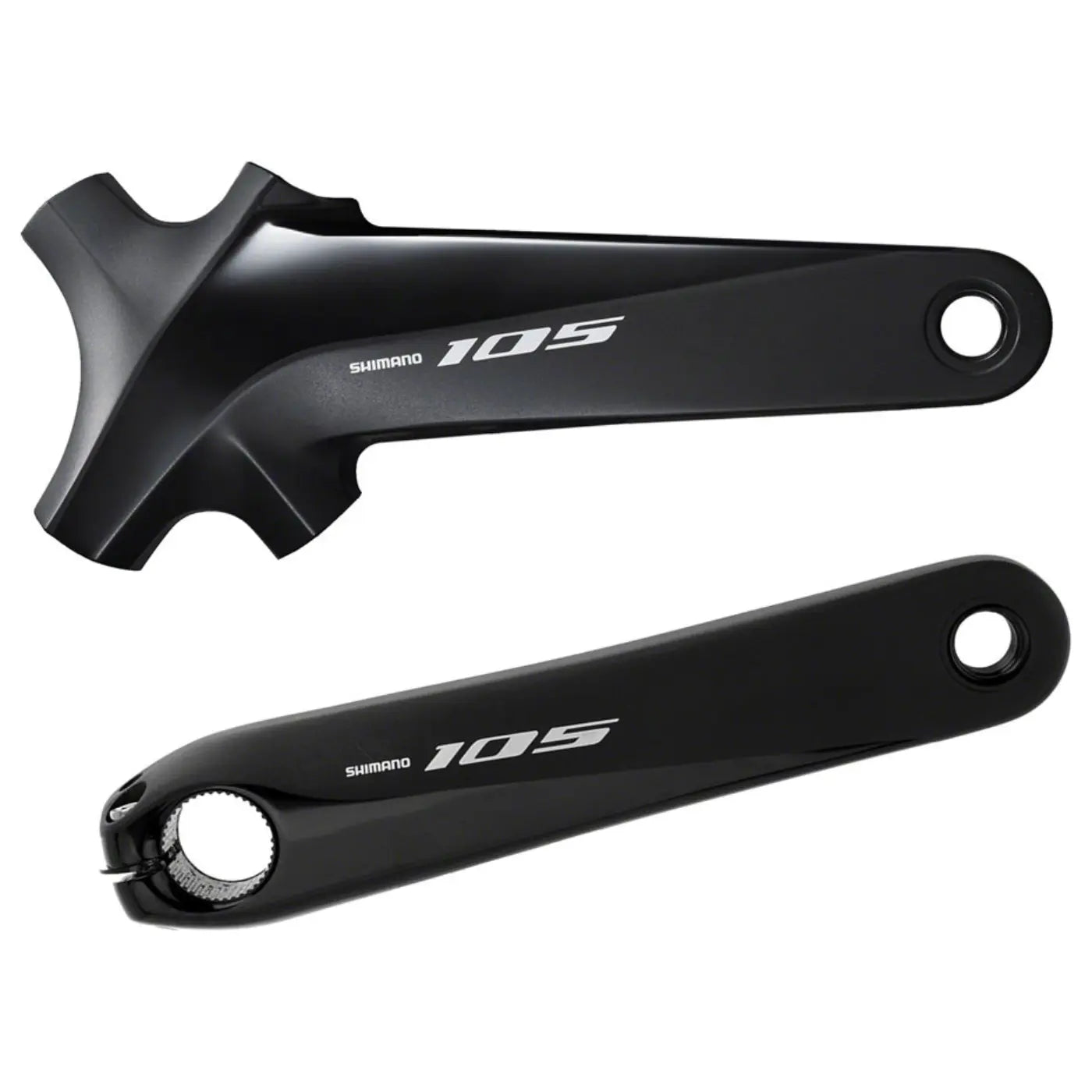

  • Includes: Crank arms only, no chainrings, no bottom bracket

FAQ

Does the FC-R7000 come with chainrings?

No. This crankset ships as crank arms only. You choose the 50/34, 52/36, or 53/39 chainring set separately, and the 110mm bolt circle accepts all three. A bottom bracket is also sold separately.

What bottom bracket does it use?

It uses a Hollowtech II external bottom bracket with a 24mm spindle. Shimano recommends the threaded SM-BBR60 or press-fit SM-BB72-41B depending on your frame's shell.

Which drivetrains is it compatible with?

It is a 2x11-speed road crank that runs HG-EV and HG-X11 11-speed chains and works across the mechanical 105, Ultegra, and Dura-Ace road families.

Best For

Riders speccing a custom 11-speed road build who want to choose their own gearing, and mechanics replacing crank arms on a 105, Ultegra, or Dura-Ace drivetrain.

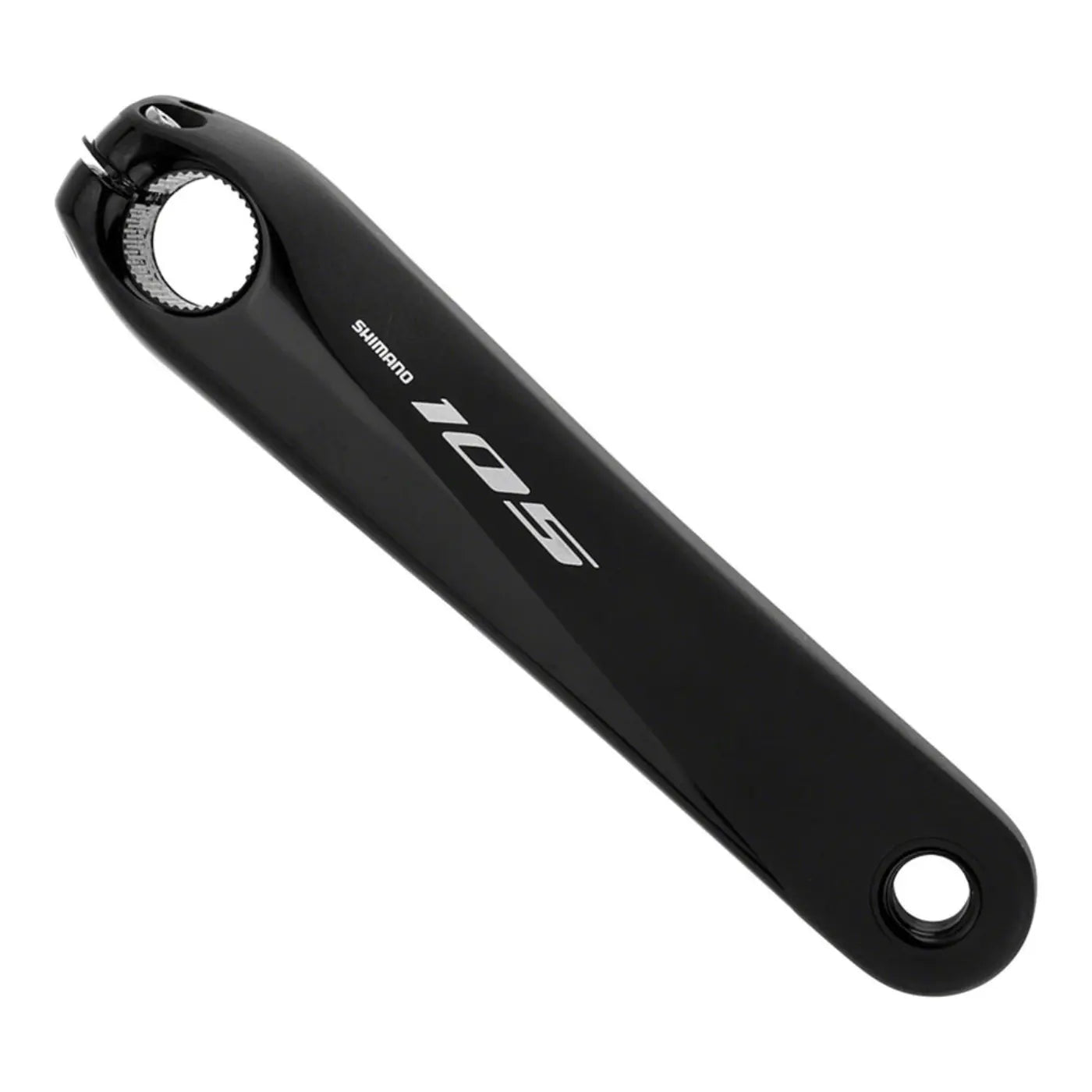

Shimano 105 FC-R7000 Crankset - 172.5mm | No Chainring Reviews:
