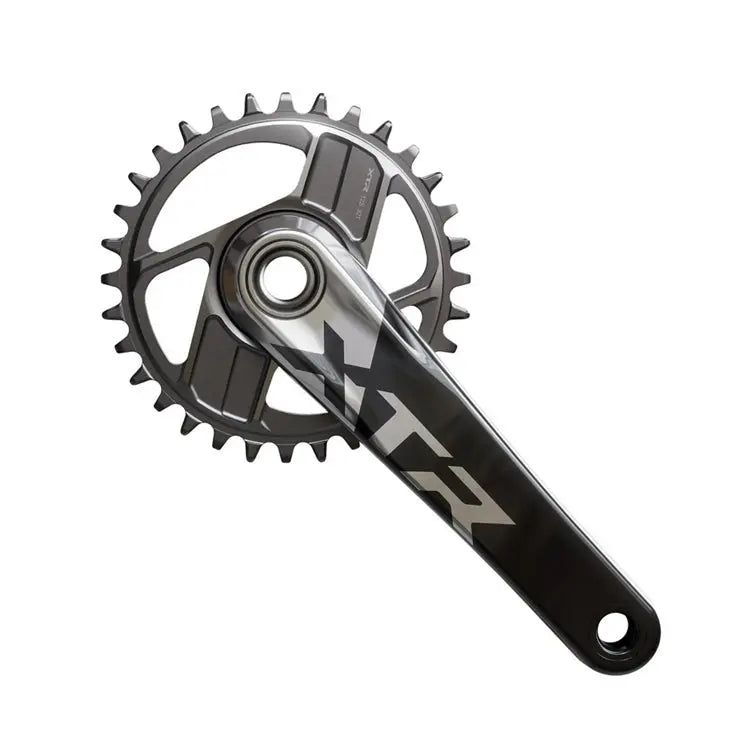

What makes the FC-M9220 the toughest XTR crank Shimano has built?

Shimano built the FC-M9220 for Enduro World Series abuse, and it shows in the details. A thicker enduro-specific steel spindle raises the bar for durability and big-hit survivability, while Hollowtech II forging keeps the arms stiff and light so your power goes into the ground instead of flexing away. This is the crankset that gets you through the rowdiest sections without flinching.

It runs a 176mm Q-factor for race-familiar ergonomics and a 55mm chainline for wide frame compatibility. The 24mm spindle works with Shimano threaded and Press Fit bottom brackets, and it is direct-mount for the SM-CRM96 ring in every size from 28T to 38T. This listing is for the crank arms only, so pick your length below and add a chainring and bottom bracket to complete the build.

]]>
Out of Stock
$310.00
$310.00
Shipping calculated at checkout.

Out of Stock

Crank Length: 170mm
  • Orders over $100 ship free!
  • Estimated delivery: Jul 29 - Aug 02

Ask a question

The fields marked * are required.

more details:

Shimano logo

Specifications

  • MPN (170mm): IFCM9220ACXX
  • Model: FC-M9220
  • Series: Shimano XTR M9200
  • Crank Arm Lengths: 160mm, 165mm, 170mm, 175mm
  • Speed: 12-speed
  • Q-Factor: 176 mm
  • Chainline: 55 mm
  • Spindle: 24 mm, enduro-specific thicker steel
  • Chainring Mount: Shimano Direct Mount (chainring sold separately)
  • Chain Compatibility: Shimano 12-speed HG+
  • Bottom Bracket Compatibility: Shimano threaded and Press Fit (recommended: SM-BB93 threaded, SM-BB94-41A press-fit, sold separately)
  • Technology: Hollowtech II
  • Included: Crank arms only, without chainring, without chainguard, without bottom bracket parts

FAQ

Does this crankset come with a chainring?

No. This is the crank arms only, without chainring, chainguard, or bottom bracket parts. It is direct-mount for the Shimano SM-CRM96 ring, available separately in sizes from 28T to 38T.

Which bottom bracket do I need?

The M9220 uses a 24 mm spindle and works with Shimano threaded and Press Fit bottom brackets. Shimano recommends the SM-BB93 for threaded frames and the SM-BB94-41A for press-fit frames. The bottom bracket is sold separately.

How do I choose a crank length?

It comes in 160, 165, 170, and 175mm. Shorter cranks give more ground clearance and a higher cadence feel, which many enduro and modern trail riders prefer, while longer cranks offer more leverage. Choose the length that matches your fit and riding style.

Best For

Enduro and aggressive trail riders building or upgrading a Shimano XTR M9200 drivetrain who want the strongest, most impact-ready XTR crank Shimano makes, with the freedom to pick their own chainring size and bottom bracket.
