Specifications

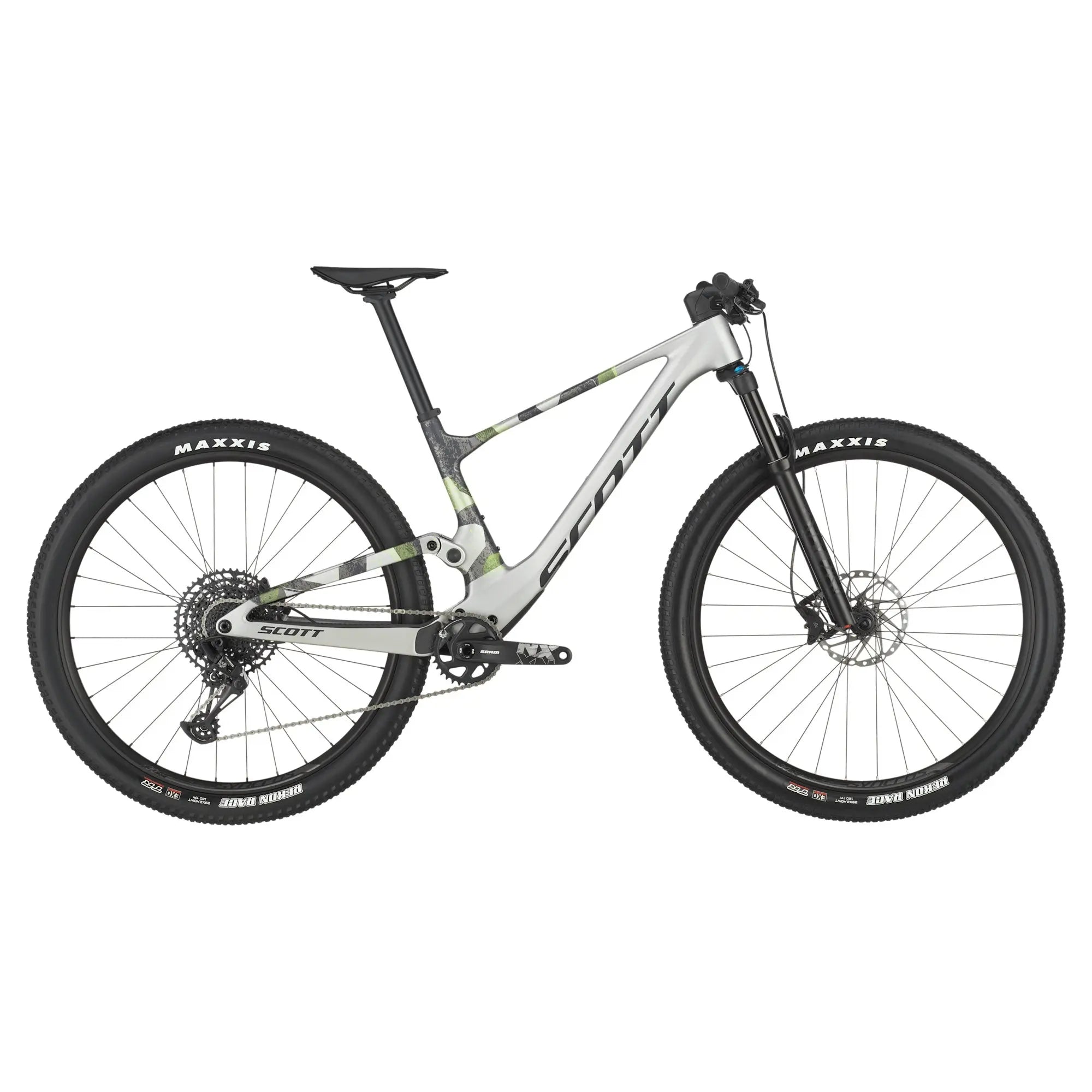

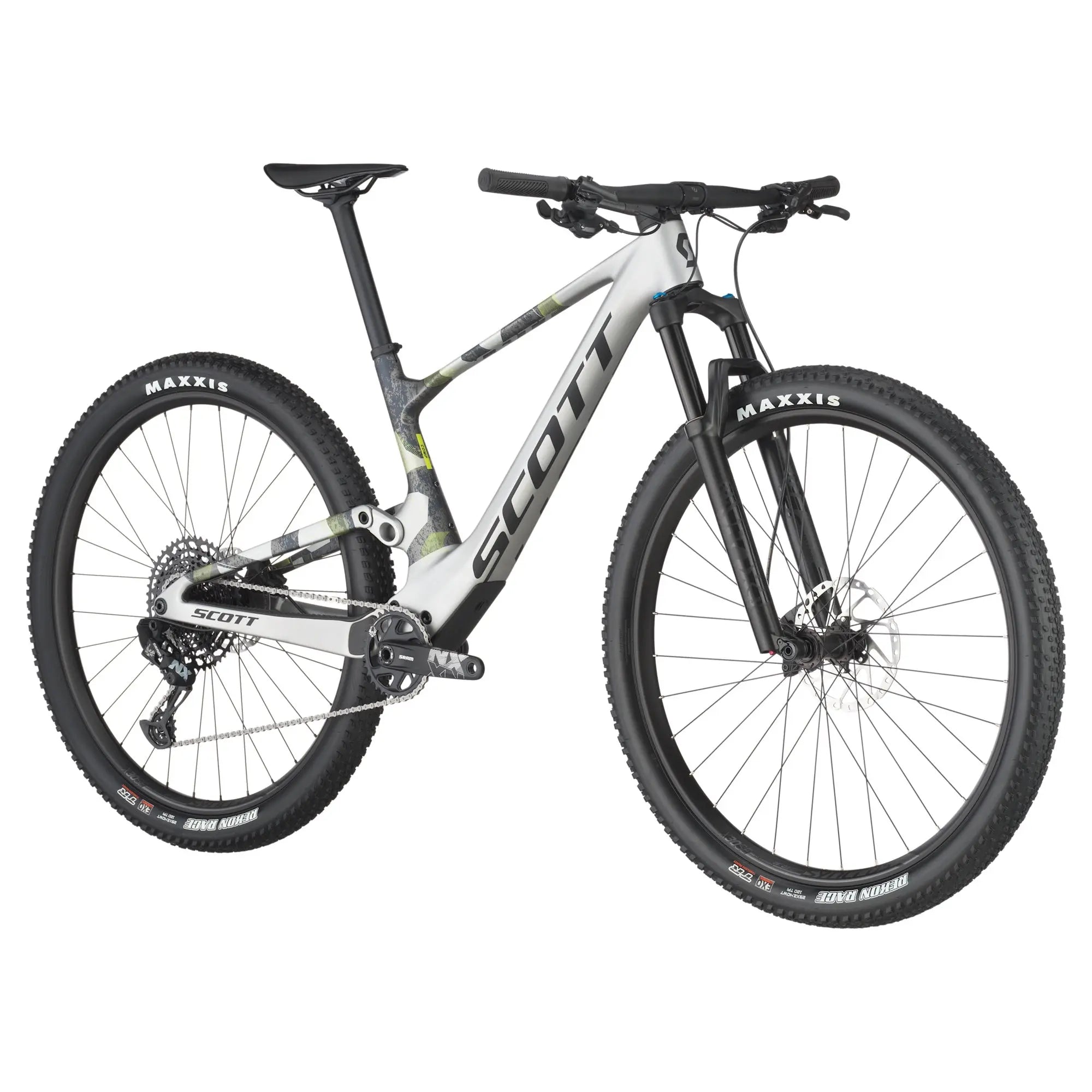

- Model: Scott Spark RC Comp Bike
- MPN: 423120
- Color: Ice Grey / Progressive Grey
- Sizes: S, M, L, XL
- Frame Material: Spark RC Carbon HMF
- Frame Features: Integrated Suspension Technology, Flex Pivot, Adjustable head angle, Syncros Cable Integration System, BB92, UDH, 12x148mm
- Fork: FOX 32 Float Rhythm Grip, 120mm
- Rear Shock: FOX Float LV Custom EVOL Trunnion, 120mm
- Travel: 120mm front and rear
- Wheel Size: 29 inch
- Discipline: Cross country
- Brake Type: Hydraulic disc
- Max System Weight: 128kg
- Approx Weight: 12.6kg tubeless setup
- Warranty: Scott limited warranty
- Availability: 1 in stock in size M, other sizes available for special order
Build Specs
- Frame: Spark RC Carbon HMF, Integrated Suspension Technology, Ice Grey / Progressive Grey
- Fork: FOX 32 Float Rhythm Grip, 120mm, 3-mode, Kabolt 15x110mm, 44mm offset
- Rear Shock: FOX Float LV Custom EVOL Performance Trunnion, 120mm, DPS, 3-mode, 165x45mm
- Remote: Scott TwinLoc, 3 suspension modes
- Shifters: SRAM NX Eagle Trigger, 12-speed
- Rear Derailleur: SRAM NX Eagle, 12-speed
- Cassette: SRAM SX PG-1230, 11-50T, 12-speed
- Chain: SRAM NX Eagle
- Crankset: SRAM NX Eagle DUB, 32T, 55mm chainline
- Bottom Bracket: SRAM DUB PF92 MTB Wide, 41x92mm
- Brakes: Shimano Deore M6100 hydraulic disc
- Brake Rotors: Shimano SM-RT64, Center Lock, 180mm front and 160mm rear
- Wheels: Syncros X-30SE, 32H, 30mm, tubeless ready, Formula hubs
- Tires: Maxxis Rekon Race 29x2.4, 60TPI foldable, tubeless ready, EXO, front and rear
- Seatpost: Syncros Duncan 2.0, 31.6mm, 10mm offset, 400mm
- Saddle: Syncros Belcarra Regular 2.0, CrMo rails
- Handlebar: Syncros Fraser 2.0 XC Alloy, flat, 8 degree, 740mm, with Syncros Performance XC lock-on grips
- Stem: Syncros XC 2.0, Cable Integration System, -12 degree rise, 31.8mm, 1-1/8 inch
- Headset: Syncros / Acros Angle Adjust, plus/minus 0.6 degree head angle, ZS56/28.6 - ZS56/40
Sizing Guide
- S: Rider height approx 5'3" to 5'6"
- M: Rider height approx 5'6" to 5'9"
- L: Rider height approx 5'9" to 6'1"
- XL: Rider height approx 6'1" to 6'4"
Sizing ranges are a starting point. Scott's Smartfit system and a professional fit are the best way to dial in size on a race bike.
Geometry
Values shown in size order: S / M / L / XL.
- Head Tube Angle: 67.2 degrees / 67.2 degrees / 67.2 degrees / 67.2 degrees
- Seat Tube Angle: 75.9 degrees / 76.1 degrees / 76.6 degrees / 76.9 degrees
- Reach: 411mm / 441mm / 471mm / 501mm
- Stack: 602.5mm / 602.5mm / 616mm / 625mm
- Top Tube (Horizontal): 562mm / 590mm / 614mm / 642mm
- Head Tube Length: 90mm / 90mm / 105mm / 115mm
- Chainstay: 437.5mm / 437.5mm / 437.5mm / 437.5mm
- Wheelbase: 1129mm / 1159mm / 1190mm / 1231mm
- Standover: 758mm / 765mm / 776mm / 799mm
- BB Height: 330mm / 330mm / 330mm / 330mm
- BB Offset: -45mm / -45mm / -45mm / -45mm
- Fork Length: 530mm / 530mm / 530mm / 530mm
- Trail: 115mm / 115mm / 115mm / 115mm
- Stem Length: 50mm / 60mm / 70mm / 80mm
- Max Seatpost Insertion: 150mm / 175mm / 225mm / 275mm
- Crank Length: 170mm / 170mm / 175mm / 175mm
FAQ
What is the Scott Spark RC Comp built for?
The Spark RC Comp is a cross country race bike built for XC racing, marathon riding, and fast trail days. It uses the same Spark RC Carbon HMF frame platform as Scott's higher-tier Sparks, with 120mm of travel front and rear and race-oriented geometry, paired with a value-focused build so more riders can get on the real frame.
What is TwinLoc and how does it work?
TwinLoc is Scott's handlebar remote that controls the fork and shock together as one system. A single lever cycles the suspension through three modes, descend for full travel, traction for a firmer mid-support setting with less sag, and lockout for the most efficient climbing. It lets you match the suspension to the terrain without stopping.
Can I adjust the head angle?
Yes. The Spark RC frame uses an adjustable headset that lets you change the head angle by 0.6 degrees slacker or steeper. It is done by rotating the headset cups 180 degrees, with no need to cut cables or bleed brakes.
What sizes does the Spark RC Comp come in, and what is in stock?
The Spark RC Comp comes in S, M, L, and XL. This listing has size M in stock and ready to ride now. The other sizes are available for special order, so reach out to the shop and we will get your size on the way.
Best For
The cross country racer and fast trail rider who wants a genuine World Cup frame platform without the flagship price. The Spark RC Comp is at home on XC race courses, marathon events, and technical singletrack where a light, efficient full suspension bike with TwinLoc control and 120mm of travel keeps you fast on the climbs and confident on the descents.
