Specifications
- Model: Factor ONE - Onyx Black | SRAM RED
- Color: Onyx Black
- Sizes: 47, 52, 54, 56, 58
- Frame Material: TeXtreme, Toray, Nippon Graphite pitch-based carbon fiber
- Fork: ONE Wide Stance Fork
- Discipline: Aero road
- Bottom Bracket: CeramicSpeed T47A aluminium cups
- Cable Routing: Internal
- Brake Type: Disc
- Max Rotor Size: 160mm front and rear
- Max Chainring: 54-tooth
- Front Axle: 12 x 100mm thru-axle
- Rear Axle: 12 x 142mm thru-axle
- Max Tire Clearance: 34mm measured
- Head Tube Diameter: 1-1/8 inch upper and lower
- Warranty: Limited Lifetime Warranty
Build Specs
- Frame: Factor ONE, TeXtreme pitch-based carbon, Onyx Black
- Fork: Factor ONE Wide Stance Fork
- Shifters: SRAM RED eTap AXS wireless
- Rear Derailleur: SRAM RED eTap AXS
- Front Derailleur: SRAM RED eTap AXS
- Cassette: SRAM RED, 10-33T, 12-speed
- Chain: SRAM RED Flattop
- Crankset: SRAM RED w/ Power Meter, 48/35T, 165mm
- Bottom Bracket: CeramicSpeed T47A
- Brakes: SRAM RED eTap AXS hydraulic disc
- Brake Rotors: SRAM Paceline, 160mm front and 160mm rear
- Wheels: Black Inc SIXTY TWO carbon, 12x100 front / 12x142 rear
- Tires: 700c, up to 34mm measured clearance
- Seatpost: Factor ONE D-shaped, 0mm setback
- Cockpit: Factor Integrated Barstem, 380mm width, 80mm reach, 120mm drop
- Bar Tape: Factor
- Accessories: Black Inc aero integrated bottle cages, computer mount
Sizing Guide
- 47: Rider height approx 5'0" to 5'4"
- 52: Rider height approx 5'4" to 5'7"
- 54: Rider height approx 5'7" to 5'9"
- 56: Rider height approx 5'9" to 6'1"
- 58: Rider height approx 6'1" to 6'4"
Sizing ranges are a starting point. For a precise fit, a professional bike fit is strongly recommended on a bike of this caliber.
Geometry
Values shown in size order: 47 / 52 / 54 / 56 / 58.
- Stack: 503mm / 523mm / 542mm / 565mm / 587mm
- Reach: 390mm / 396mm / 404mm / 412mm / 421mm
- Head Tube Angle: 72.5 degrees / 73.3 degrees / 73.3 degrees / 73.3 degrees / 73.3 degrees
- Seat Tube Angle: 76.5 degrees / 76 degrees / 76 degrees / 75.5 degrees / 75.5 degrees
- BB Drop: 77mm / 77mm / 75mm / 75mm / 75mm
- Chainstay: 405mm / 405mm / 405mm / 405mm / 408mm
- Wheelbase: 974mm / 974mm / 988mm / 1003mm / 1022mm
- Fork Rake/Offset: 48mm / 43mm / 43mm / 43mm / 43mm
- Trail: 57.4mm / 58mm / 58mm / 58mm / 58mm
FAQ
What is the Factor ONE built for?
The Factor ONE is Factor's flagship aero road race platform, built to be the fastest UCI-legal road bike the brand has produced. It is designed for the modern race position, with geometry that supports a forward saddle, shorter cranks, and narrow bars while keeping handling stable at high speed. This build races on SRAM RED eTap AXS with a power meter and Black Inc SIXTY TWO carbon wheels.
Is this bike compatible with mechanical drivetrains?
No. The ONE is designed exclusively for electronic groupsets. The fully internal routing and integrated cockpit do not accommodate mechanical shift cables. This build uses SRAM RED eTap AXS wireless shifting.
What is the maximum tire clearance?
Factor rates the ONE frame and fork for up to 34mm measured tire width, based on a 28mm nominal tire on a 23mm internal-width rim.

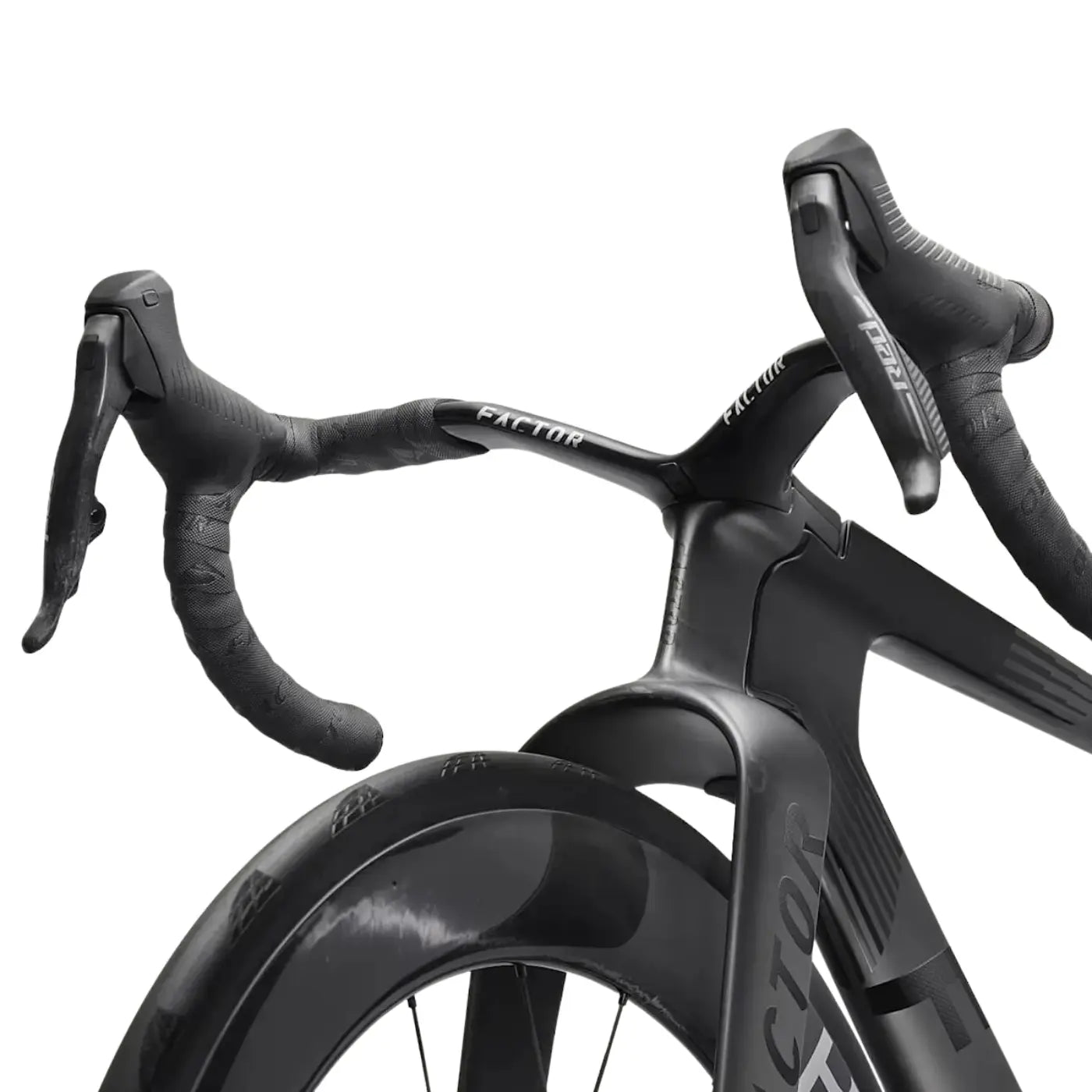

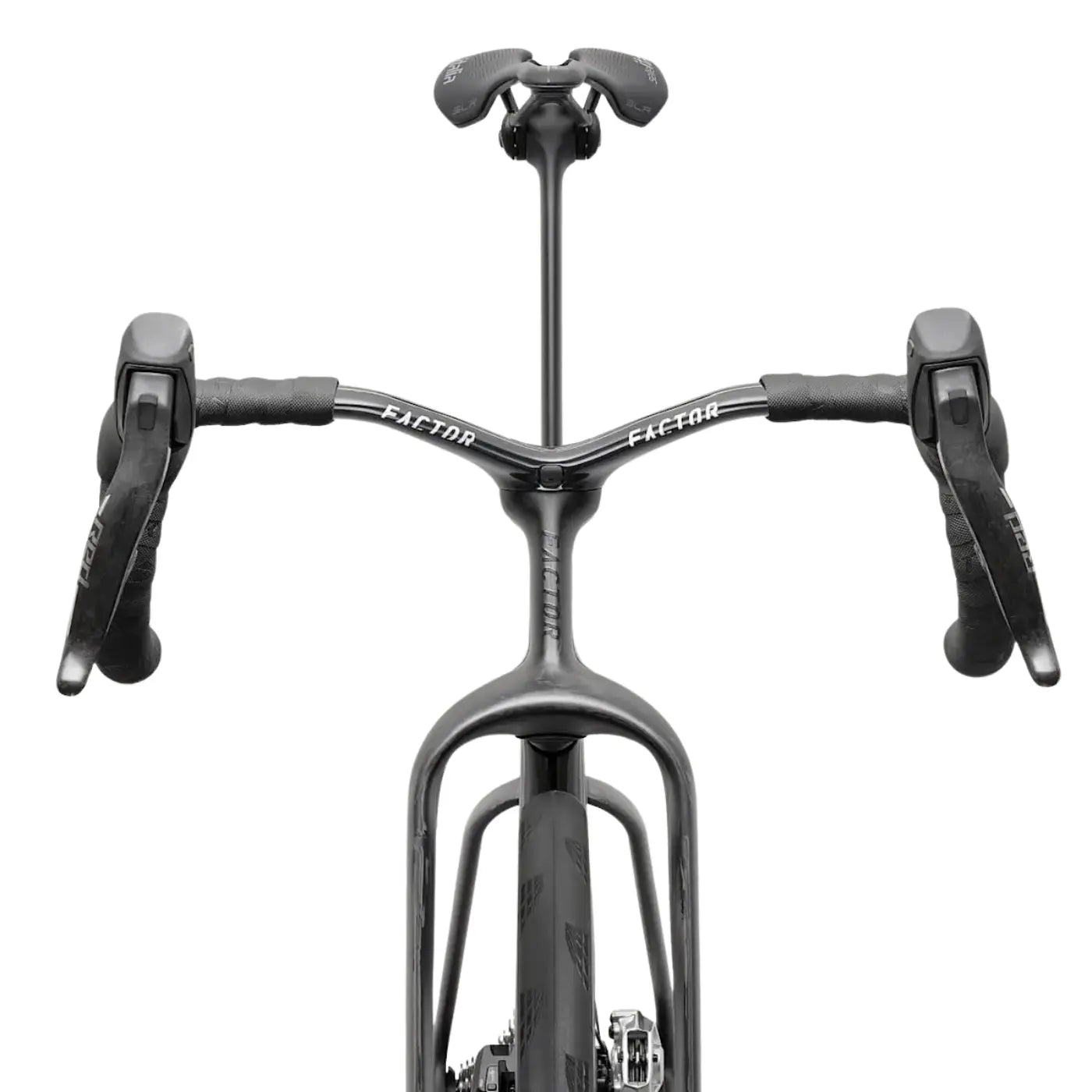

How does the ONE cockpit work without a stem?
The ONE uses an integrated barstem system numbered 1 through 5 that maps to stem equivalents of 110 through 150mm, with high-rise options adding 20mm of stack. All handlebars are 380mm wide. Up to 15mm of spacers plus the rise options give a 35mm shifter stack range, letting a fitter dial in reach without an unstable long stem.
Can I customize this build?
Yes. This bike is in stock as built in size 56, and the whole build is fully customizable. Crank length, seatpost setback, barstem size, cassette ratios, and wheel choice can be adjusted to dial in your fit. Reach out to the shop to discuss options and other sizes.
Best For
The racer who wants outright aero speed with a fit built for how road racing is ridden today. The ONE in Onyx Black with SRAM RED, a power meter, and Black Inc SIXTY TWO wheels is at home in the finishing sprint, on the front of a fast group, and on flat-to-rolling road stages where holding speed matters most. Built for the rider who cares about every watt saved and wants the fastest UCI-legal bike Factor makes.
