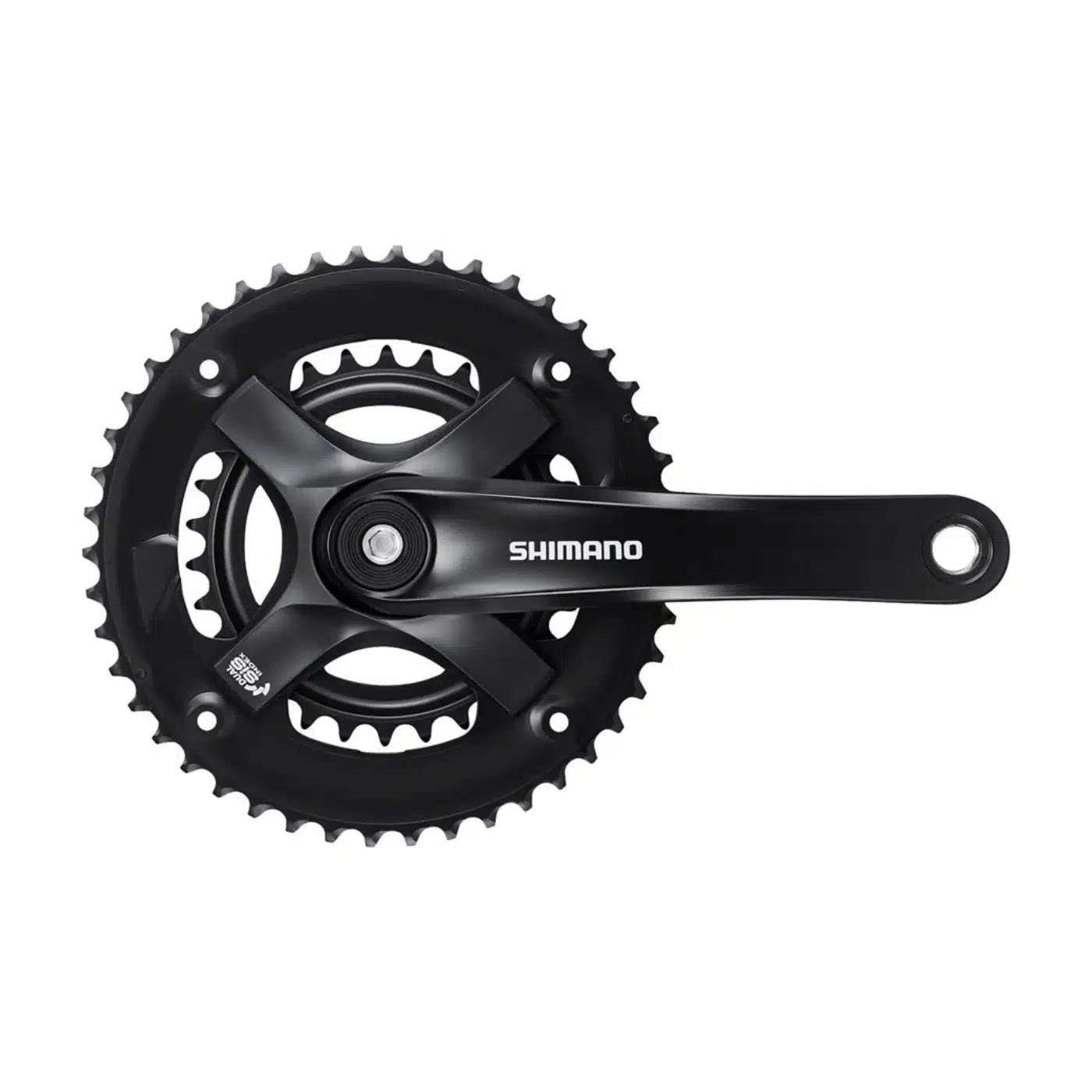

Shimano Tourney FC-TY501-2 Crankset - 175mm | 7/8-Speed | 46/30t | Square Taper

Shimano FC-TY-501-2 Crankset - 175mm | 7/8-Speed | 46-30t Shimano

Shimano Tourney FC-TY501-2 Crankset - 175mm | 7/8-Speed | 46/30t | Square Taper

Shimano Tourney FC-TY501-2 Crankset - 175mm | 7/8-Speed | 46/30t | Square Taper

Shimano logo

What Makes the Shimano Tourney FC-TY501-2 a Reliable 2x Crankset?

The Shimano Tourney FC-TY501-2 is a 2x7/8-speed crankset built for entry-level MTB, commuter, and hybrid bikes that need dependable gearing at an accessible price point. Aluminum crank arms keep the weight reasonable while the riveted steel SG-X 46/30t chainrings deliver the durability that everyday use demands -- steel rings outlast aluminum significantly under daily chain friction, making this a practical choice for high-mileage commuter and recreational builds. Dual SIS-compatible chainring profiling with shift ramps and pins delivers smooth, predictable front shifts across the wide 46/30t range, from flat-out speed on the large ring to comfortable climbing on the small ring.

Mounts to a square taper JIS bottom bracket -- sold separately, check your frame for 68mm or 73mm shell width. Chainrings are riveted and not individually replaceable. Compatible with 135/142mm rear hub spacing and 7- and 8-speed Shimano components. MPN: EFCTY5012C60XLB.

Sale
$25.99
$25.99 $30.00
Shipping calculated at checkout.

1 in stock

  • Orders over $100 ship free!
  • Estimated delivery: Jul 19 - Jul 23

Ask a question

The fields marked * are required.

more details:

Shimano logo

Specifications

  • MPN: EFCTY5012C60XLB
  • Arm Length: 175mm
  • Chainrings: 46/30t (steel SG-X, riveted)
  • Speed: 7/8-speed
  • Interface: Square Taper JIS
  • Chainline: 48.8mm
  • Q-Factor: 185.5mm
  • Arm Material: Aluminum
  • Chainring Material: Steel (riveted, not individually replaceable)
  • Hub Compatibility: 135/142mm MTB
  • BB: Not included (square taper JIS required, 68/73mm shell)

FAQ

Does a bottom bracket come included?

No. A separate square taper JIS bottom bracket is required. Check your frame's BB shell width -- typically 68mm for road and commuter, 73mm for MTB -- to select the correct BB and spindle length.

Can the chainrings be replaced individually?

No. The chainrings on the FC-TY501-2 are riveted in place and are not individually replaceable. When the rings are worn, the full crankset needs to be replaced.

Is this compatible with freewheels as well as cassettes?

Yes. The FC-TY501-2 works with both Shimano 7- and 8-speed cassette drivetrains and freewheel-based setups using the same speed range.

Best For

Entry-level MTB riders and commuters running 7 or 8-speed drivetrains who need a reliable 2x crankset with wide-range steel chainrings and square taper JIS interface at an accessible price.
