When should you replace your SRAM chain?

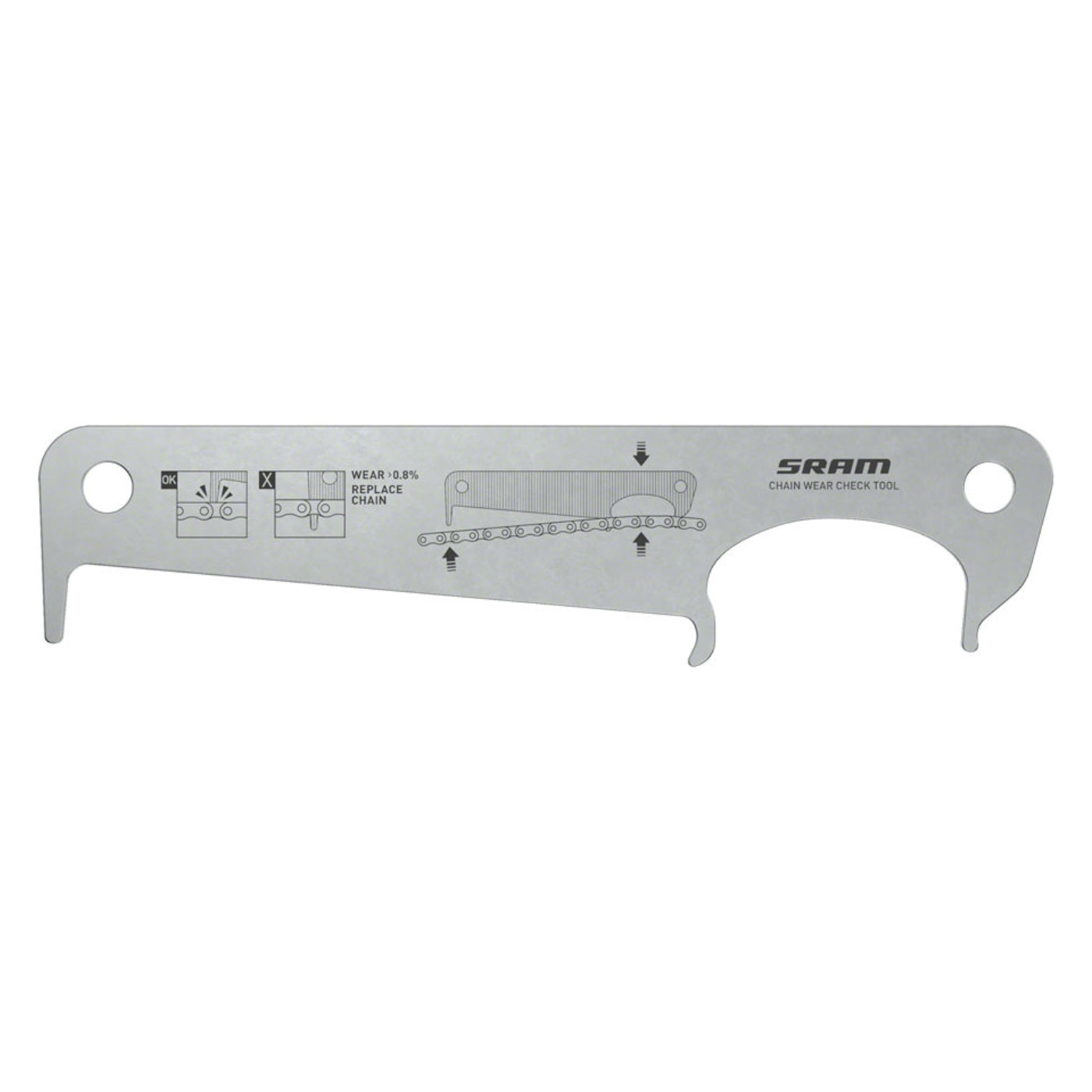

The SRAM Chain Wear Check Tool removes the guesswork from drivetrain maintenance by measuring chain elongation with a calibrated go/no-go gauge. What riders commonly call chain stretch is the cumulative wear of internal pins and bushings, which gradually increases the effective pitch of the chain beyond the standard 0.5" specification. This tool is calibrated to SRAM's 0.8% elongation threshold, the established replacement point for all current SRAM chains including both standard and Hard Chrome variants, giving you a clear, immediate result without requiring measurement interpretation.

Compatible across all SRAM chain platforms from single-speed through 12-speed Eagle and Flattop road chains. Drop the tool into the chain at two contact points: if it seats fully, the chain is at or beyond the replacement threshold; if it does not seat fully, service life remains. Build this check into every 250 to 500-mile service interval, with more frequent checks in wet or muddy conditions where contamination accelerates wear significantly. Catching a worn chain before it transfers load damage to cassette cogs and chainring teeth is the single most cost-effective drivetrain maintenance habit you can build.

$40.00
$40.00
Shipping calculated at checkout.

4 in stock

  • Orders over $100 ship free!
  • Estimated delivery: Jul 19 - Jul 23

Ask a question

The fields marked * are required.

more details:

SRAM logo

Specifications

  • Compatibility: All SRAM chains, single-speed through 12-speed Eagle, Flattop, and XPLR
  • Wear Threshold: 0.8% chain elongation
  • Gauge Type: Go/no-go, no measurement interpretation required
  • Result Indicator: Fully seated = replace; not fully seated = service life remains
  • Recommended Check Interval: Every 250 to 500 miles, more frequently in wet or dirty conditions

FAQ

How does the chain wear tool actually work?

The tool drops into two contact points along the chain. If it seats fully, the chain has reached or exceeded SRAM's 0.8% elongation threshold and should be replaced. If it does not seat fully, service life remains. No measuring tools or interpretation required.

How often should I check my chain for wear?

Every 250 to 500 miles under normal dry conditions. In wet, muddy, or dusty riding environments, check more frequently. Contamination accelerates internal pin and bushing wear considerably, and chains can reach the replacement threshold well before the upper end of that mileage range.

What happens if I keep riding on a worn chain?

A chain beyond 0.8% elongation accelerates cassette cog and chainring tooth wear. Running it long enough causes skipping under load, poor shifting, and tooth wear severe enough that you end up replacing both the chain and cassette at the same time rather than just the chain.

Best For

Cyclists who want to protect drivetrain components by catching chain wear before it damages cassettes and chainrings. The highest-return maintenance tool available for any bike regardless of drivetrain level.
