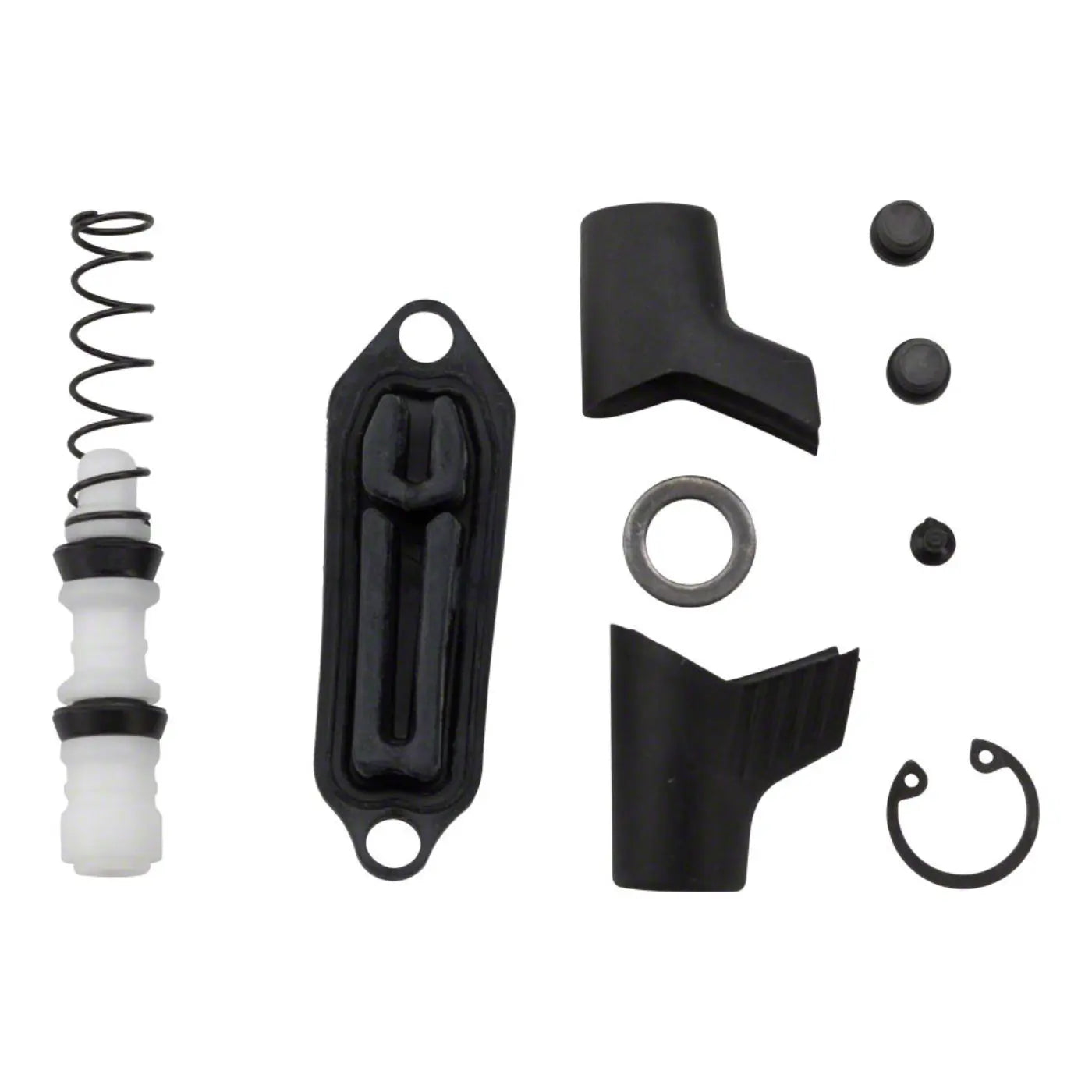

SRAM Disc Brake Lever Internals Version 2 - Guide R | Guide RE | DB 5 | Code R

SRAM Disc Brake Lever Internals Version 2 - Guide R | Guide RE | DB 5 | Code R SRAM

SRAM Disc Brake Lever Internals Version 2 - Guide R | Guide RE | DB 5 | Code R

SRAM Disc Brake Lever Internals Version 2 - Guide R | Guide RE | DB 5 | Code R

SRAM logo

What does the SRAM Lever Internals V2 fix on Guide R/RE/DB 5/Code R?

SRAM Disc Brake Lever Internals Version 2 for Guide R, Guide RE, DB 5, and Code R is the correct service kit for rebuilding the hydraulic internals of these widely-used SRAM MTB lever bodies. Guide R and Guide RE are the entry and mid-level versions of SRAM's Guide brake family; DB 5 and Code R round out this group with a shared internal geometry. When a lever on any of these models develops spongy feel, inconsistent travel, or requires more frequent bleeding than normal to maintain performance, internal seal and component wear is typically the cause. This kit replaces worn components with OEM-spec parts, restoring original lever feel and hydraulic function without replacing the entire lever assembly — which is almost always the more economical and correct service approach for a lever with a sound body.

This kit is Version 2 and is specific to Guide R, Guide RE, DB 5, and Code R — not interchangeable with Guide RSC, Guide Ultimate, Code RSC, Level Ultimate, Level TLM, or Level TL, which use different internal kits. Confirm your lever model before ordering. The rebuild requires a complete DOT hydraulic bleed after installation — this kit contains internal components only, not fluid or bleed tools. For mechanics who regularly service these brake families, stocking this kit alongside the Guide RSC internals kit covers the majority of SRAM trail brake service needs. Pair with SRAM's Pro DOT bleed kit and DOT 5.1 fluid for a complete service.

Sale
$27.99
$27.99 $30.00
Shipping calculated at checkout.

2 in stock

  • Orders over $100 ship free!
  • Estimated delivery: Mar 18 - Mar 22

Ask a question

The fields marked * are required.

more details:

SRAM logo

Specifications

  • Version: Version 2
  • Compatibility: Guide R, Guide RE, DB 5, Code R
  • Fluid Type: DOT (bleed required after installation)
  • Function: Lever body internal seal and component replacement
  • Kit Type: OEM service components

FAQ

How do I know if my brake needs lever internals vs. just a bleed?

If bleeding the brake restores firm lever feel for a short period but performance degrades quickly, or if the lever feels inconsistent or spongy even immediately after a fresh bleed with no air in the system, internal seal wear is the likely cause. A bleed addresses fluid; lever internals address the mechanical components that hold and control that fluid.

Is a Guide R internals kit the same as a Guide RSC internals kit?

No. Guide R, Guide RE, DB 5, and Code R use this Version 2 kit. Guide RSC, Guide Ultimate, and Code RSC use a different internals kit due to the additional adjustability mechanisms in those lever bodies. Always verify your exact lever model before ordering to ensure correct kit selection.

Can I install lever internals at home or does it require a shop?

The installation can be done at home by a mechanically capable rider with the correct tools and bleed equipment. SRAM provides service documentation for lever internals replacement. A torque wrench, DOT bleed kit, and careful attention to the correct procedure are essential. If you are not comfortable with hydraulic brake service, a bike shop service visit is recommended.

Best For

Riders and mechanics servicing Guide R, Guide RE, DB 5, or Code R brakes with lever feel that has degraded and cannot be fully restored by bleeding alone.
