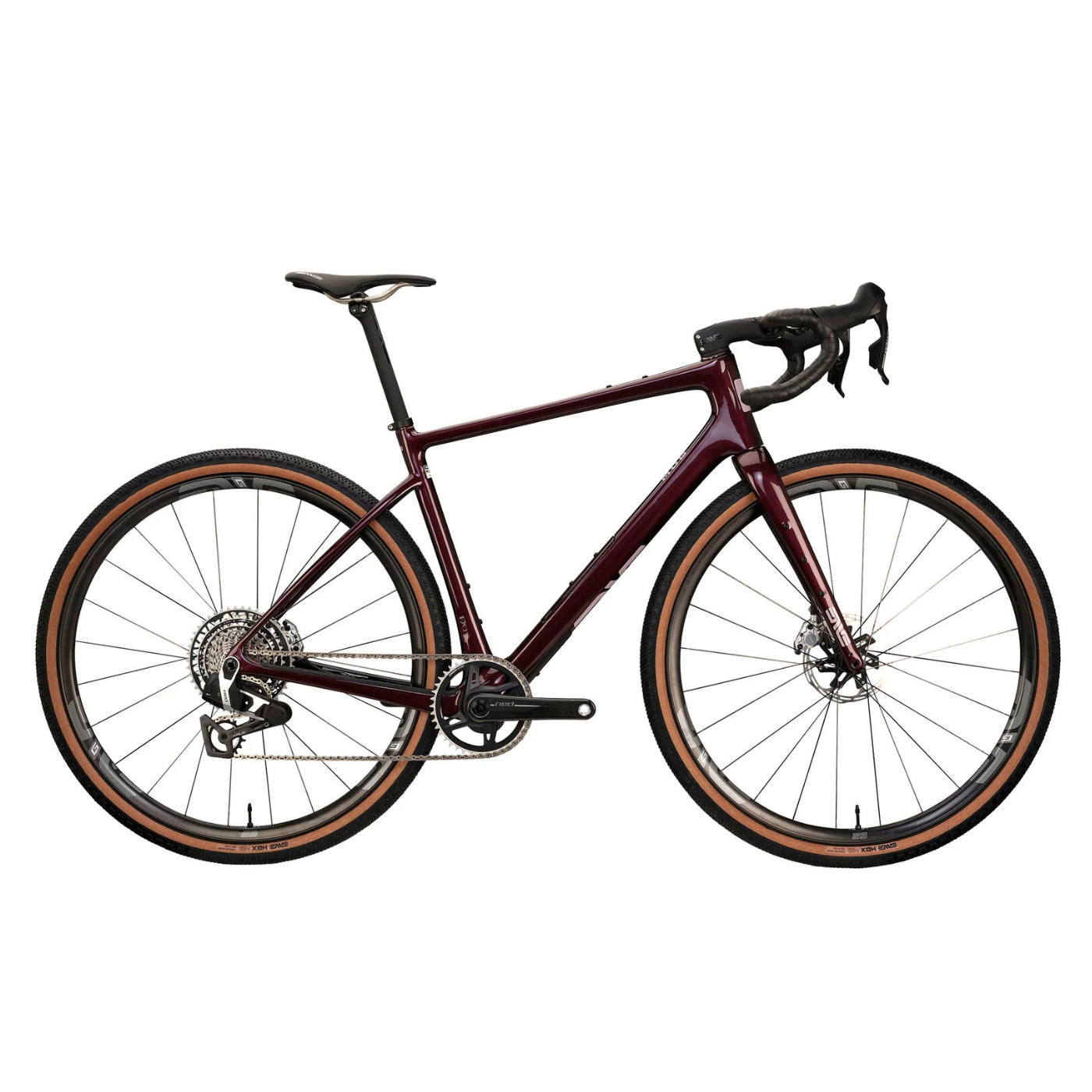

ENVE Mog Frameset - Hollyhock Purple | 58cm

Hidden hoses and wires are the name of the game when it comes to the modern bicycle and the expectations of the rider. ENVE's IN-Route System is designed to hide hoses and wires from the wind, improving the bike's aero performance with a practical and user-friendly solution. This doesn't come at the expense of limiting drivetrain options - The Road IN-Route fork is compatible with most drivetrain brands, models, and configurations on the market.

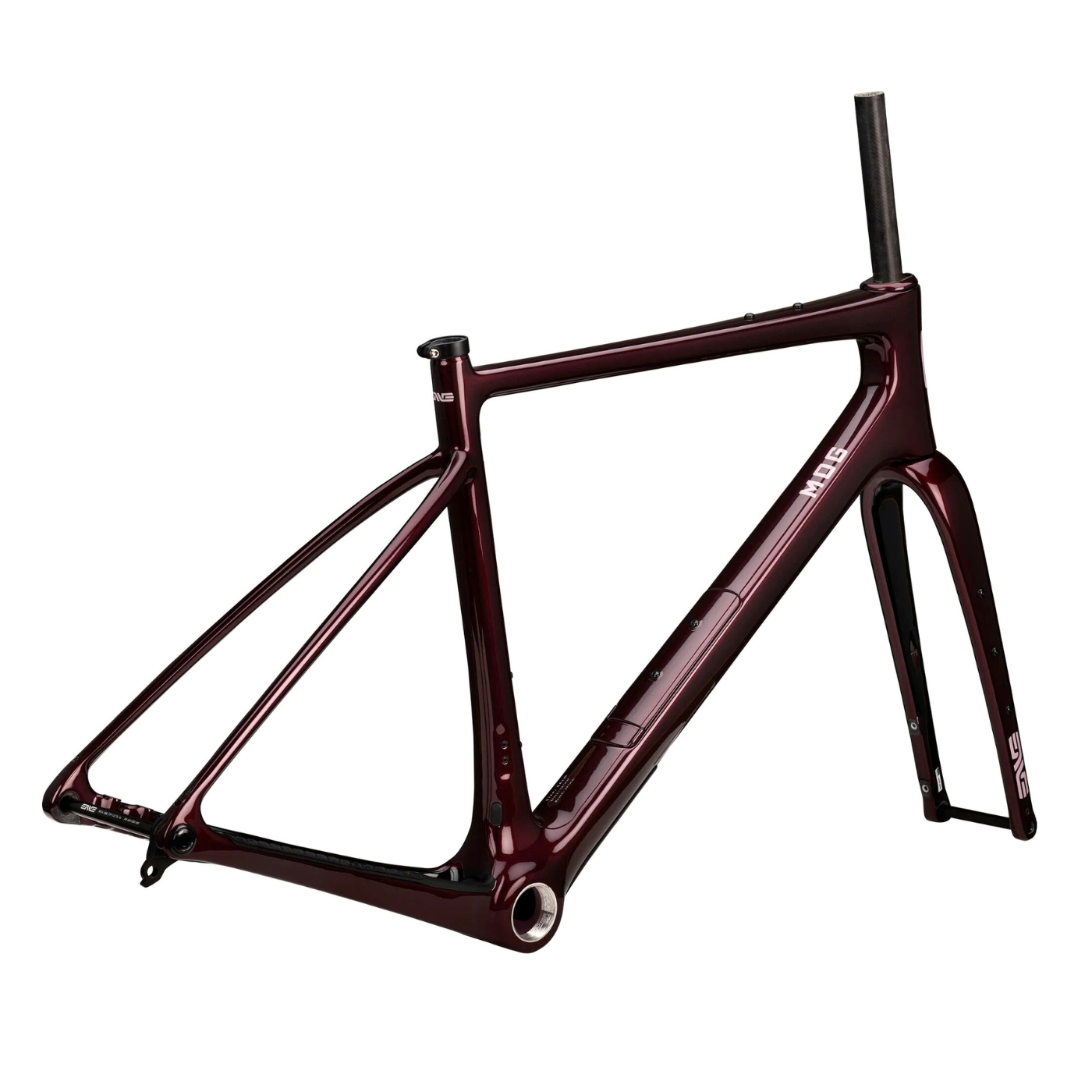

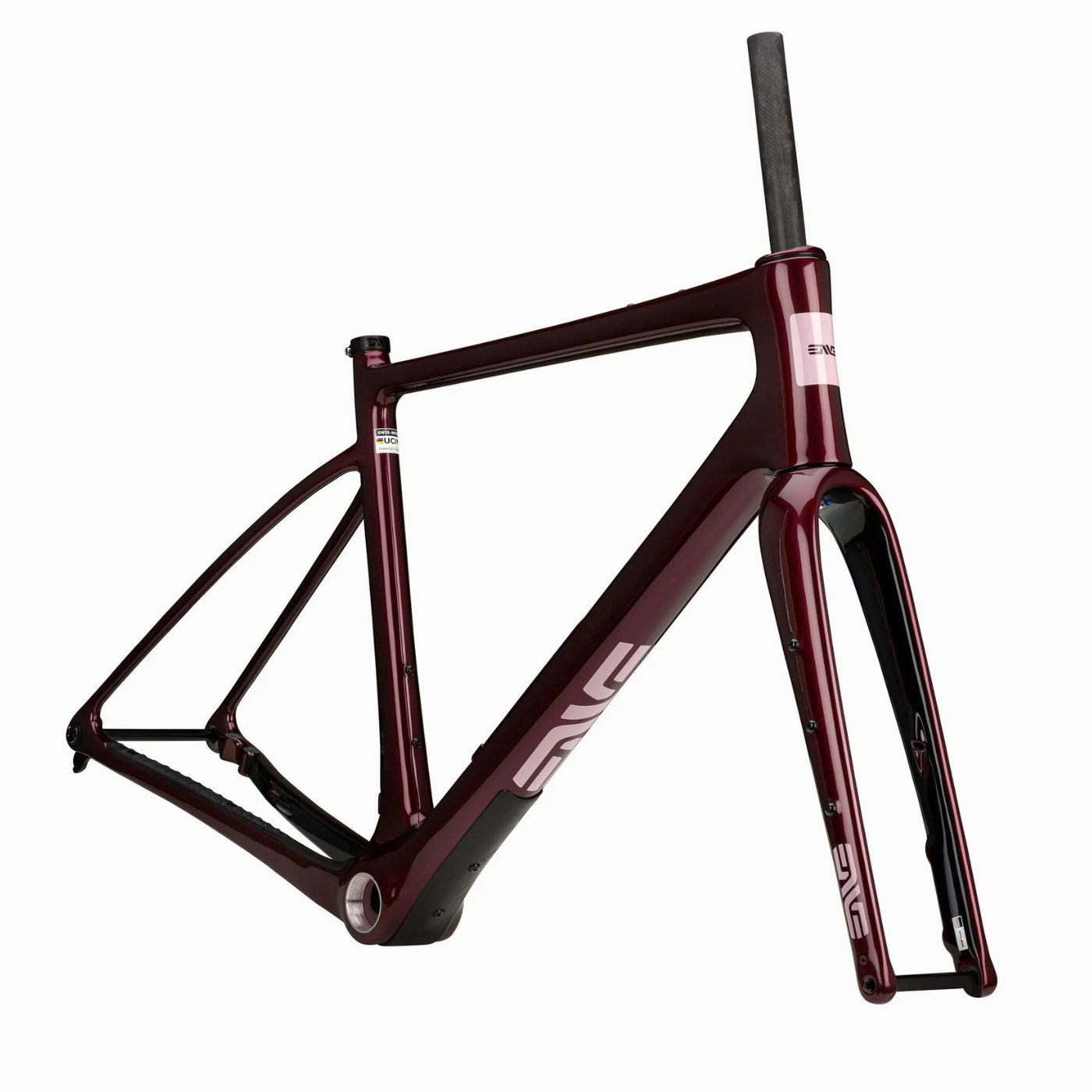

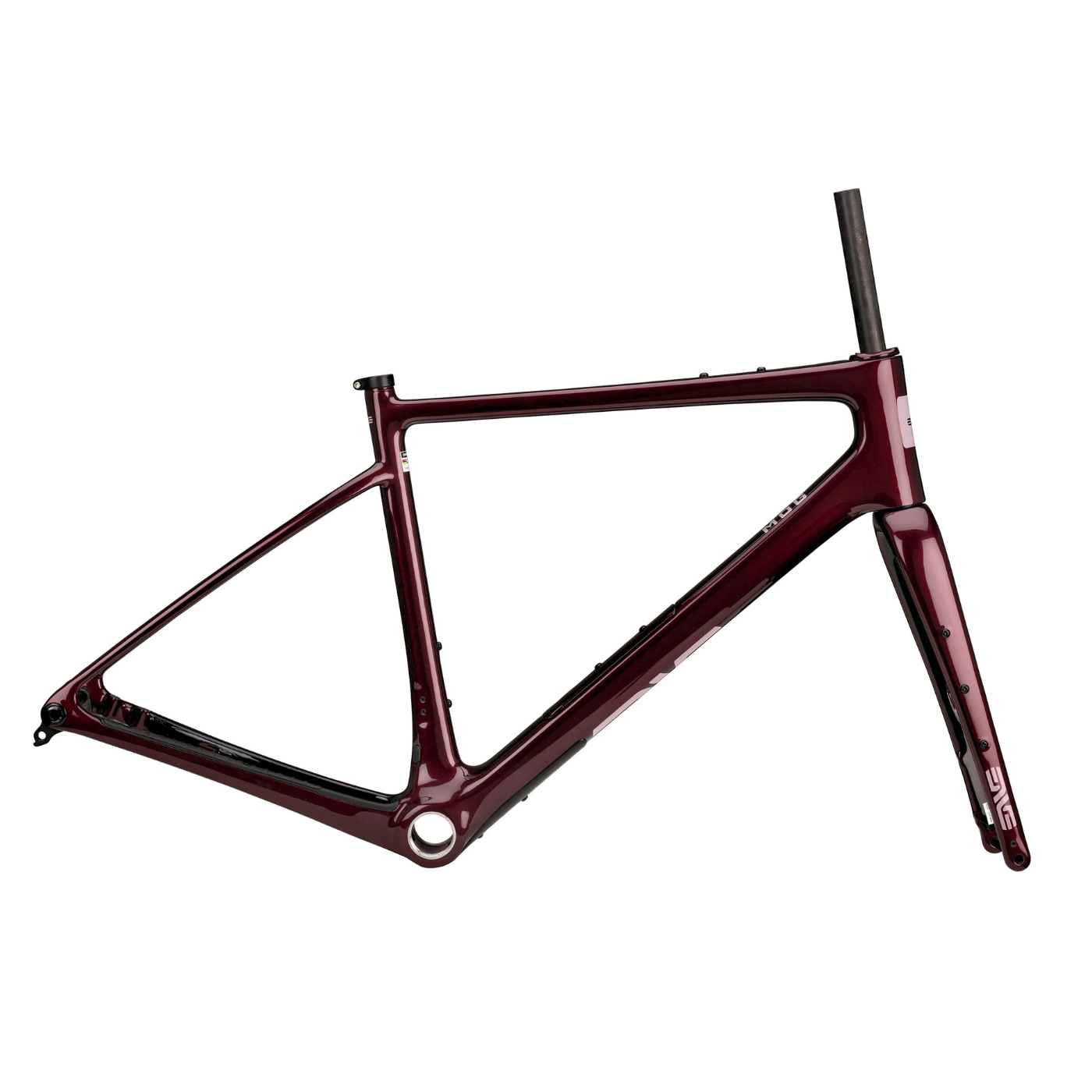

Enve Mog Frameset (Frame and Fork) – Hollyhock Purple | 58cm

Full of capability and overflowing with versatility, the MOG delivers a world of possibilities ranging from adventure to race, and everything between. With abundant tire clearance, storage solutions, and performance geometry, the MOG has it all, and more.

Ride Tuned

Through three fork rakes and six sizes we’ve created a sizing span to accommodate the smallest and largest of riders while ensuring that, regardless of size, the MOG will deliver the same level of responsive, confidence-inspiring handling.

Details:

• Elite off-road machine for gravel racing, riding, and exploring
• Frame weight: 950 grams (56cm, painted, no hardware)
• Optimized for modern gravel handling with a road-like geometry
• Features fully integrated internal wire, hose, and dropper routing
• Includes two in-frame downtube storage bags to hold spares, tools, and more
• Designed for 700c x 40-44mm tires with a max clearance of 50mm

Compatibility:

• Compatible with fenders and 1x drivetrain dropper posts
• 2X Shimano GRX double cranks (47mm chainline).
• All currently available Shimano GRX double chainring combinations are compatible.
• Using a Shimano GRX front derailleur limits the tire size to a max of 47mm according to Shimano’s spec.
• 2X SRAM WIDE double cranks (47.5mm chainline).
• All currently available SRAM WIDE double chainring combinations are compatible.
• Using a SRAM WIDE front derailleur limits the tire size to a max of 45mm according to SRAM’s spec.
• *Standard road double cranks WILL NOT fit.
• 1X Max 44T for 44.5-45.5 chainline (SRAM 1x Cranks w/ typical aftermarket direct mount chainrings.
• 1X Max 50T for 47+ Chainline (Shimano GRX, SRAM 1X WIDE).
• 1x Ekar has a 45.5-46.5 chainline and cranks that are offered with 38-44T options will fit MOG.
• *Older SRAM Force 1 (or similar) 5-bolt cranks will NOT clear with the stock bolt spacers on the backside of the chaining spider. These cranks are compatible if the stock ring and spider is swapped for a direct-mount ring.

Specs:

• Head Tube Diameter – 1 1/8in
• Headset Included – ENVE Integrated IS52/IS52 Internal Drop-In
• Bottom Bracket Type – T47 inboard bearing
• Cable Routing – Internal
• Front Derailleur Mount – Braze-on
• Brake Type – flat-mount, disc
• Handlebar – ENVE Gravel, ENVE SES AR, ENVE SES AR One-Piece, or ENVE Compact (not included)
• Stem – In-Route Aero or In-Route High Rise Stem (not included)
• Seatpost – ENVE G series dropper or ENVE Seatpost (not included)
• Seatpost Diameter – 27.2mm
• Seat Collar – 12 x 100mm Thru-axle
• Front Axle – 12 x 142mm Thru-axle
• Rear Axle – 700 x 35 – 44mm
• Tire Clearance – 700 x 50c
• Extras – Downtube protector, 2 Cargo Bay storage bags
• Includes – Universal Derailleur Hanger
• Claimed Weight[size 56] 950g
• Activity – Gravel
• Manufacturer Warranty – 5 years

MPN: 100-5004-458
