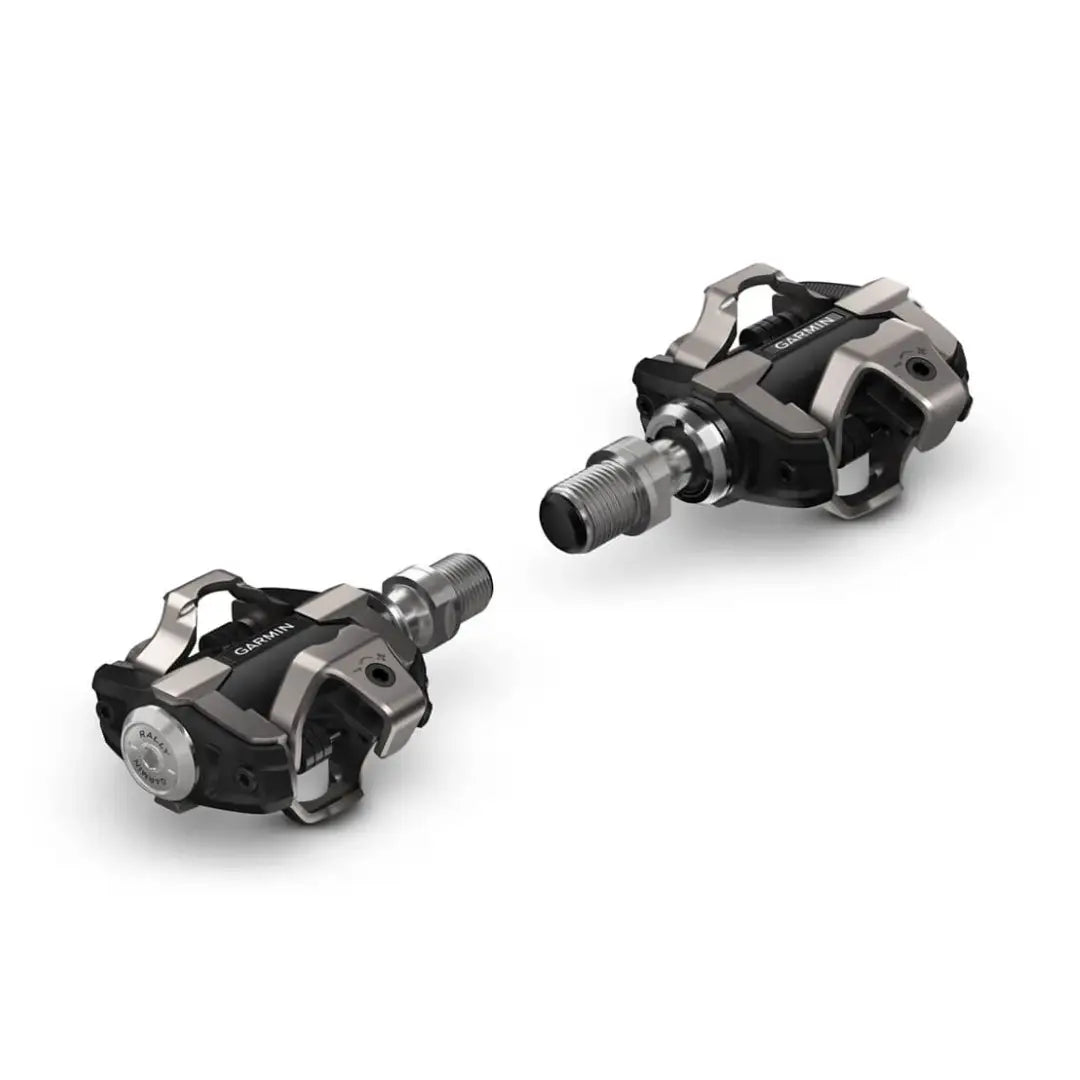

Garmin Rally XC100 (Shimano SPD Version)

BRING POWER TO YOUR PEDALS

Rally XC100 is tested to the extreme, so you can ride there too. This single-sensing power meter delivers reliable power measurements and is easy to transfer between bikes, no matter what bike you're on or where you're riding. Cleat Compatibility: Shimano SPD

PART NUMBER - 010-02388-05

• It installs like any other pedal and is easy to swap from bike to bike. Yes, really.
• It's more than just watts. Advanced cycling dynamics show left/right balance and more.
• Take a deep dive into your performance by measuring total power, cadence and more.
• Clip in with ease. These pedals are compatible with SHIMANO SPD cleats.
• Edge¬Æ cycling computer compatibility and the Garmin Connect‚Ѣ app1 makes software updates and data uploads easy.
• Sync data to your favorite apps1 for even more analysis, data sharing and route planning.

IMPECCABLY DESIGNED PEDAL

Rally power meters have undergone rigorous testing to increase reliability. Featuring a superior design with sensors housed inside, these sleek pedals install like any pedal. And they're quick to transfer between bikes.

ADVANCED CYCLING DYNAMICS

In addition to total power and cadence, Rally power meter pedals measure much more. These metrics help you identify your strengths and weaknesses, so you can work to improve.

SEATED VS. STANDING

Track the amount of time you spend in each position, and gauge position effectiveness.

POWER PHASE

Get a clear look at where you're producing power in the pedal stroke.

PLATFORM CENTER OFFSET

Ensure proper cleat position by keeping track of where power is applied on the pedal.

TRANSFERABLE SPINDLE

From road to gravel to cyclocross and much more, keep riding year-round. A transferable spindle can be installed in Rally RKroad or Rally‚Ѣ XC off-road pedal body kits (each sold separately).

BATTERY LIFE

Make sure you're ready for those long rides and training sessions with up to 120 hours of battery life.

Rally Family

• Battery type: LR44/SR44 (x4)
• Battery life: up to 120 hours (with LR44 battery type)
• Weight: 455 g
• Water resistance: IPX7
• Max. rider weight: 105 kg
• Accuracy: +/- 1.0%
• Cleat type: SHIMANO SPD
• Q-factor: 53 mm/55 mm with supplied spacing washer
• Stack height: 13.5 mm
• Field calibration
• Adjustable release tension
• Garmin Connect^‚Ѣ
• Measurement location: Spindle
• Communication: ANT+^¬Æ and Bluetooth^¬Æ
