PNW Components Loam Pedals - Gen 3

Specifications

• Sold as: A pair (left and right pedal)
• Platform: CNC'd aluminum, extruded, anodized, and laser-etched
• Platform Size: 115mm long x 109mm wide
• Platform Height: 15.5mm front and back, 14mm center, 17mm over axle
• Weight: 440g per pair (220g each)
• Pins: 10 per side, 12 total, Tectonic and cylinder thread styles
• Pin Material: Stainless steel SUS 630
• Axle: Alloy steel SNCM220
• Bearings and Seals (per pedal): 1 sealed cartridge bearing, 1 needle bearing, 1 bushing, 1 O-ring, 1 wiper seal
• Torque: Axle nut 5 to 6 Nm; Tectonic set screw 1.5 Nm; threaded cylinder pin 1 Nm
• Tools: 2mm hex for pins and set screws, 6mm hex for the end cap, 5mm for the axle nut
• Certification: EFBE Tri-Test E-Gravity
• Included: Small parts envelope with 2 Tectonic pins, 2 set screws, and 2 pedal washers

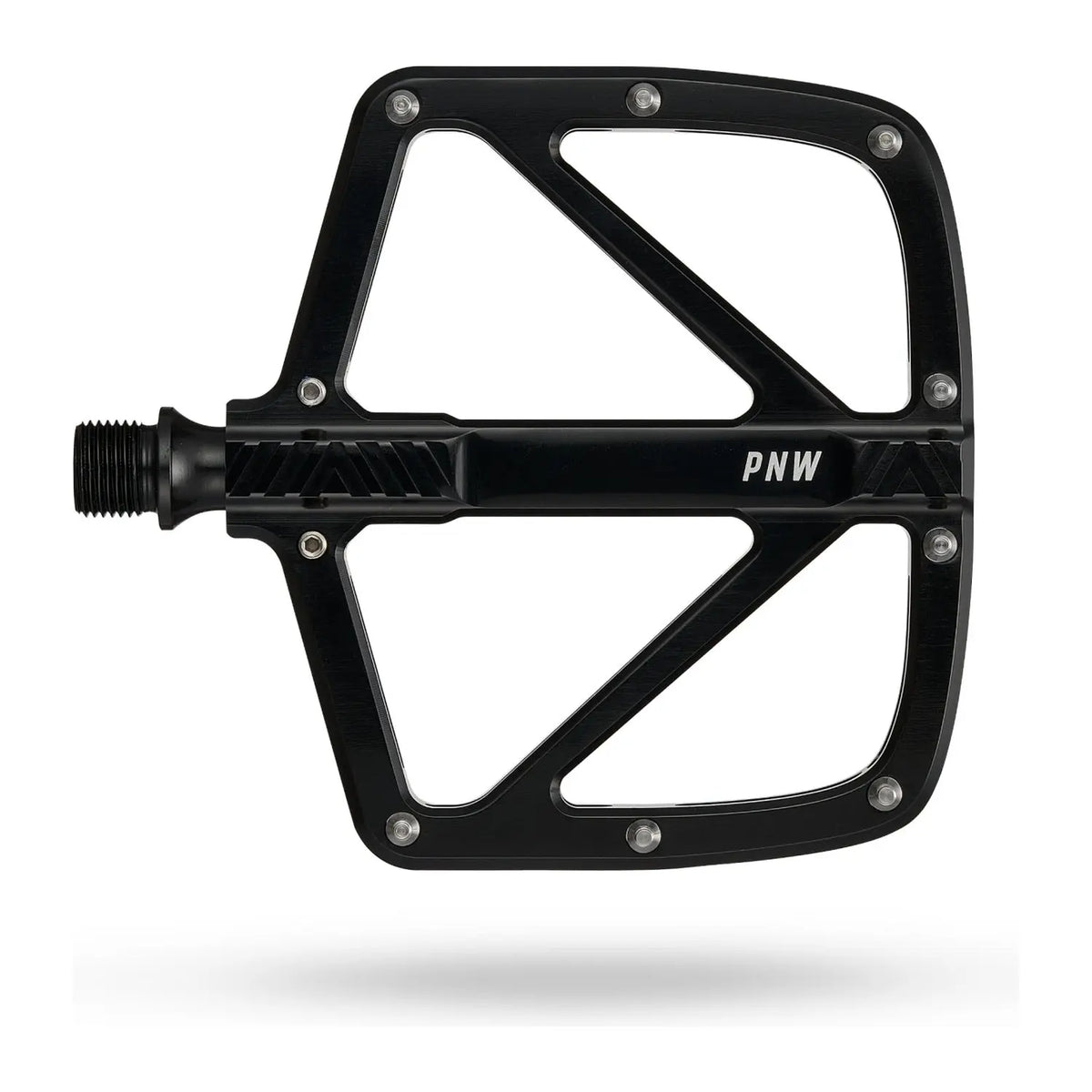

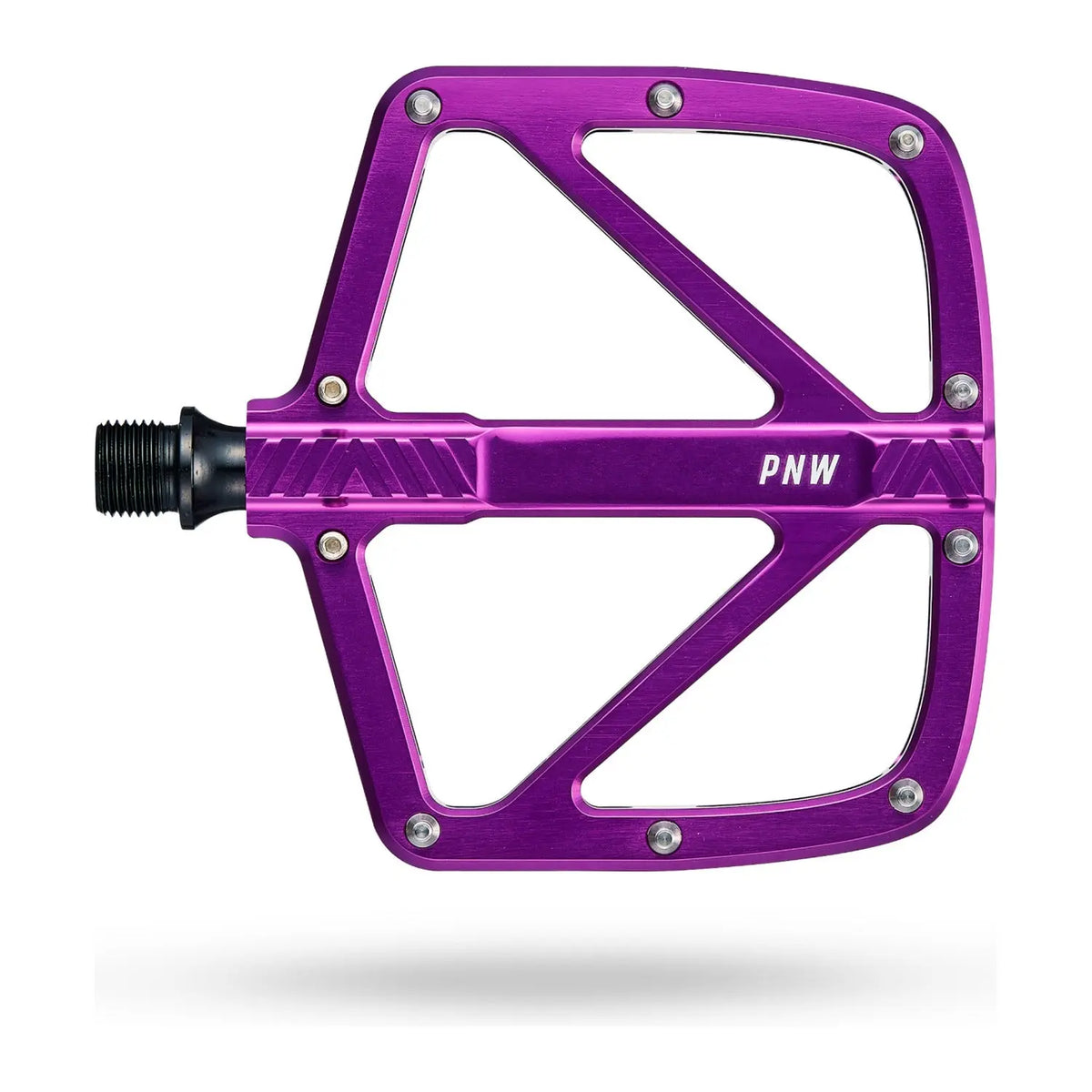

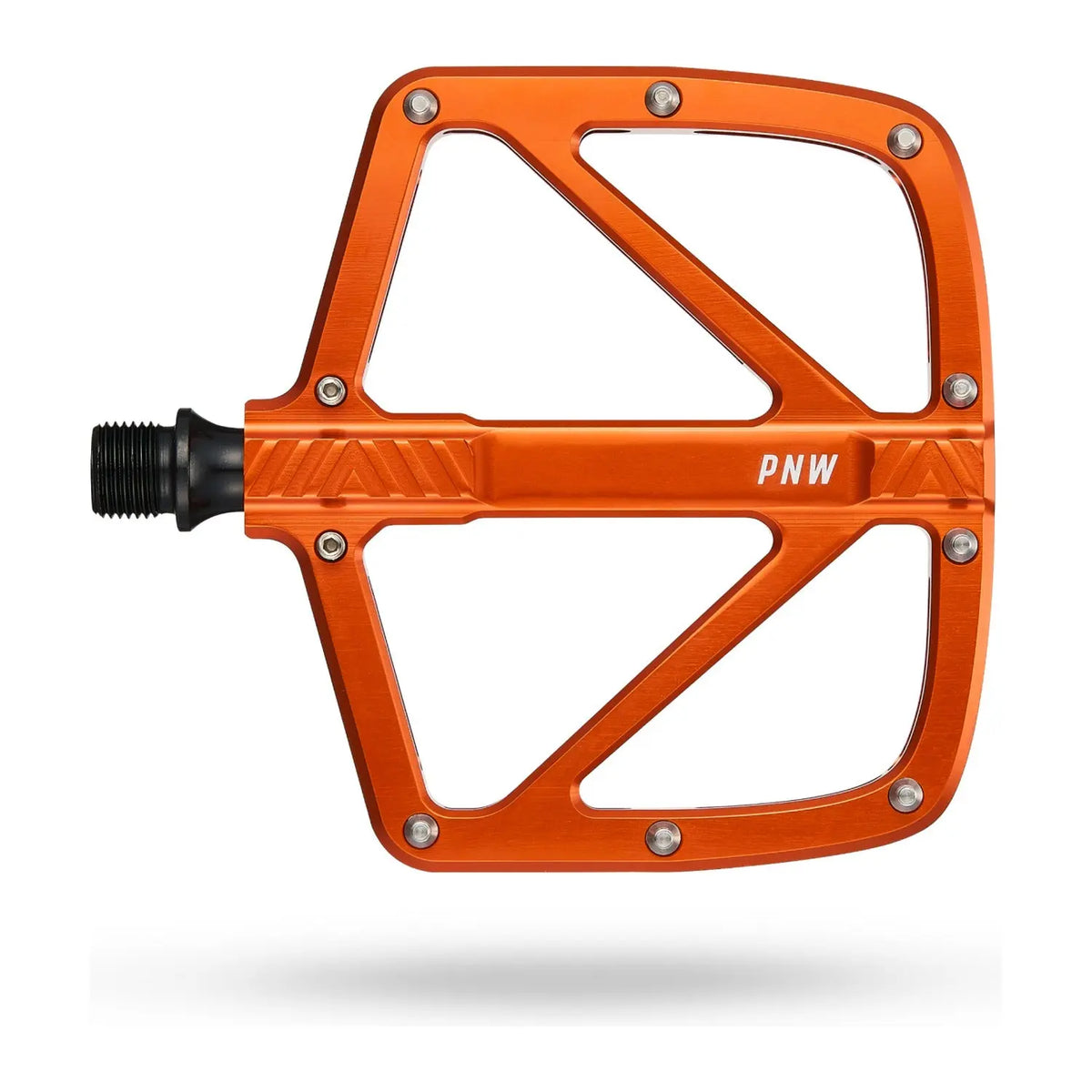

• Colors: Blood Orange, Fruit Snacks, Blackout Black
• Warranty: PNW Lifetime Warranty
• MPN: PD-LM3-TEC-BLD-OR (Blood Orange), PD-LM3-TEC-FRT-SN (Fruit Snacks), PD-LM3-TEC-BLK-BK (Blackout Black)

FAQ

What is the Tectonic pin system?

Tectonic pins are a patented stainless steel pin design by Tectonic Components of Colorado. They let PNW cut the pin count from 22 to 12 per pedal while keeping the grip, and each pin can be replaced on its own.

Can I use the Loam Pedals Gen 3 on an e-bike or for downhill?

Yes. The Gen 3 is certified to the EFBE Tri-Test E-Gravity standard, which rates it for aggressive riding, including e-bikes and downhill.

Do the Loam Pedals Gen 3 come with spare pins?

Yes. A small parts envelope in the box includes 2 Tectonic pins, 2 set screws, and 2 pedal washers.

How are the Loam Pedals Gen 3 built?

The platform is extruded aluminum that is CNC'd, anodized, and laser-etched. The pins are SUS 630 stainless steel and the axle is SNCM220 alloy steel.

Best For

Mountain bikers, including e-bike and downhill riders, who want a grippy aluminum flat pedal with replaceable pins and a certified axle system.
