Cane Creek Invert CS Gravel Fork
Cane Creek Invert CS Gravel Fork

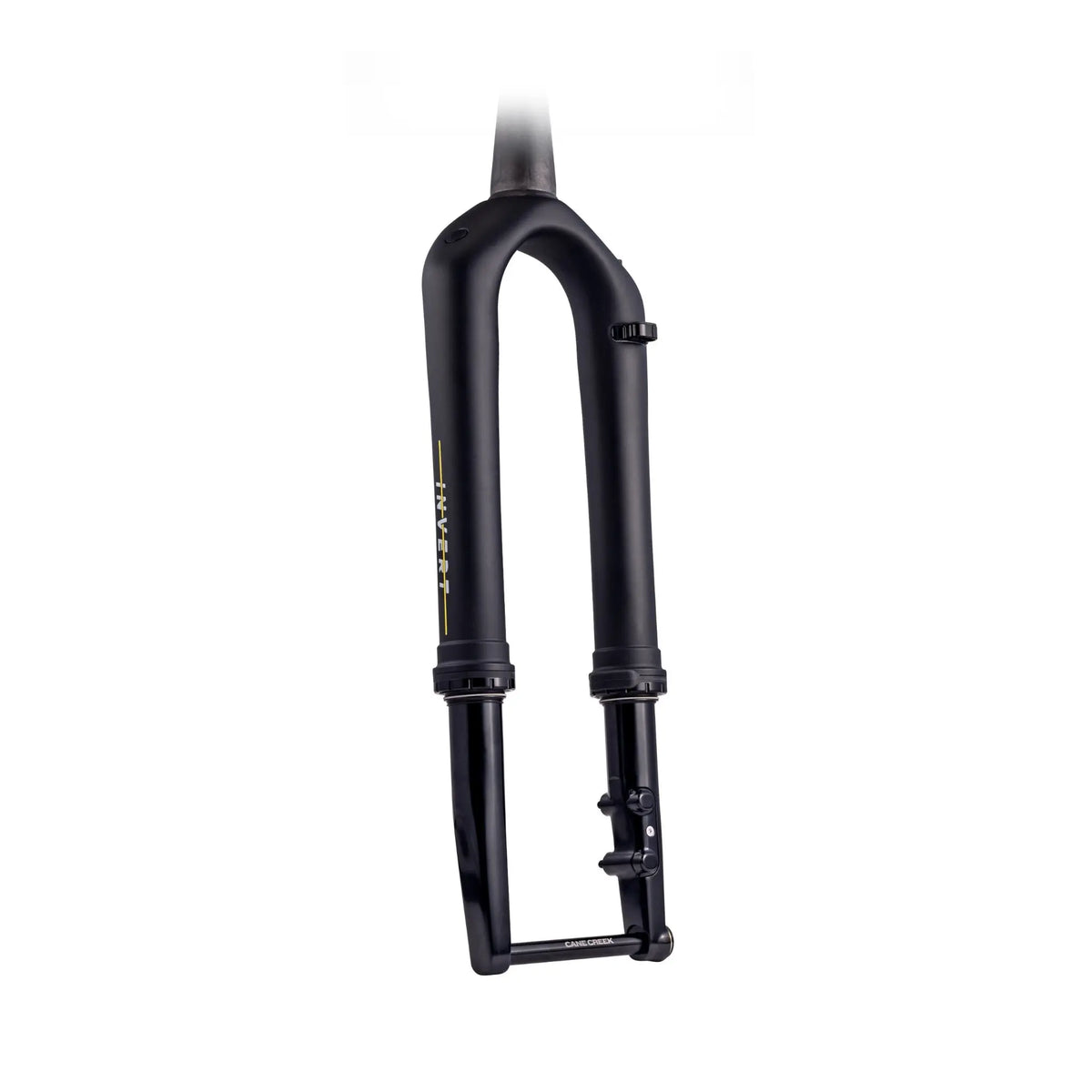

The Cane Creek Invert CS Gravel Fork is a lightweight inverted suspension fork for drop bar bikes, giving you 40mm of travel at 1113 grams with a Climb Switch for firm, out of the saddle efforts. Read the overview
At a glance
- Model
- Invert CS (Climb Switch)
- Travel
- 40mm
- Weight
- 1113g
- Axle to Crown and Offset
- 435mm ATC, 45mm offset
1 in stock
Ships free. Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
How does the Cane Creek Invert CS compare to other gravel forks?

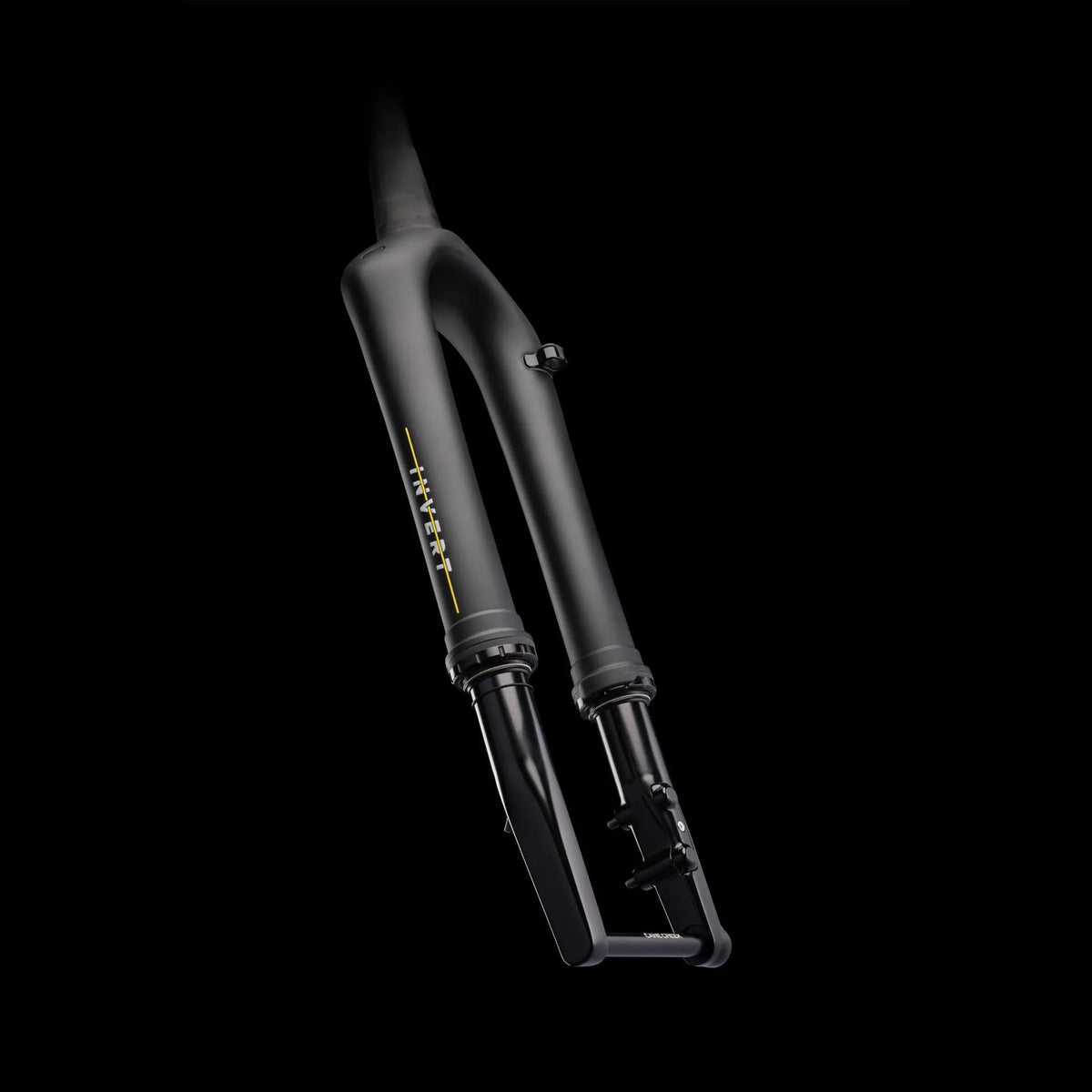

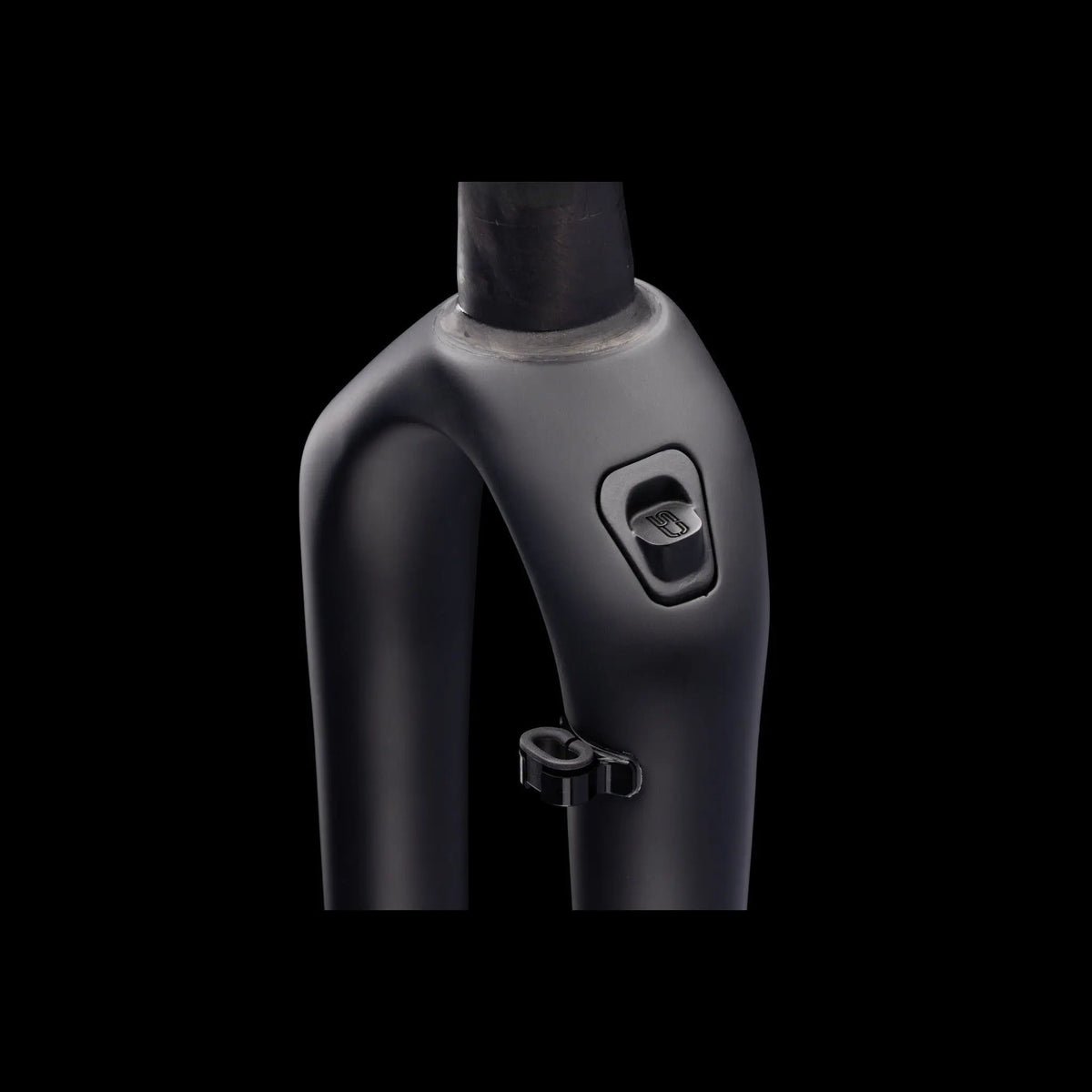

The Cane Creek Invert CS Gravel Fork is a lightweight inverted suspension fork for drop bar bikes, giving you 40mm of travel at 1113 grams with a Climb Switch for firm, out of the saddle efforts. Cane Creek builds the chassis from a carbon fiber crown and steerer bonded to aluminum upper tubes, with one piece forged and machined 30mm stanchions below. The air spring adjusts to rider weight, and the Climb Switch firms the fork up with a single click when you stand to climb. The result is more traction and control on washboard, loose corners, and steep descents, with a clean look that doesn't shout suspension fork.
It takes a 1 1/8 to 1.5 inch tapered steerer, uses a 12x100 thru axle with a hidden axle design, and fits tires up to 700x50mm. Brakes mount flat mount with hardware for a 160mm rotor included, and a rear +20mm flat mount adapter opens up 180mm rotors. The 40mm travel version has a 435mm axle to crown and 45mm offset, so check your frame against Cane Creek's fitment list before you order. Service is simple too: a splash oil flush every 50 hours with no special tools, and a full service at 100 hours. Gravel riders who spend their weekends on rough backroads and want a calmer front end without adding a heavy fork will feel the difference on the first descent.
All the specs
15 specs in 3 groups. Open a group, or expand them all.
MPN BBG0005
Sensors and connectivity1 spec
- Brake Mount
- Flat mount for 160mm rotor (hardware included), 180mm compatible with a rear +20mm flat mount adapter
Build and box3 specs
- Weight
- 1113g
- Warranty
- 2 years
- MPN
- BBG0005
Other details11 specs
- Model
- Invert CS (Climb Switch)
- Travel
- 40mm
- Chassis
- Carbon fiber crown and steerer bonded to aluminum upper tubes
- Lowers

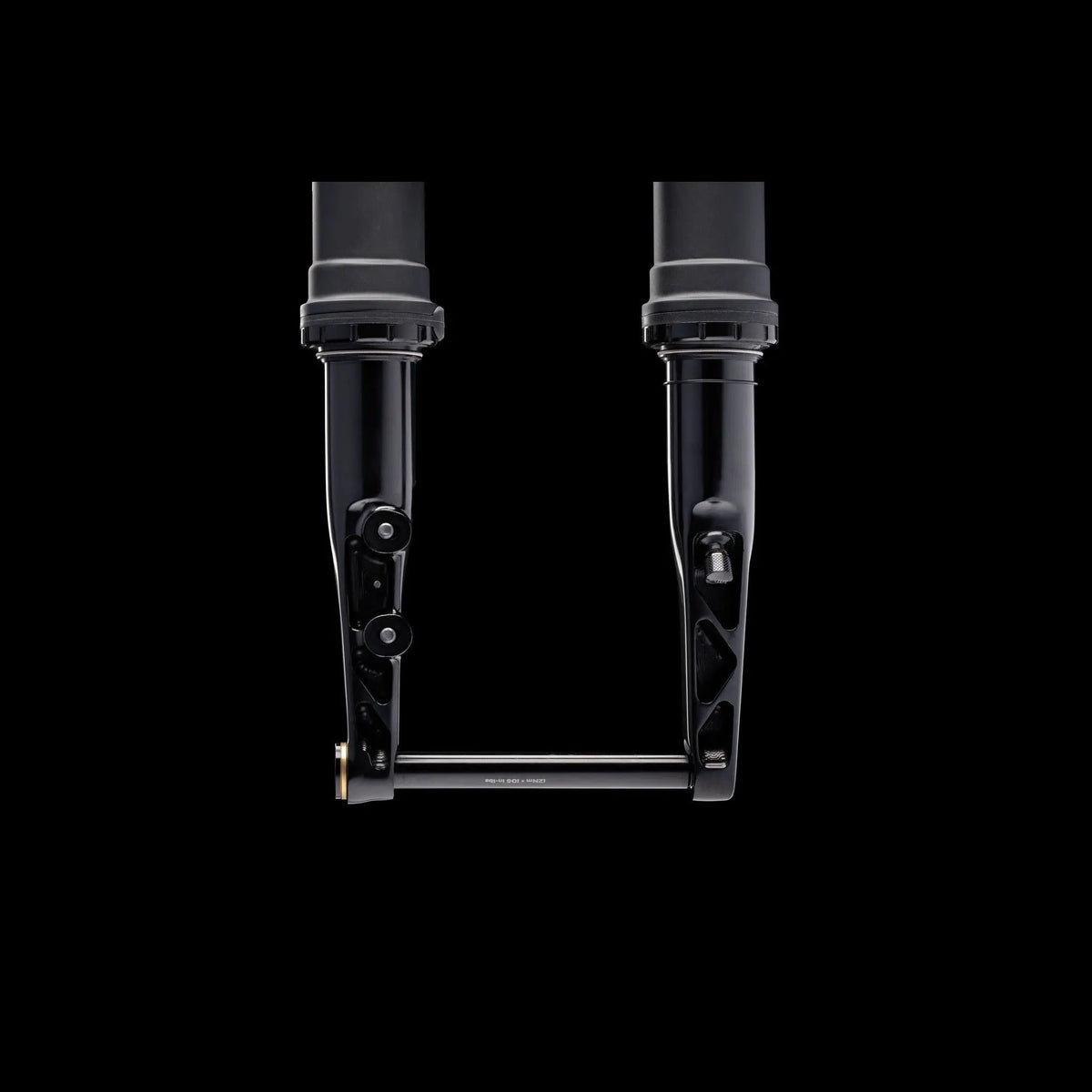

- One piece, forged and machined 30mm stanchions with integrated hidden brake caliper bolts and hidden thru axle
- Axle to Crown and Offset
- 435mm ATC, 45mm offset
- Max Tire Size
- 700c x 50mm
- Axle
- 12 x 100mm thru axle (included)
- Steerer Tube
- 1 1/8 to 1.5 inch tapered (28.6mm to 40mm)
- Crown Race
- Integrated, 36 degree
- Adjustments
- Air spring for rider weight, Climb Switch firm mode
- Service Interval
- 50 hours splash oil flush, 100 hours full service
FAQ
Good questions
Get to know Cane Creek
There's more to Cane Creek than this one product. Our Cane Creek page has the full Cane Creek lineup we carry and more about the brand.
Visit the Cane Creek page →What is the difference between the Cane Creek Invert CS and Invert SL?
The Cane Creek Invert CS has a Climb Switch that firms up the fork for out of the saddle pedaling and weighs 1113g, while the Invert SL has no Climb Switch and weighs 990g.
Will the Cane Creek Invert fit my gravel bike?
The Cane Creek Invert fits bikes with a 1 1/8 to 1.5 inch tapered head tube, and the 40mm version has a 435mm axle to crown with 45mm offset. Check Cane Creek's fitment list for your frame, or send us your frame model and ask us.
What is the biggest tire the Cane Creek Invert fits?
The Cane Creek Invert fits tires up to 700c x 50mm.
How often does the Cane Creek Invert need service?
Cane Creek recommends a splash oil flush on the Invert every 50 hours, which needs no special tools or major disassembly, and a full service every 100 hours.
