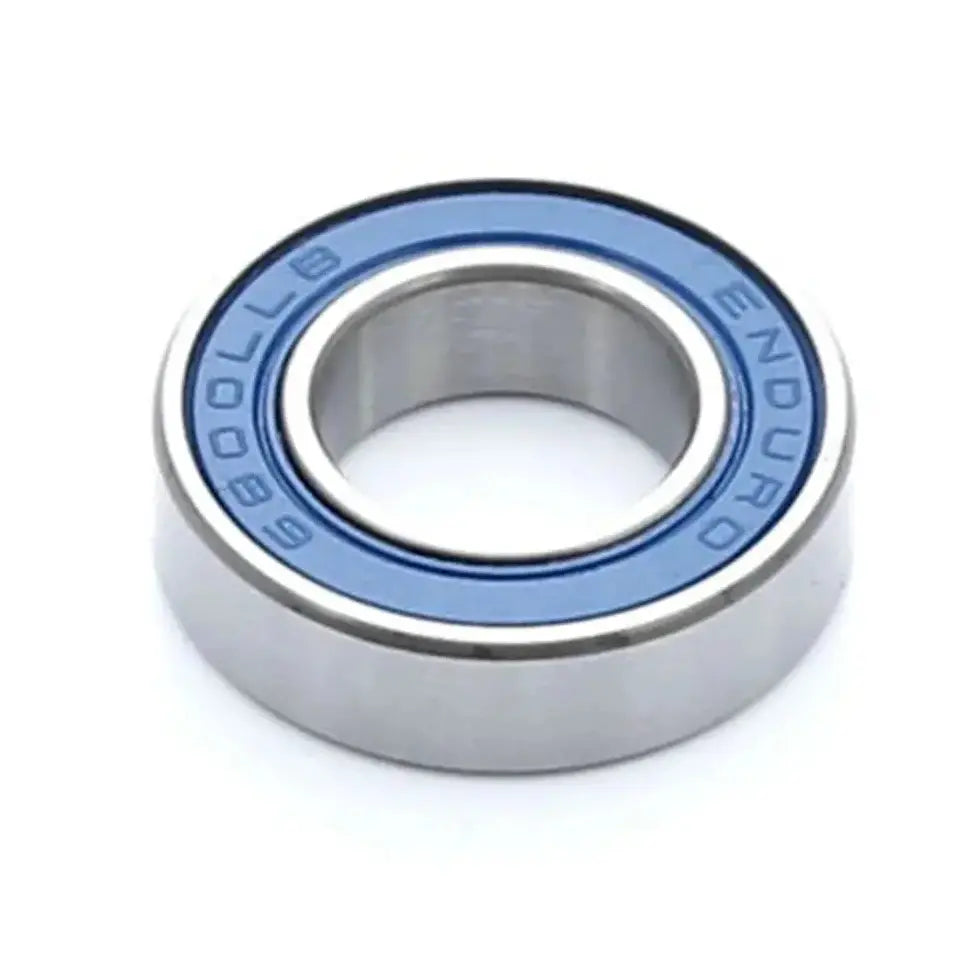

Enduro 6800 LLB Radial Bearing - C3 Clearance | 10x19x5mm
Bearings
Enduro 6800 LLB Radial Bearing - C3 Clearance · 10x19x5mm
Enduro 6800 LLB Radial Bearing - C3 Clearance | 10x19x5mm
The Enduro 6800 LLB Radial Bearing - C3 Clearance | 10x19x5mm is a standard-design cartridge bearing used most often as a hub bearing in quick-release hub designs and pedal internals, with occasional duty as a frame pivot bearing. Read the overview
At a glance
- Seal Type
- LLB
- Bearing ID Number
- 6800
- Inner Diameter (ID)
- 10mm
- Outer Diameter (OD)
- 19mm
9 in stock
Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
What is the Enduro 6800 LLB Radial Bearing used for?
The Enduro 6800 LLB Radial Bearing - C3 Clearance | 10x19x5mm is a standard-design cartridge bearing used most often as a hub bearing in quick-release hub designs and pedal internals, with occasional duty as a frame pivot bearing. The C3 internal clearance is what makes this version the right call for hub work, where slight preload and thermal expansion under bearing seat tolerances need a bit of room to settle in. Deep-groove races, Grade 10 chrome steel balls, and a 90 percent fill of Mobilux NGLI 2 high-pressure waterproof synthetic grease give it long service life under daily abuse.
Enduro engineers every bearing in this line with the deepest race grooves possible to accommodate the largest balls the dimensions allow, which translates to more contact area and longer life under load. The LLB dual-lip labyrinth seals ride in a micro-groove to create a full labyrinth path, holding grease in and contaminants out without adding meaningful drag. For suspension pivot duty, Enduro recommends the MAX-type version of this size instead since MAX bearings are purpose-built for the twisting multi-directional loads at a pivot. This bearing is the right replacement for mechanics rebuilding QR hubs, pedal bearings, or any 10x19x5mm hub application.
All the specs
- MPN
- BB 6800 LLB-BAG
- Bearing ID Number
- 6800
- Inner Diameter (ID)
- 10mm
- Outer Diameter (OD)
- 19mm
- Thickness
- 5mm
- ABEC Rating
- ABEC-3
- Internal Clearance
- C3
- Material
- High-carbon chromium steel
- Balls
- Grade 10
- Seal Type
- LLB (dual-lip labyrinth, both sides)
- Grease
- Mobilux NGLI 2 high-pressure synthetic, 90 percent fill
- Static Load
- 207 lbf (1.92 kN)
- Weight
- 4.9 grams
- Sold As
- Single bearing
- California Prop 65
- Warning: Cancer and birth defects or reproductive harm
FAQ
Good questions
Get to know Enduro
There's more to Enduro than this one product. Our Enduro page has the full Enduro lineup we carry and more about the brand.
Visit the Enduro page →What's this bearing used for?
Hubs (especially quick-release designs) and pedal internals are the primary uses. It can serve as a frame pivot bearing, but Enduro specifically recommends their MAX-type 6800 for suspension pivot duty since MAX bearings carry more balls and handle the twisting multi-directional loads at a pivot better.
What does C3 clearance mean?
C3 is a slightly looser internal clearance than standard (CN). It accommodates the small amount of preload and thermal expansion that hub designs typically apply, which prevents the bearing from binding when installed in a press-fit hub shell. For pivot bearings, CN clearance is usually preferred.
What materials and grease are used?
Ball cage and races are high-carbon chromium steel with dual-lip labyrinth (LLB) seals on both sides. The 90 percent grease fill is Mobilux NGLI 2, a high-pressure waterproof synthetic grease. If you need stainless or ceramic hybrid in this size, those are available in Enduro's premium lines.
What's the load rating?
Static load rating is 207 lbf (1.92 kN) per the manufacturer. Each bearing weighs 4.9 grams.
