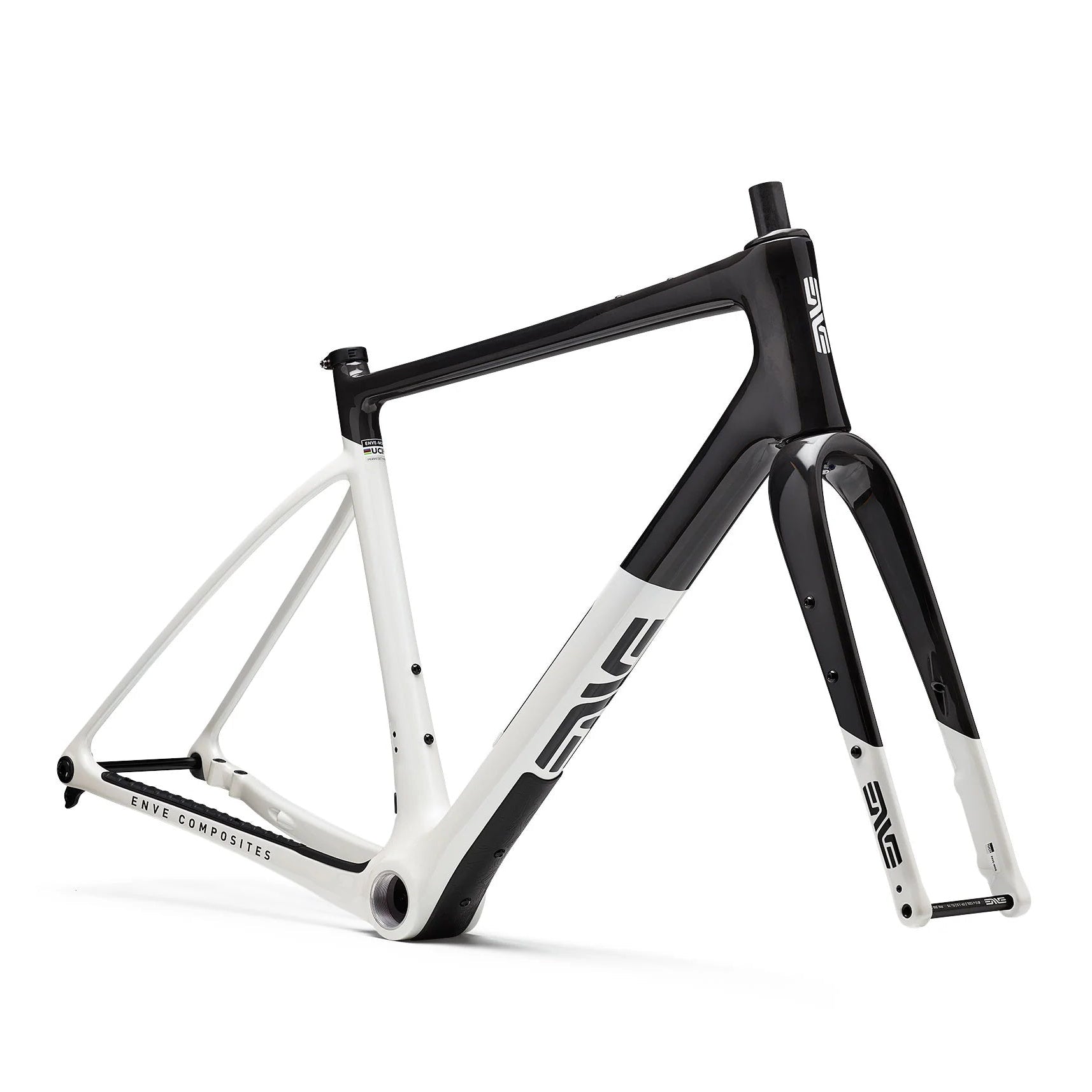

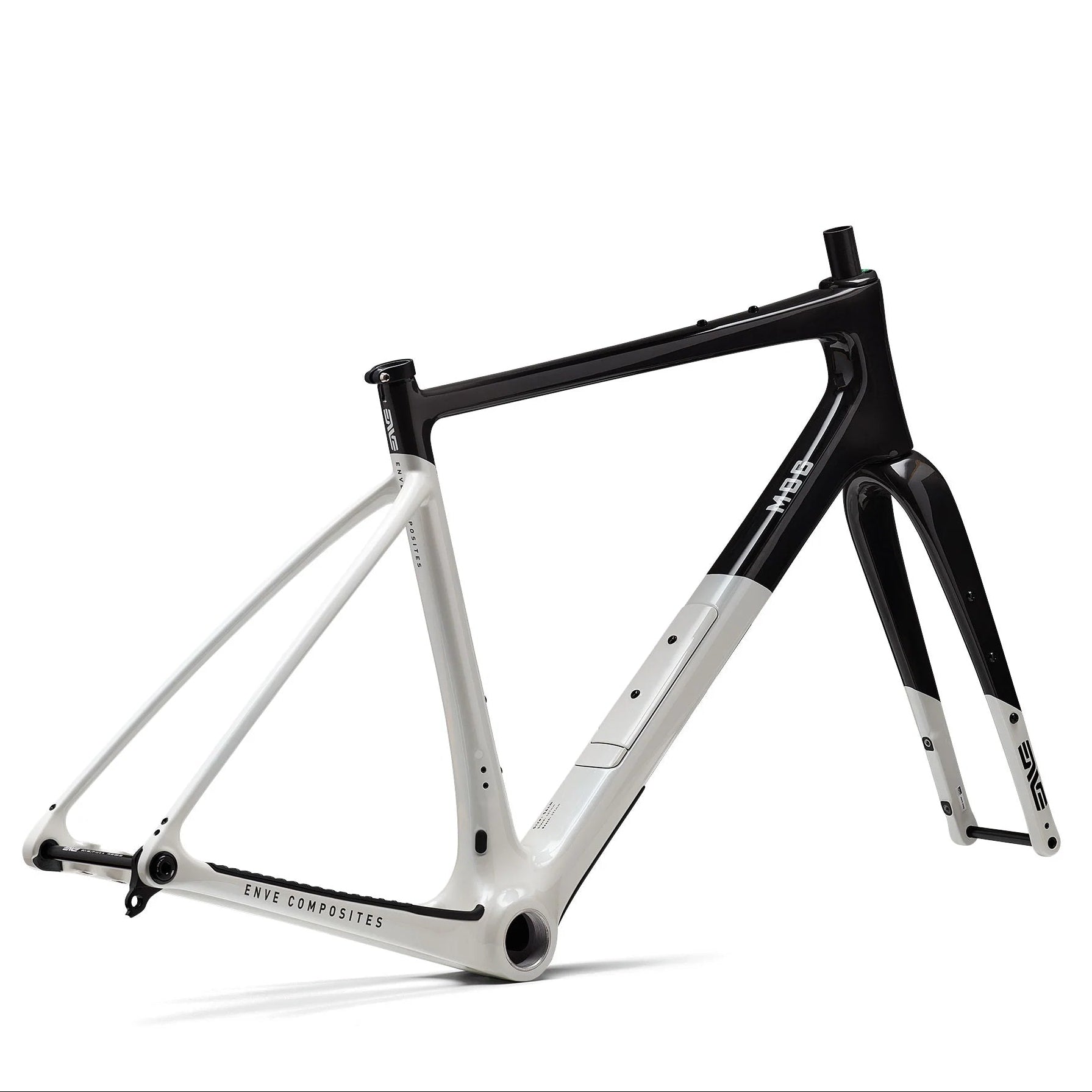

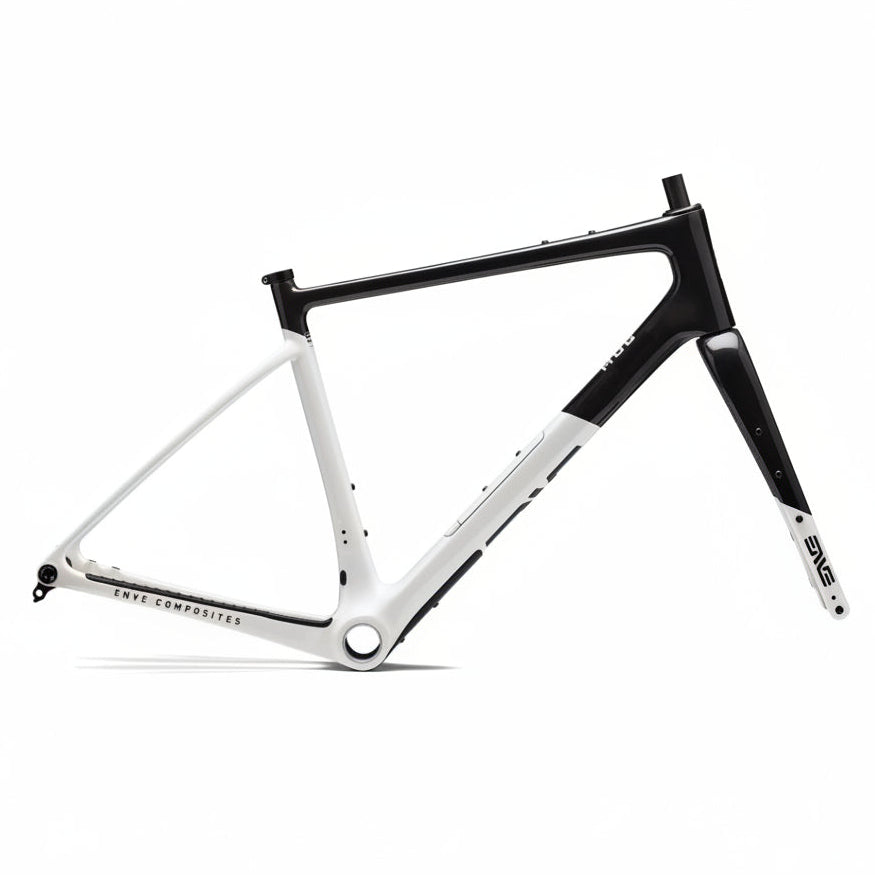

ENVE Mog Frameset - Aspen White

Specifications

• Model: Mog Frameset
• MPN: 100-5004-1156 (Aspen White, 56cm)
• Color: Aspen White
• Frame: ENVE M.O.D Carbon, 12x142 thru-axle, flat-mount disc, threaded T47 BB, IN-Route internal routing, fender compatible
• Fork: ENVE M.O.D Carbon, 12x100 thru-axle, flat-mount disc, IN-Route internal routing, fender compatible
• Tire Clearance: 700c x 50mm
• Storage: Integrated Cargo Bay, 0.6L, includes two neoprene storage bags
• Mounts: Top tube bag, fork accessory, third bottle cage, fender
• Frameset Includes: Frame, fork, headset, thru-axles, two Cargo Bay bags
• Sizes: 49, 52, 54, 56, 58, 60cm
• Application: Gravel, exploration, adventure, racing

Sizing Guide

The Mog is offered in six frame sizes from 49cm to 60cm, paired with three fork rakes so handling stays consistent across the size range. ENVE recommends confirming fit against their published geometry chart and your current gravel bike fit. If you are between sizes or want help choosing, reach out and we will walk through it with you.

Geometry

The Mog uses a performance gravel geometry tuned for stability at speed and confident handling on technical terrain, with size-specific fork rakes across the six sizes to keep steering balanced. Full geometry tables by size, including reach, stack, head tube angle, and chainstay length, are published on the ENVE geometry chart. Ask us for the numbers for your size and we will pull them for you.

FAQ

What is included with the frameset?

The frameset includes the ENVE M.O.D Carbon frame and matching fork, the headset, thru-axles, and the two neoprene Cargo Bay storage bags. It does not include a drivetrain, wheels, cockpit, or seatpost, this is a frameset, not a complete bike.

How much tire clearance does the Mog have?

The Mog clears a 700c x 50mm tire with room for mud and debris, making it one of the more capable platforms for mixed and rough terrain while staying optimized for the 700c standard.

What is the Cargo Bay?

The Cargo Bay is ENVE integrated in-frame storage inside the downtube, with 0.6 liters of usable space. Every Mog ships with two lightweight neoprene bags that organize your tools, spares, and essentials and keep them from rattling.

What bottom bracket and axle standards does it use?

The Mog runs a threaded T47 bottom bracket for easy, quiet, serviceable installation, with 12x142mm rear and 12x100mm front thru-axles and flat-mount disc brakes throughout.

Best For

The rider building a custom, no-compromise gravel bike who wants a race-fast, adventure-ready carbon chassis with huge tire clearance, in-frame storage, and fully integrated routing, and who plans to spec their own drivetrain, wheels, and cockpit around it.
