How Do the Look KEO 2 Max Vision Pedals Keep You Visible?

The Look KEO 2 Max Vision Pedals take the KEO 2 Max, Look's gran fondo pedal, and build a rear light into each one. Each light puts out up to 60 lumens across a 180 degree beam angle, which Look rates as visible from up to 1 km away in daylight. The reasoning behind putting them down at your feet is worth knowing: a Clemson University study cited by Look found that lights at a rider's heels made them 5.5 times more visible than a seatpost light. Motion is what catches the eye.

Underneath the lights it is still a KEO 2 Max: a 500 mm2 stainless steel contact plate, an oversized Chromoly+ spindle, and retention adjustable from 8 to 12 so you can tune the click and the release. The lights run up to 40 hours, recharge over USB-C in about two hours, and carry an IPX7 waterproof rating. Start and Stop drops them into standby after 30 seconds of stillness and wakes them the moment you ride again. They snap on and off by hand in under three seconds, no tools. A pair of Keo Grip cleats is in the box.

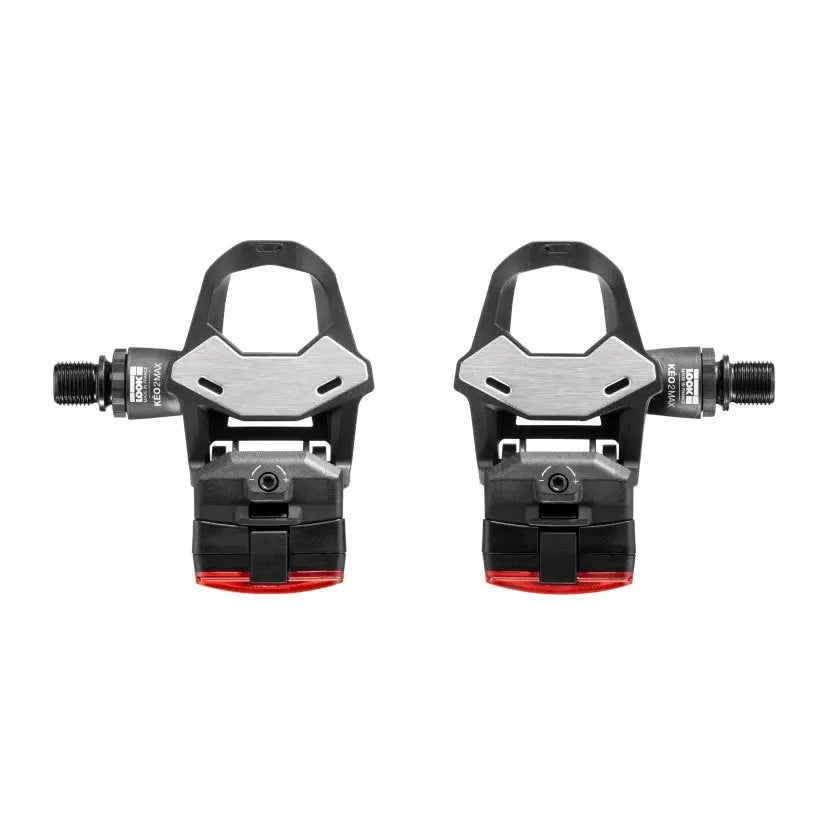

Look KEO 2 Max Vision pedal side profile
Look KEO 2 Max Vision pedal side profile
Look KEO 2 Max Vision pedal lights mounted on a bike at dusk
Look KEO 2 Max Vision pedal lights mounted on a bike at dusk

All the specs

23 specs in 3 groups. Open a group, or expand them all.

Battery and power2 specs
Battery life
Up to 40 hours
Charging
USB-C, about 2 hours to full
Build and box9 specs
MPN
25988
Spindle material
Chromoly+
Body material
Composite
Platform material
Stainless steel
Water resistance
IPX7
Light unit weight
20 g each
Weight, per pedal
155 g
Weight, pair plus cleats
328 g
Color
Black
Other details12 specs
Technology
Spring
Platform area
500 mm2
Total stack height (pedal + cleat)
17.3 mm (11 + 6.3 mm)
Q factor
53 mm
Retention
8 to 12, adjustable spring
Cleats included
Keo Grip
Cleat pattern
3 bolt road
Entry
Single sided
Lights included
Yes, 2
Light output
2 to 60 lumens
Light modes
4 (Day Flash 60 lm, Night Flash 10 lm, Steady 3 lm, Night Steady 2 lm)
Beam angle
180 degrees

FAQ

Good questions

Get to know Look

There's more to Look than this one product. Our Look page has the full Look lineup we carry and more about the brand.

Visit the Look page →
Do these use standard KEO cleats?

Yes. The KEO 2 Max Vision takes KEO cleats and ships with a pair of Keo Grip cleats. If you are already on KEO, your cleat position carries straight over.

How long do the lights last?

Up to 40 hours per charge, with a full recharge taking about two hours over USB-C. A built in battery indicator tells you where you stand before you head out.

Can the lights be removed?

Yes. The lights snap on and off by hand in under three seconds with no tools, so you can pull them to charge or move them between pedals.

How many lighting modes are there?

Four. Day Flash at 60 lumens, Night Flash at 10 lumens, Steady at 3 lumens, and Night Steady at 2 lumens. Look says Day Flash is the one that catches a driver's attention during the day.

Are the lights waterproof?

Yes. Look rates them IPX7.

Is this the same pedal as the standard KEO 2 Max?

Look builds it on the KEO 2 Max, with the same 500 mm2 contact area, Chromoly+ spindle and 8 to 12 retention. It weighs 155 g per pedal, against 130 g for the standard KEO 2 Max.
