Look KEO Blade Ceramic Vision Pedals
Pedals
Look KEO Blade Ceramic Vision Pedals
Look KEO Blade Ceramic Vision Pedals
The Look KEO Blade Ceramic Vision Pedals put a rear light in each pedal, because that is where a light works hardest. Read the overview
At a glance
- Bearings
- Ceramic
- Spindle material
- Chromoly+
- Technology
- Blade
- Body material
- Carbon
2 in stock
Ships free. Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Why Put Lights on a Race Pedal Like the Look KEO Blade Ceramic?

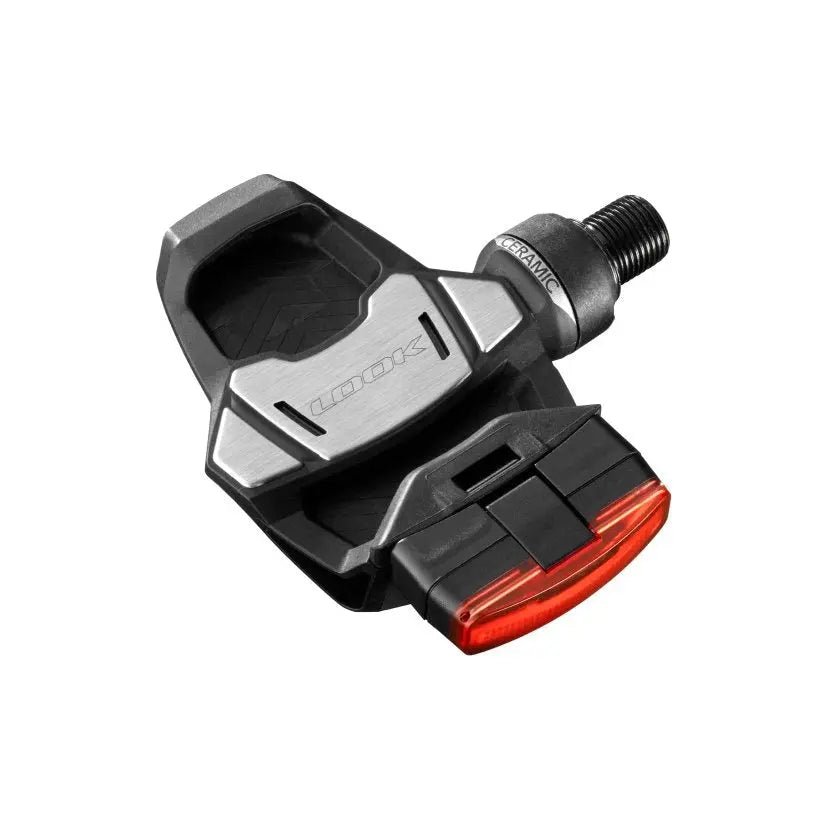

The Look KEO Blade Ceramic Vision Pedals put a rear light in each pedal, because that is where a light works hardest. A Clemson University study cited by Look found that lights at a rider's heels made them 5.5 times more visible than a seatpost light, and Look says motion based lighting catches attention faster than a steady light. Each 60 lumen light has a 180 degree beam that Look rates as visible from up to 1 km away in daylight. Four modes run from Day Flash for full sun to Night Steady for dark roads, and the lights run up to 40 hours before a two hour USB-C recharge.
The pedal underneath is a proper race pedal, not a commuter platform with a light stuck on. Carbon body, a carbon blade in place of a spring, and ceramic bearings that Look says cut rolling resistance by 18 percent and last four to six times longer than traditional steel bearings. It is 135 grams per pedal, 270 grams for the pair with lights fitted, on a 705 mm2 platform with a 14.8 mm stack. The 12 Nm blade is installed from the factory, and blades swap in under 30 seconds across 8, 12, 16, and 20 Nm. Start and Go puts the lights into standby after 30 seconds of stillness and wakes them when you ride. They are IPX7 rated and snap off by hand to charge. Keo Grip cleats are included.


All the specs
27 specs in 3 groups. Open a group, or expand them all.
Battery and power2 specs
- Battery life
- Up to 40 hours
- Charging
- USB-C, about 2 hours to full
Build and box10 specs
- MPN
- 25712
- Spindle material
- Chromoly+
- Body material
- Carbon
- Blade material
- Carbon
- Water resistance
- IPX7
- Light unit weight
- 20 g each
- Weight, per pedal
- 135 g
- Weight, pair plus lights
- 270 g
- Weight, pair plus cleats
- 340 g
- Color
- Black
Other details15 specs
- Technology
- Blade
- Bearings
- Ceramic
- Platform area
- 705 mm2
- Platform width
- 64 mm
- Total stack height (pedal + cleat)
- 14.8 mm (8.5 + 6.3 mm)
- Q factor
- 53 mm
- Retention
- 12 Nm blade installed
- Blade tensions available
- 8, 12, 16, 20 Nm, sold separately
- Cleats included
- Keo Grip
- Cleat pattern
- 3 bolt road
- Entry
- Single sided
- Lights included
- Yes, 2
- Light output
- 2 to 60 lumens
- Light modes
- 4 (Day Flash 60 lm, Night Flash 10 lm, Steady 3 lm, Night Steady 2 lm)
- Beam angle
- 180 degrees
FAQ
Good questions
Get to know Look

There's more to Look than this one product. Our Look page has the full Look lineup we carry and more about the brand.
Visit the Look page →Is this the same pedal as the standard KEO Blade Ceramic?
It shares the standard Blade Ceramic's 705 mm2 carbon platform, ceramic bearings and carbon blade, and adds the lights. It weighs 135 g per pedal against 115 g for the standard version.
Why lights on the pedals instead of the seatpost?
A Clemson University study cited by Look found that lights at a rider's heels made them 5.5 times more visible to drivers than a seatpost light. Look says motion based lighting catches attention faster than a steady light. Each light has a 180 degree beam angle.
How long do the lights run?
Up to 40 hours per charge, with a full recharge in about two hours over USB-C. A built in indicator shows the battery level.
Can the lights be removed?
Yes. They snap on and off by hand in under three seconds with no tools, so you can pull them to charge or swap pedals between bikes.
What blade tension do these ship with?
The 12 Nm blade is installed from the factory. Blades are available separately in 8, 12, 16, and 20 Nm and swap in under 30 seconds with one tool, so you can firm it up for racing or ease it off as you prefer.
Are the lights waterproof?
Yes. Look rates them IPX7.
