PDW OxRack Front Rack
PDW OxRack Front Rack

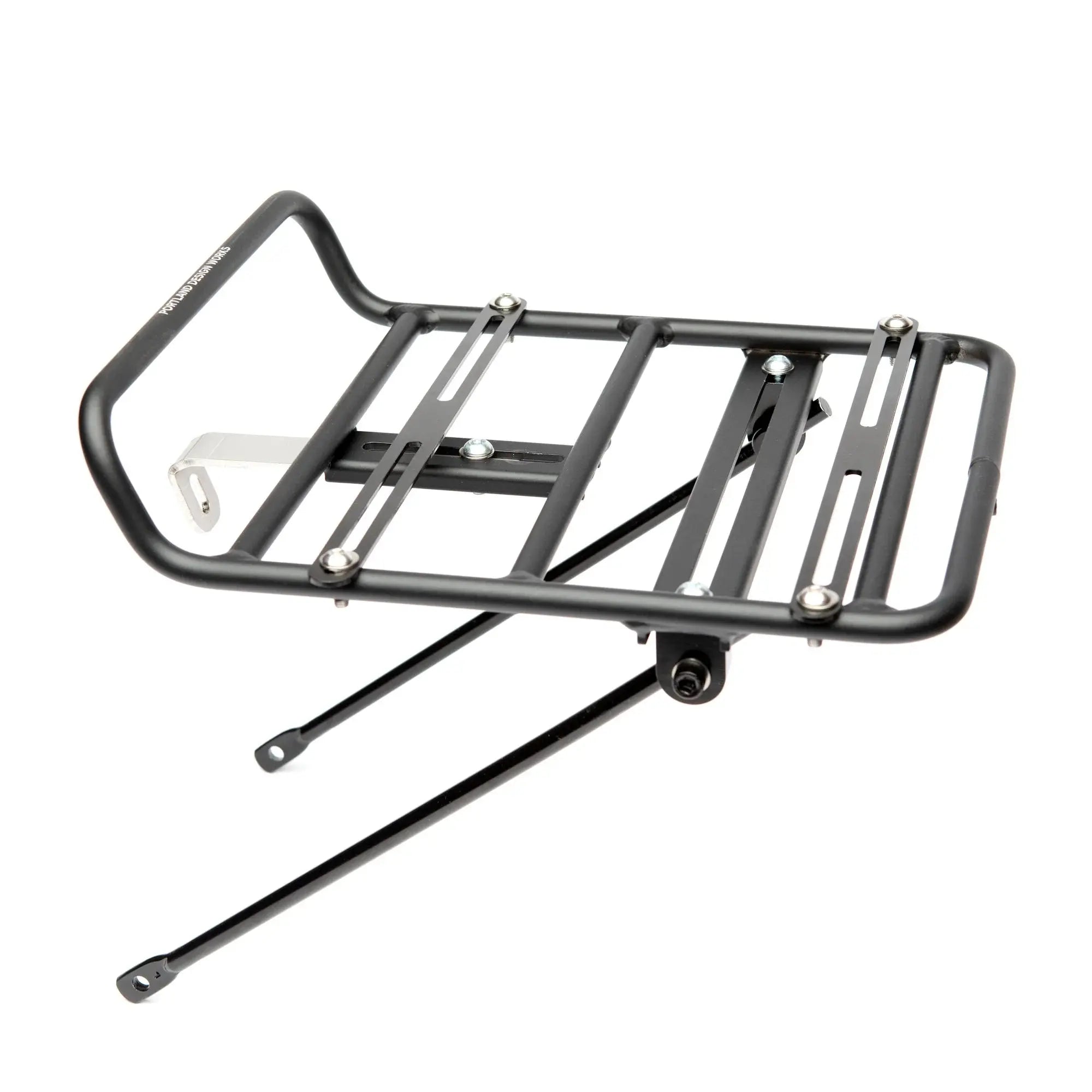

With a pair of alloy basket braces built into the rack. Read the overview
Out of Stock
- Free shipping on orders over $100. US addresses only.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
How Does the PDW OxRack Hold a Wire Basket Without Zip Ties?
With a pair of alloy basket braces built into the rack. That is the whole point of the OxRack Front. Most front racks leave you fumbling with cable ties to keep a basket from shifting, and those ties crack and drop off after a season in the weather. The braces snug the basket down mechanically instead, so it stays put and comes off again when you want it to. The platform is sized at 11 by 8.6 inches to fit the two baskets most people actually own, the Wald 137 and the Wald 139, along with PDW's own Timber to Town baskets.
It mounts at the fork crown and mid-fork eyelets, which keeps the load low and centered rather than perched high where it makes the steering feel vague. Steel construction, 730 grams, rated to 10 kg or 22 pounds. That is enough for a full grocery run or a loaded day of errands without turning your front end into a liability. Mounting hardware is included, and PDW backs it with their lifetime warranty against defects.
All the specs
MPN 586
- Model
- OxRack Front Rack
- Position
- Front
- Material
- Steel with alloy basket braces
- Mounting
- Fork crown and mid-fork eyelets
- Max load
- 10 kg / 22 lbs

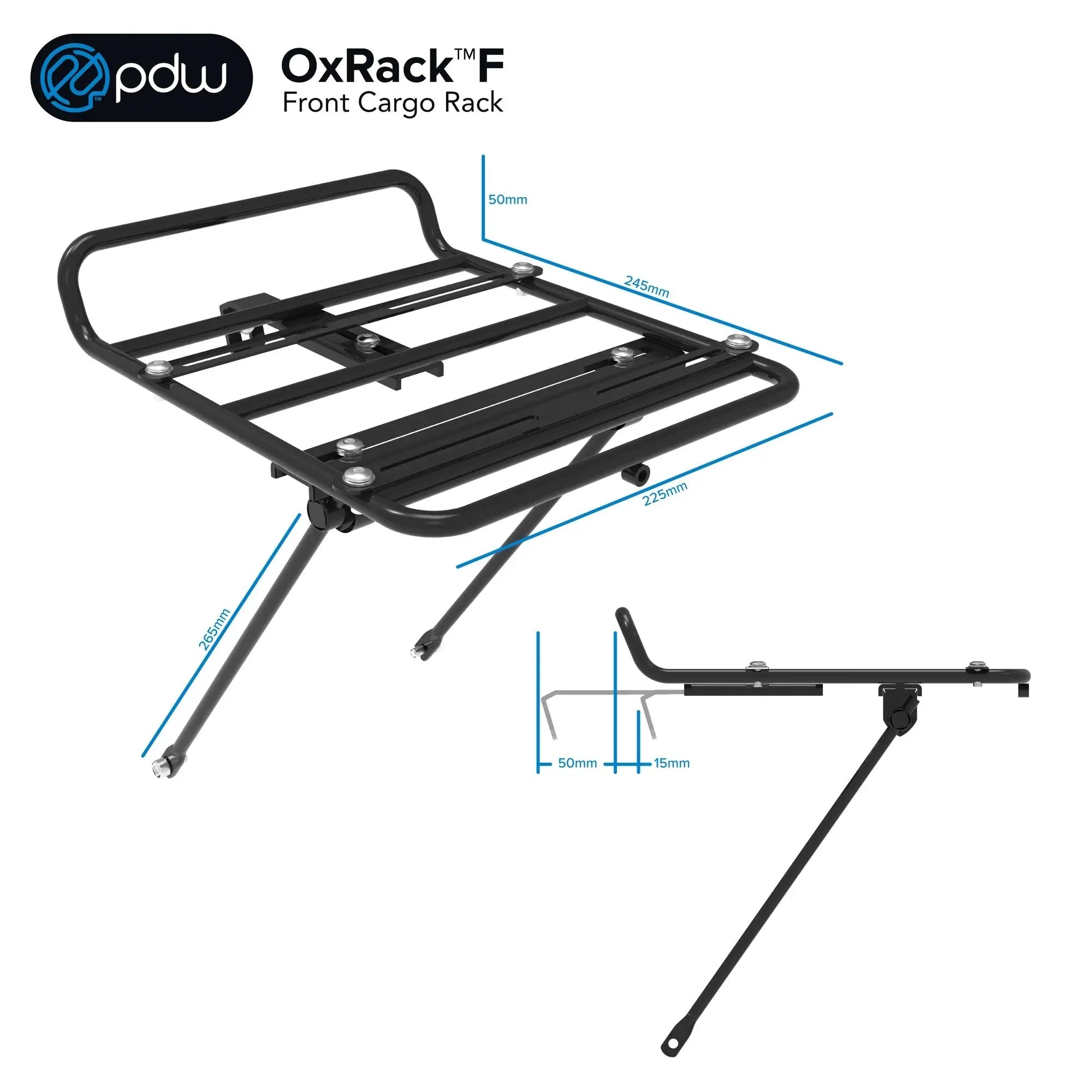

- Length
- 280 mm / 11 in
- Width
- 220 mm / 8.6 in
- Weight
- 730 g / 1.6 lbs
- Basket compatibility
- Wald 137, Wald 139, PDW Timber to Town medium and large, most standard wire baskets
- Color
- Black
- Warranty
- Lifetime against defects in workmanship or materials
In the box
- Mounting hardware
Good questions
Get to know Portland Design Works
There's more to Portland Design Works than this one product. Our Portland Design Works page has the full Portland Design Works lineup we carry and more about the brand.
Visit the Portland Design Works page →What mounts does my fork need?
Your fork needs mid-fork eyelets and a mounting point at the crown. Without both, this rack will not mount correctly. Check your fork before ordering.

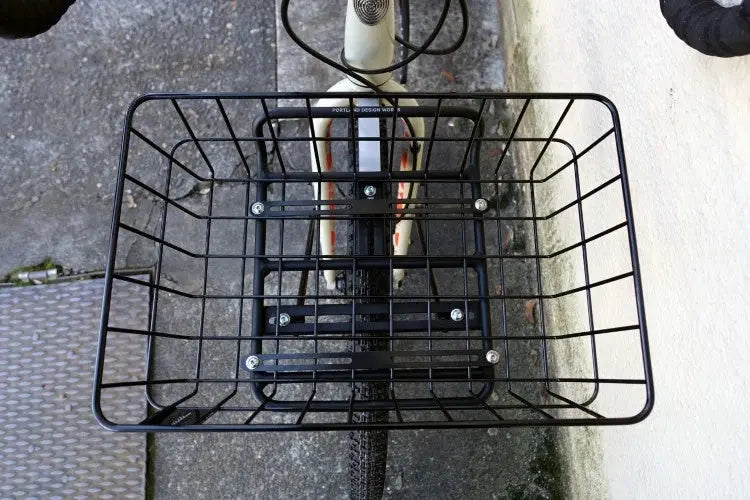

Which baskets fit?
The platform is 11 by 8.6 inches, sized around the Wald 137 at 13 by 8 inches and the Wald 139 at 15.75 by 10.5 inches. PDW's own Timber to Town baskets in medium and large also fit. Most standard wire baskets will work.
Do I need zip ties to attach a basket?
No. That is the point of the alloy basket braces built into the rack. They clamp the basket mechanically, so nothing cracks and falls off after a wet season.
How much can it carry?
10 kg, or 22 pounds. Enough for a full grocery run without making the steering feel vague, since the mid-fork mounting keeps the load low.
Is hardware included?
Yes, mounting hardware is included, and PDW keeps small replacement parts in stock if you ever need one.
