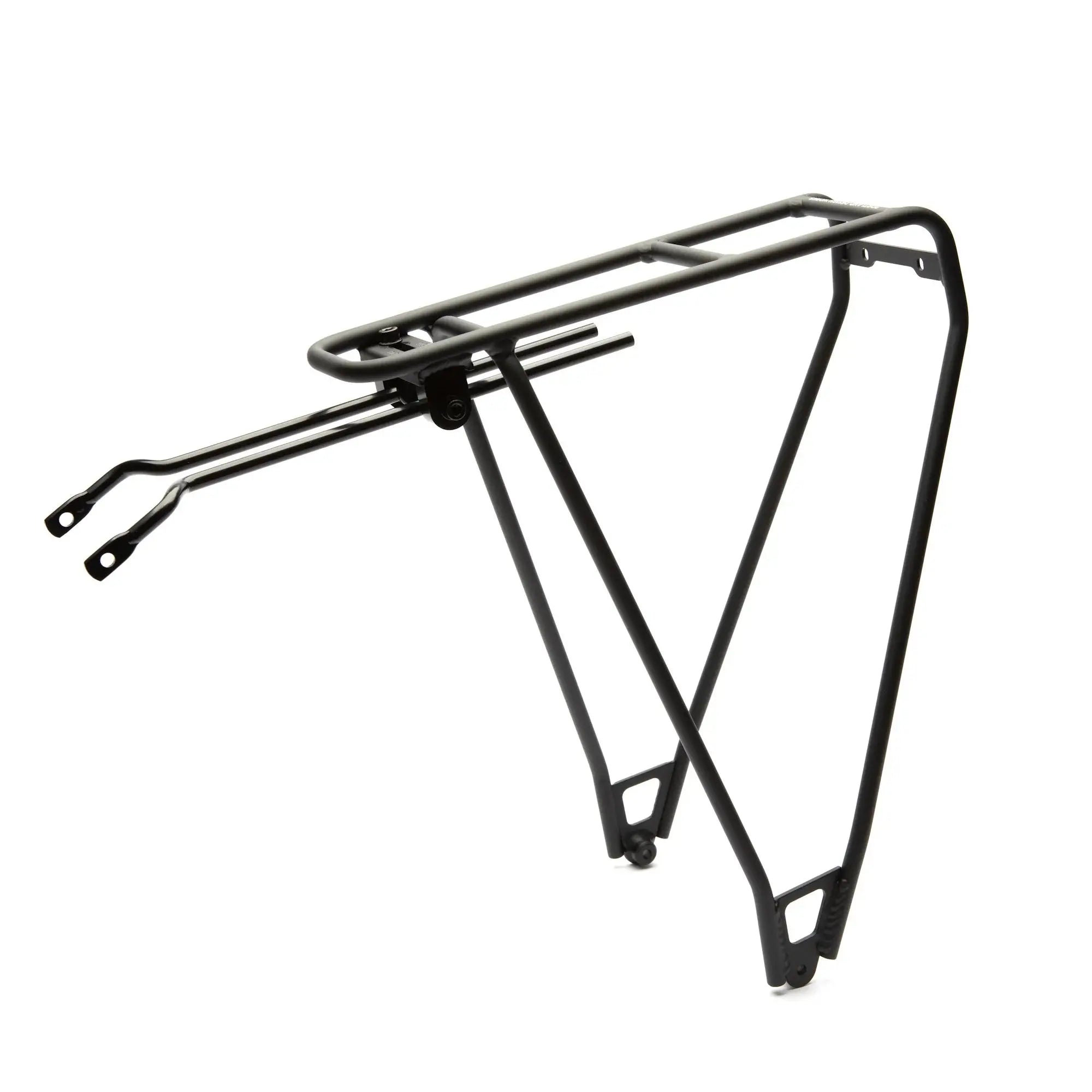

PDW OxRack Rear Rack in black, lightweight steel rear rack

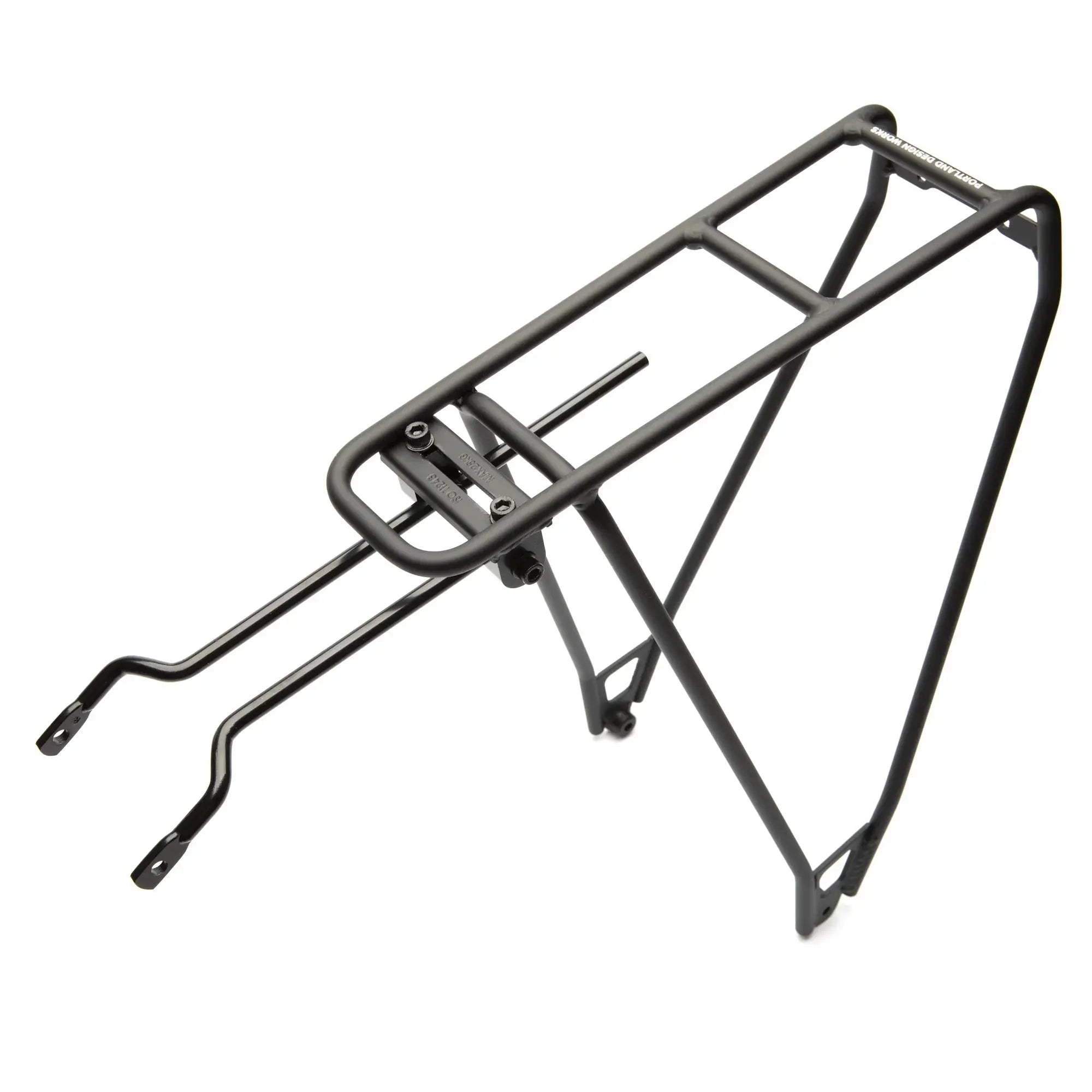

PDW OxRack Rear Rack deck detail

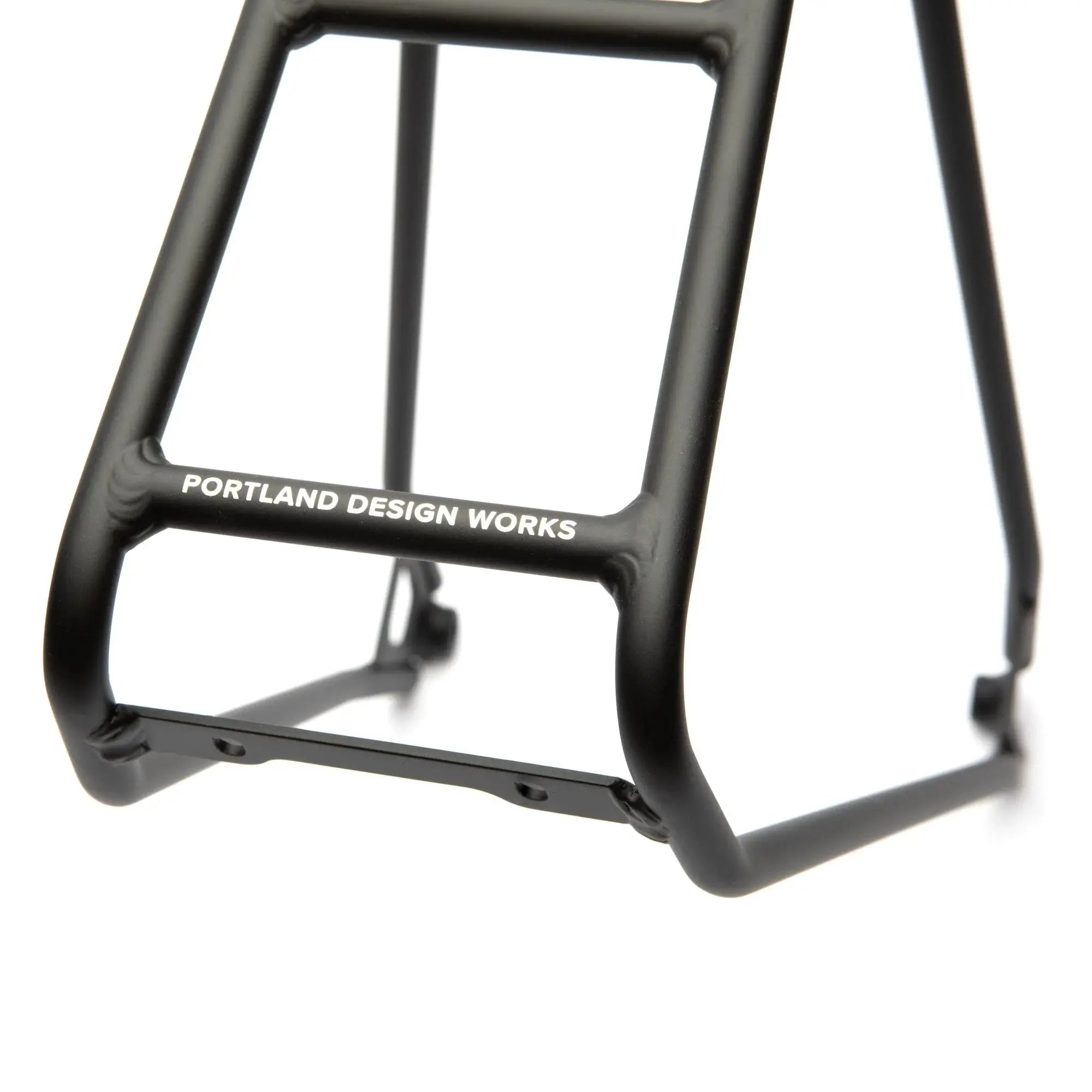

PDW OxRack Rear Rack integrated leg spacers

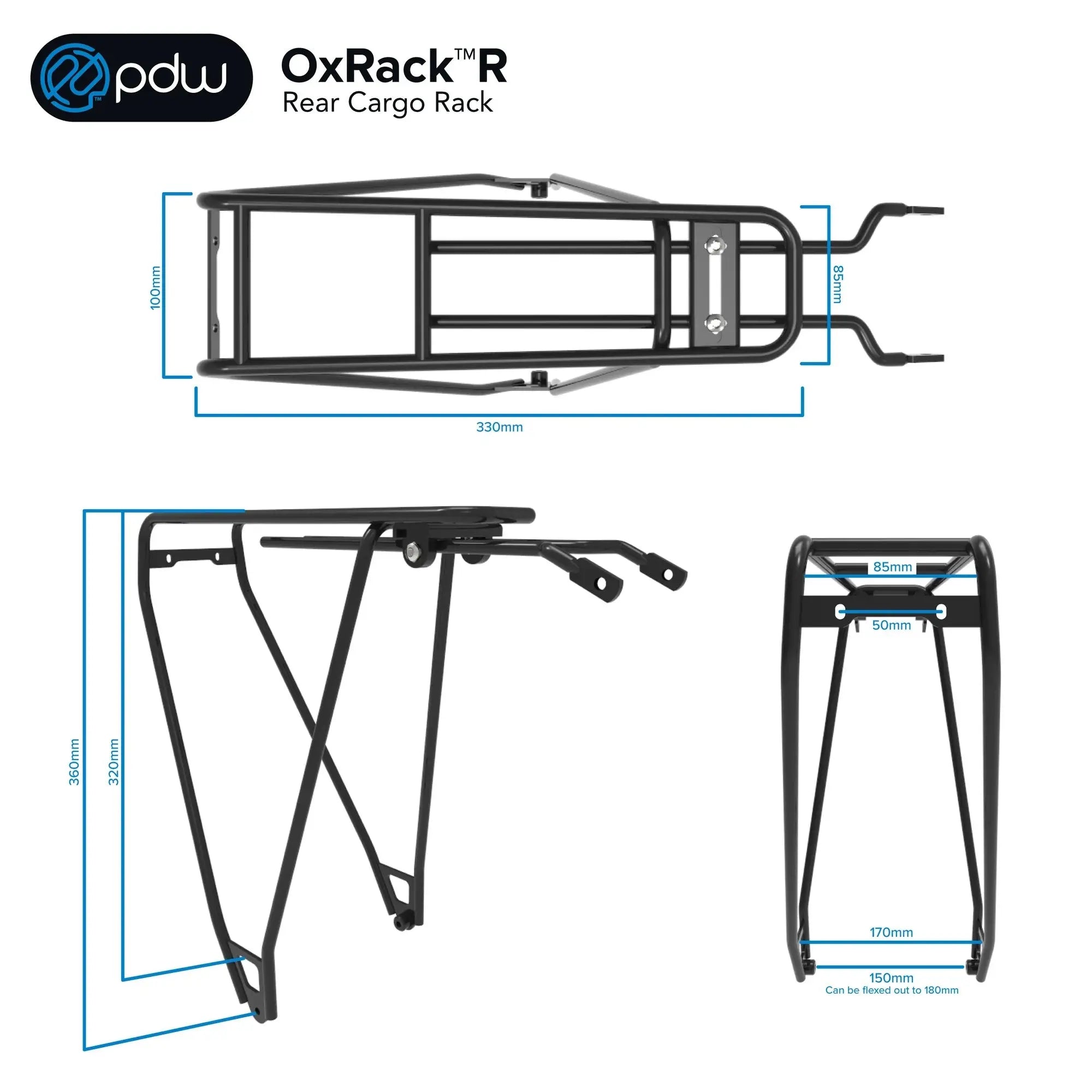

PDW OxRack Rear Rack dimension diagram, 330mm deck length
PDW OxRack Rear Rack in black, lightweight steel rear rack
PDW OxRack Rear Rack deck detail
PDW OxRack Rear Rack integrated leg spacers
PDW OxRack Rear Rack dimension diagram, 330mm deck length

PDW OxRack Rear Rack

PDW OxRack Rear Rack

Portland Design Works logo

What Makes the PDW OxRack Rear Easy to Mount Near Awkward Dropouts?

Integrated spacers on the legs. Anyone who has tried to fit a rack around a disc caliper, a thru-axle, or a cluster of dropout hardware knows the usual routine: a fistful of washers, some guesswork, and a rack that ends up slightly crooked. PDW built the spacing into the legs so the rack sits square without the parts-bin archaeology. It is a small touch that saves a genuinely annoying twenty minutes.

At 500 grams this is the lightest rear rack PDW makes, and it still carries 55 pounds, which is more than most riders will ever put on it. The back has mounting holes sized for PDW's Rackstar taillight, so your rear light goes where it belongs instead of clamped to a seatpost your saddle bag is already fighting for. Lifetime warranty against defects in workmanship or materials.

Out of Stock
$65.00
$65.00
Shipping calculated at checkout.

Out of Stock

  • Orders over $100 ship free!
  • Estimated delivery: Aug 31 - Sep 04

Ask a question

The fields marked * are required.

more details:

Portland Design Works logo

Specifications

  • Model: OxRack Rear Rack
  • Position: Rear
  • Max load: 25 kg / 55 lbs
  • Weight: 500 g / 1.1 lbs
  • Deck length: 330 mm
  • Deck width: 85 mm, flaring to 100 mm at the rear
  • Leg mounting hole to top of deck: 370 mm
  • Taillight bracket holes: 50 mm center to center
  • Notable feature: Integrated spacers on the legs for mounting near complex dropouts
  • Color: Black
  • Warranty: Lifetime against defects in workmanship or materials

FAQ

How much weight can it carry?

25 kg, or 55 lbs. That is well beyond what most commuters and light tourers will load, despite it being the lightest rack PDW makes at 500 grams.

What are the integrated spacers?

The legs have spacers built in, so you do not need a stack of washers to clear a disc caliper or awkward dropout hardware. The rack sits square without the usual fiddling.

What are the deck dimensions?

The deck is 330mm long and 85mm wide, flaring to 100mm at the back. From the center of the leg mounting hole to the top of the deck is 370mm, which is the number to check against your frame.

Can I mount a taillight to it?

Yes. The rear has taillight bracket holes spaced 50mm center to center, sized for the PDW Rackstar. Many other rack-mount taillights use the same spacing.

Is there a warranty?

PDW guarantees it for life against defects in workmanship or materials, and keeps replacement parts in stock.

Best For

Commuters and light tourers who want a rack that disappears under load Bikes with disc brakes or busy dropouts where rack fitment gets fiddly Riders running panniers or a saddle pack off the back Pairing with the PDW Rackstar taillight, which bolts straight to the deck
