The Pilo D778 is the replacement rear derailleur hanger for YT Jeffsy CF from 2016 to 2018, Jeffsy AL from 2016 to 2019, and Capra CF and AL from 2018 to 2019. Read the overview
1 in stock
- Free shipping on orders over $100. US addresses only.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Which YT Bikes Does the Pilo D778 Derailleur Hanger Fit?

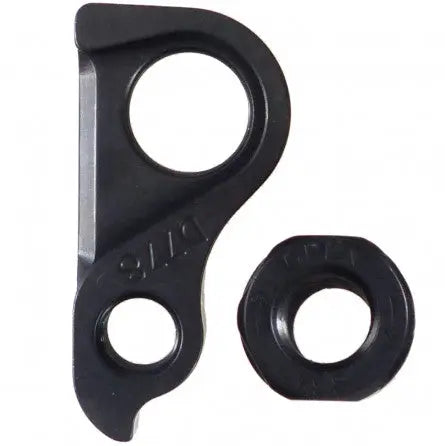

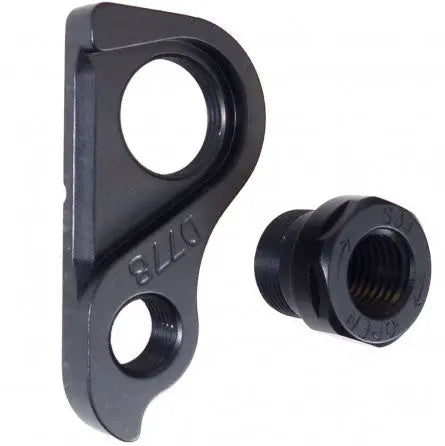

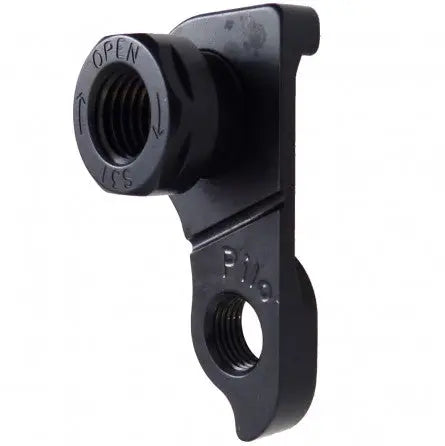

The Pilo D778 is the replacement rear derailleur hanger for YT Jeffsy CF from 2016 to 2018, Jeffsy AL from 2016 to 2019, and Capra CF and AL from 2018 to 2019. Pilo CNC machines it from 6061 T6511 billet aluminum and finishes it in hard black anodize, in an ISO 9001 certified facility. It mounts on the inside of the dropout and runs a 12 mm axle. Compare your current hanger against the photos before ordering, because YT changed hanger shapes between generations.
The S31 lock nut is included, and Pilo lists the axle thread size as M16x1 left hand. A derailleur hanger is the part designed to bend or shear before your frame or your rear derailleur does, so a bent one after a drive side crash is the system working correctly rather than failing. It is also the part that quietly ruins shifting long before anyone thinks to check it. If your indexing has gone vague and no amount of barrel adjustment fixes it, have the hanger checked with an alignment gauge before you start replacing anything more expensive. Hanger alignment at the Lab is billed bench work.
All the specs
- Pilo Catalog Number
- D778
- Replaces YT Part
- 500768
- Fits
- YT Jeffsy CF 2016 to 2018, Jeffsy AL 2016 to 2019, Capra CF and AL 2018 to 2019
- Material
- 6061 T6511 ASTM B221 billet aluminum
- Manufacturing
- CNC machined
- Finish
- Hard black anodized
- Frame Mounting
- Inner mounting
- Axle Diameter
- 12 mm
- Axle Thread Size
- M16x1, left hand
- Hardware Included
- S31 lock nut
- Quality System
- ISO 9001 2015 certified facility
- MPN
- D778
Good questions
Which YT models does the Pilo D778 hanger fit?
The Pilo D778 fits YT Jeffsy CF from 2016 to 2018, Jeffsy AL from 2016 to 2019, and Capra CF and AL from 2018 to 2019, and it replaces YT part number 500768. Some distributor listings extend the Capra range past 2019, so compare your current hanger to the photos before ordering.
Does the Pilo D778 come with the lock nut?
Yes, the S31 lock nut is included with the Pilo D778 hanger. Pilo lists the axle thread size as M16x1 left hand.
Should I straighten a bent derailleur hanger or replace it?
In the shop we will straighten a first bend and replace after that, because every bend and re-bend takes life out of the aluminum. A small tweak on a hanger that has never been bent is worth straightening. A hard hit, a visible crack, or a second bend in the same spot is a replacement.
How do I know if my derailleur hanger is bent?
The usual signs are shifting that will not index cleanly across the cassette, a rear derailleur that does not hang parallel to the cogs when you sight it from behind, and chain noise in the largest cogs. A hanger alignment gauge is the only way to confirm it, which is why it is worth having the bike checked rather than guessing.
