Overview

How does the PNW Cascade Dropper work on externally routed bikes?

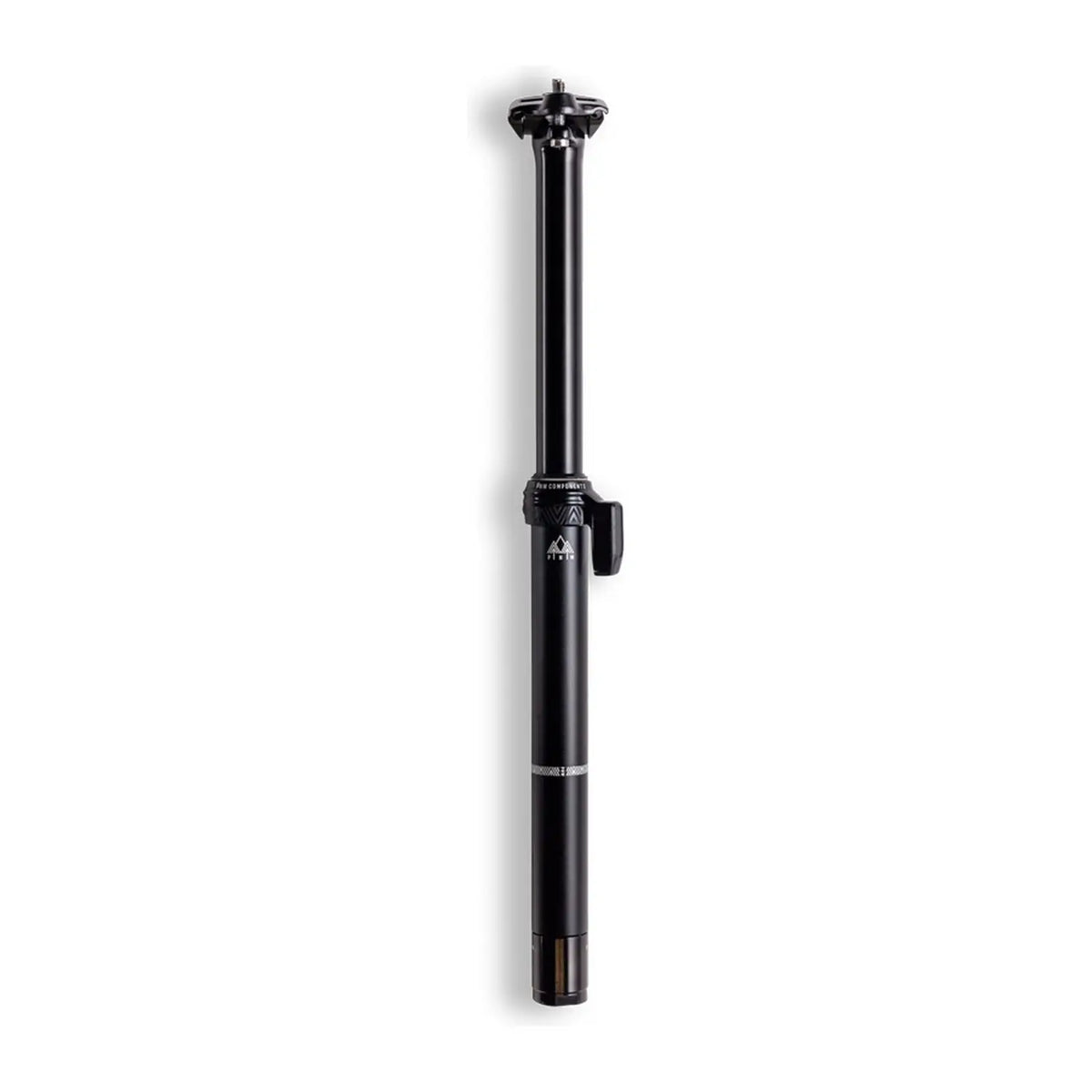

The PNW Components Cascade Dropper Post is PNW's externally routed dropper, built for bikes without internal cable routing. The cable stays out of the way as the post moves, and the sealed air cartridge is weatherproof and holds up in below-freezing temperatures. PNW calls it super reliable, built for flawless up and down service for the miles to come.

We carry it in 30.9mm and 31.6mm, both with 150mm of travel on a 26mm stanchion and a 7075 alloy body. The 30.9mm weighs 613g and the 31.6mm weighs 632g. Both are 450mm long, need 110mm of minimum insertion, and measure 205mm from the seat collar to the center of the rails. The post works with every PNW lever and most cable actuated levers from other brands, and it is covered by the PNW Lifetime Warranty. Made for riders who want a dependable dropper on a frame that only has external routing.

All the specs

15 specs in 3 groups. Open a group, or expand them all.

MPN CDP316150V3

Sensors and connectivity1 spec
Lever Compatibility
All PNW levers and most cable actuated levers from other brands
Build and box4 specs
Seatpost Material
7075 alloy
Weight
613g (30.9mm), 632g (31.6mm)
Warranty
PNW Lifetime Warranty
MPN
CDP309150V3 (30.9mm), CDP316150V3 (31.6mm)
Other details10 specs
Diameter
30.9mm or 31.6mm
Travel
150mm
Cable Routing
External
Cartridge
Sealed air cartridge
Stanchion Diameter
26mm
Total Length
450mm
Minimum Insertion Length
110mm
Full Insertion Length
245mm
Seat Collar to Center of Rails
205mm
Cable and Housing
Not included with the post; included only with the purchase of a lever kit

FAQ

Good questions

Get to know PNW Components

There's more to PNW Components than this one product. Our PNW Components page has the full PNW Components lineup we carry and more about the brand.

Visit the PNW Components page →
Will the Cascade fit my bike?

It fits frames that take a 30.9mm or 31.6mm seatpost and have external cable routing. Choose the diameter that matches your seat tube. The 150mm post needs 110mm of minimum insertion and 245mm of full insertion, so measure your seat tube before ordering.

What is the difference between the Cascade and the Pine?

PNW calls them essentially identical externally routed posts. The Cascade comes in 30.9mm and 31.6mm, and the Pine comes in 27.2mm.

Does the Cascade come with a lever?

No. It works with all PNW levers, including the Range Lever, Loam Lever Gen 2, and Puget 2x MTB Lever, and most cable actuated levers from other brands. Cable and housing come only with a lever kit.

How often does it need service?

PNW does not set a strict service interval. Service the post when it starts to feel sticky or slow down. PNW describes service as a quick at-home process.
