Where does the PNW Drop Bar Lever Kit mount on a drop bar?

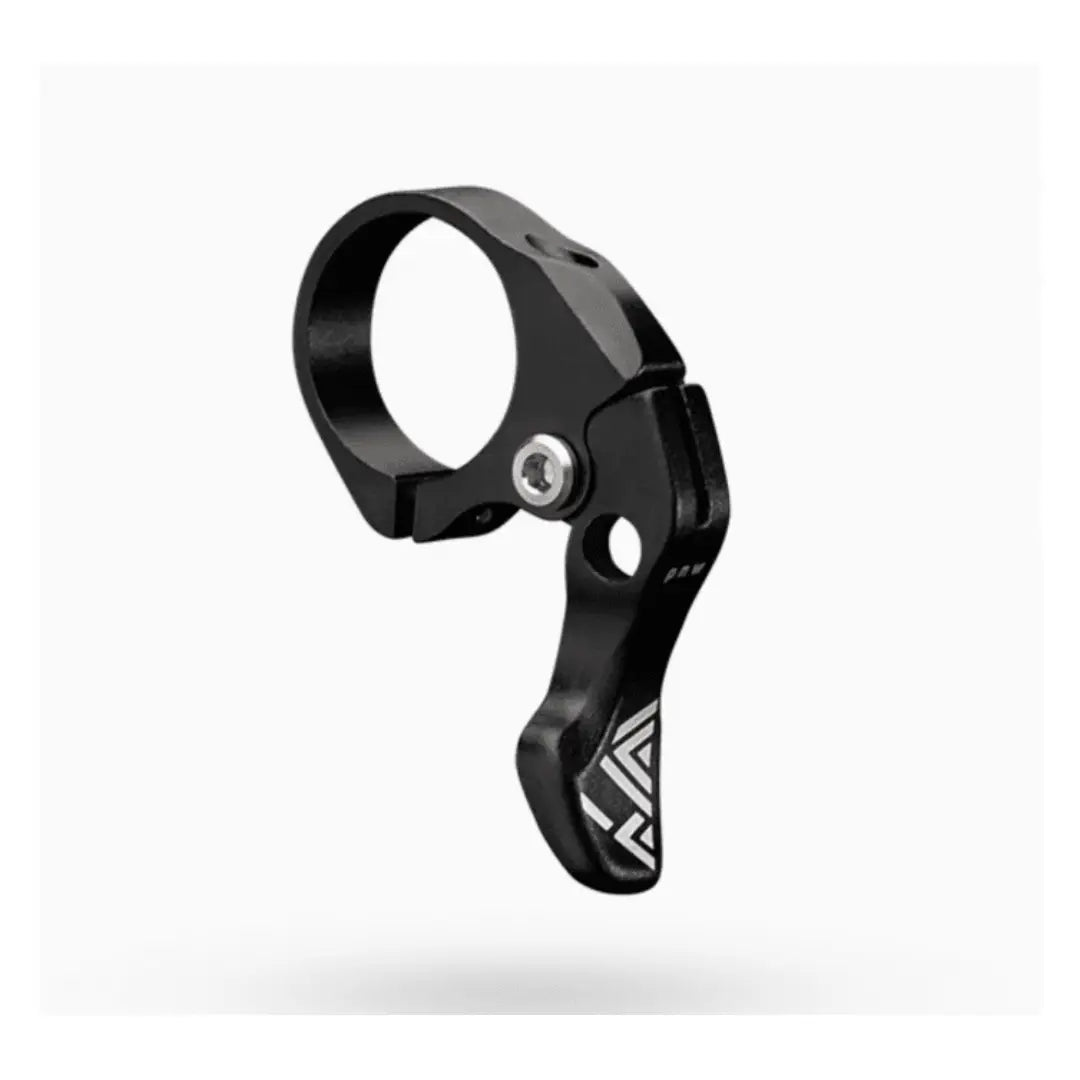

The PNW Components Drop Bar Lever Kit puts dropper post control on a drop bar bike, with two clamp sizes that decide where the lever sits. The 24mm clamp mounts in the curve of the drop for smooth access and can be wrapped into the handlebar tape. The 31.8mm clamp mounts on top of the bar near the stem for a top-of-bar grip similar to a mountain bike feel. Both kits include cable and housing, work with cable actuated dropper posts, and are backed by PNW's lifetime warranty.

The cable clamps at the lever with a barrel nut, and the kit includes a shifter cable, a 600mm length of flexible housing for the run under the bar tape, standard cable housing, a rotary ferrule, housing ends, and a crimpable cable end. If you run the 31.8mm clamp, position it so it does not interfere with your front shifter. The kit is built for drop bars and is not recommended for flat or mountain handlebars. Pick the clamp that puts the lever where your thumb wants it, on a CX race bike or a gravel bike that sees singletrack.

All the specs

MPN PTLVR318

Clamp Size
24mm (mounts in the curve of the drop) or 31.8mm (mounts on top of the bar near the stem)
Bar Type
Drop bars (not for flat or MTB bars)
Dropper Compatibility
Cable actuated dropper posts
Cable Attachment
Barrel nut clamps the cable at the lever
Includes
Drop bar lever, lever bolt, shifter cable, crimpable cable end, 600mm length of flexible cable housing, rotary ferrule, cable housing, housing ends, shifter cable end barrel adapter
Clamp Torque
2Nm maximum
Warranty
Lifetime
MPN
RAINIERCXLEVER (24mm), PTLVR318 (31.8mm)

FAQ

Good questions

Get to know PNW Components

There's more to PNW Components than this one product. Our PNW Components page has the full PNW Components lineup we carry and more about the brand.

Visit the PNW Components page →
What is the difference between the 24mm and 31.8mm clamp?

Where the lever sits. The 24mm clamp mounts in the curve of the drop bar and can be wrapped into the bar tape. The 31.8mm clamp mounts on top of the bar near the stem for a top-of-bar grip similar to a mountain bike feel.

Will this lever work with non-PNW dropper posts?

PNW lists the Drop Bar Lever Kit as working with cable actuated dropper posts. The cable is clamped at the lever with a barrel nut.

Does it come with cable and housing?

Yes. Both kits include a shifter cable, a 600mm length of flexible housing, standard cable housing, a rotary ferrule, housing ends, and a crimpable cable end.

Can I use it on flat or mountain bars?

No. It is built for drop bars and is not recommended for flat or mountain handlebars.
