PNW Components Range Dropper and Lever Bundle - 31.6mm | 175mm
Dropper Seatposts
PNW Components Range Dropper and Lever Bundle - 31.6mm · 175mm
PNW Components Range Dropper and Lever Bundle - 31.6mm | 175mm

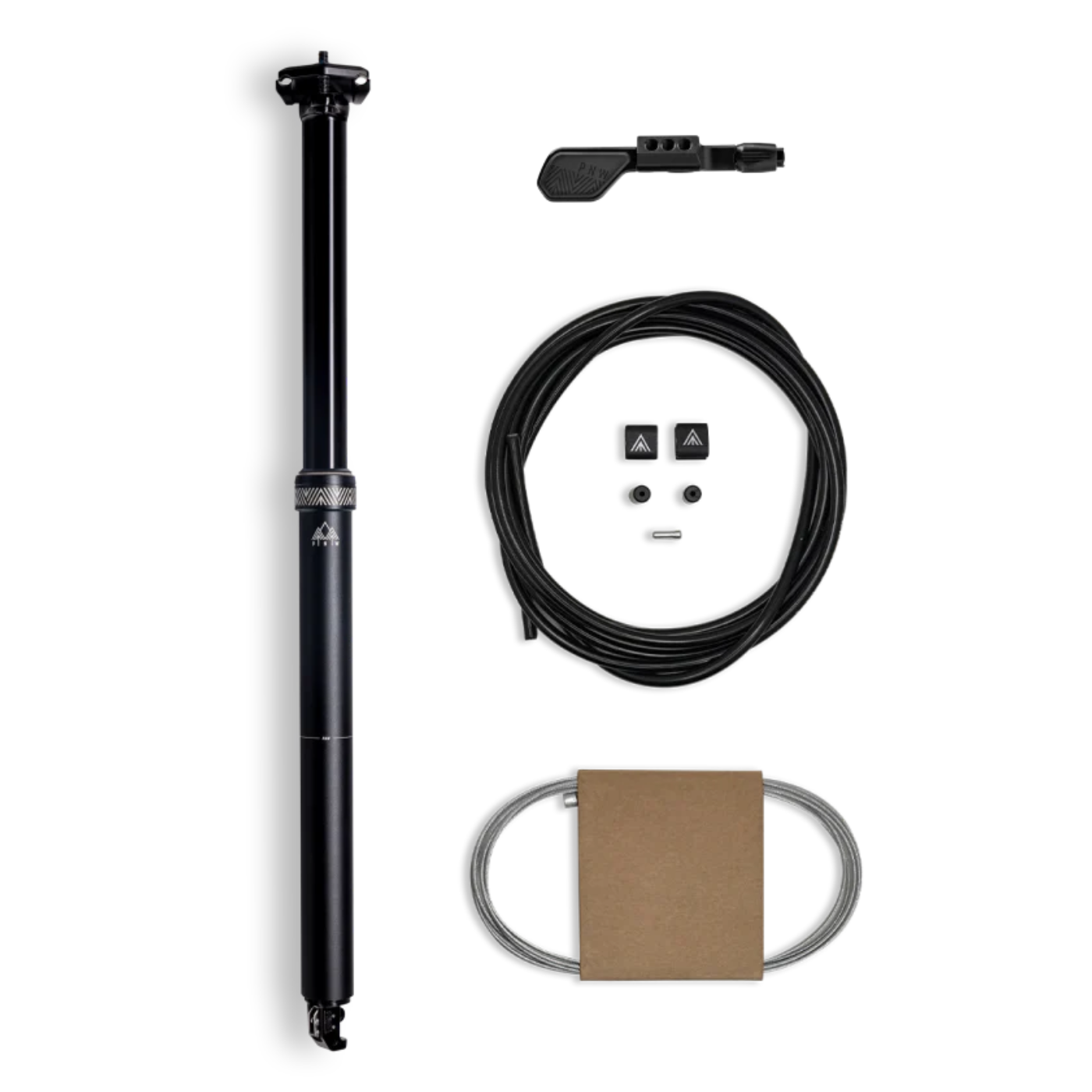

The PNW Components Range Dropper and Lever Bundle packages the Range Dropper Post, the Range Lever and a PNW Cable Kit in one purchase. Read the overview
At a glance
- Travel
- 175mm
- Diameter
- 31.6mm
- Stanchion Diameter
- 26mm
- Cartridge
- Sealed Air
Out of Stock
Ships free. Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
What Comes in the PNW Range Dropper Bundle?
The PNW Components Range Dropper and Lever Bundle packages the Range Dropper Post, the Range Lever and a PNW Cable Kit in one purchase. The 31.6mm Range Dropper Post at 175mm of travel uses a sealed air cartridge for no-fuss service, while the Range Lever's oversized sealed bearing keeps it operating smoothly in all conditions. PNW says the Range Dropper offers the most drop for your dollar when compared to its competitors.
PNW designed the Range Dropper to be a reliable dropper at the lowest price point possible. The Range Lever has a forged body, PNW's signature silicone thumb pad, and a 22.2mm mount with SRAM MMX direct mount built into the lever. The post is internally routed with no travel adjust, and the whole bundle is backed by the PNW Lifetime Warranty.
All the specs
19 specs in 3 groups. Open a group, or expand them all.
Sensors and connectivity1 spec
- Lever Mount
- 22.2mm mount with SRAM MMX direct mount built into lever
Build and box5 specs
- Post Weight
- 706g
- Lever Weight
- 45g
- Color
- Black
- Warranty
- PNW Lifetime Warranty
- MPN
- DP-RNG-316-175-KIT
Other details13 specs
- Diameter
- 31.6mm
- Travel
- 175mm
- Includes
- Range Dropper Post, Range Lever, PNW Cable Kit
- Cartridge
- Sealed Air
- Routing
- Internal
- Travel Adjust
- None
- Stanchion Diameter
- 26mm
- Total Length
- 518mm
- Minimum Insertion Length
- 150mm
- Full Insertion Length
- 293mm
- Seat Collar to Center of Rails
- 225mm
- Lever Cable Routing
- Stealth routing
- Lever sealing
- Oversized sealed bearing
FAQ
Good questions
Get to know PNW Components
There's more to PNW Components than this one product. Our PNW Components page has the full PNW Components lineup we carry and more about the brand.
Visit the PNW Components page →What is included in the Range Dropper and Lever Bundle?
The bundle includes the Range Dropper Post (31.6mm, 175mm travel), the Range Lever, and a PNW Cable Kit.
Will the 175mm Range Dropper fit my frame?
Your frame needs to accept an internally routed 31.6mm dropper post, and this 175mm size needs 150mm of minimum insertion with a total length of 518mm. If your bike uses a 34.9mm dropper, PNW recommends a 31.6mm to 34.9mm shim. Check your frame manufacturer's specs to confirm fit.
Can I use the Range Lever from this bundle with a different dropper post brand?
Yes. PNW lists the Range Lever as compatible with all cable-actuated dropper posts, so it stays useful even if you later switch dropper brands.
