Specifications

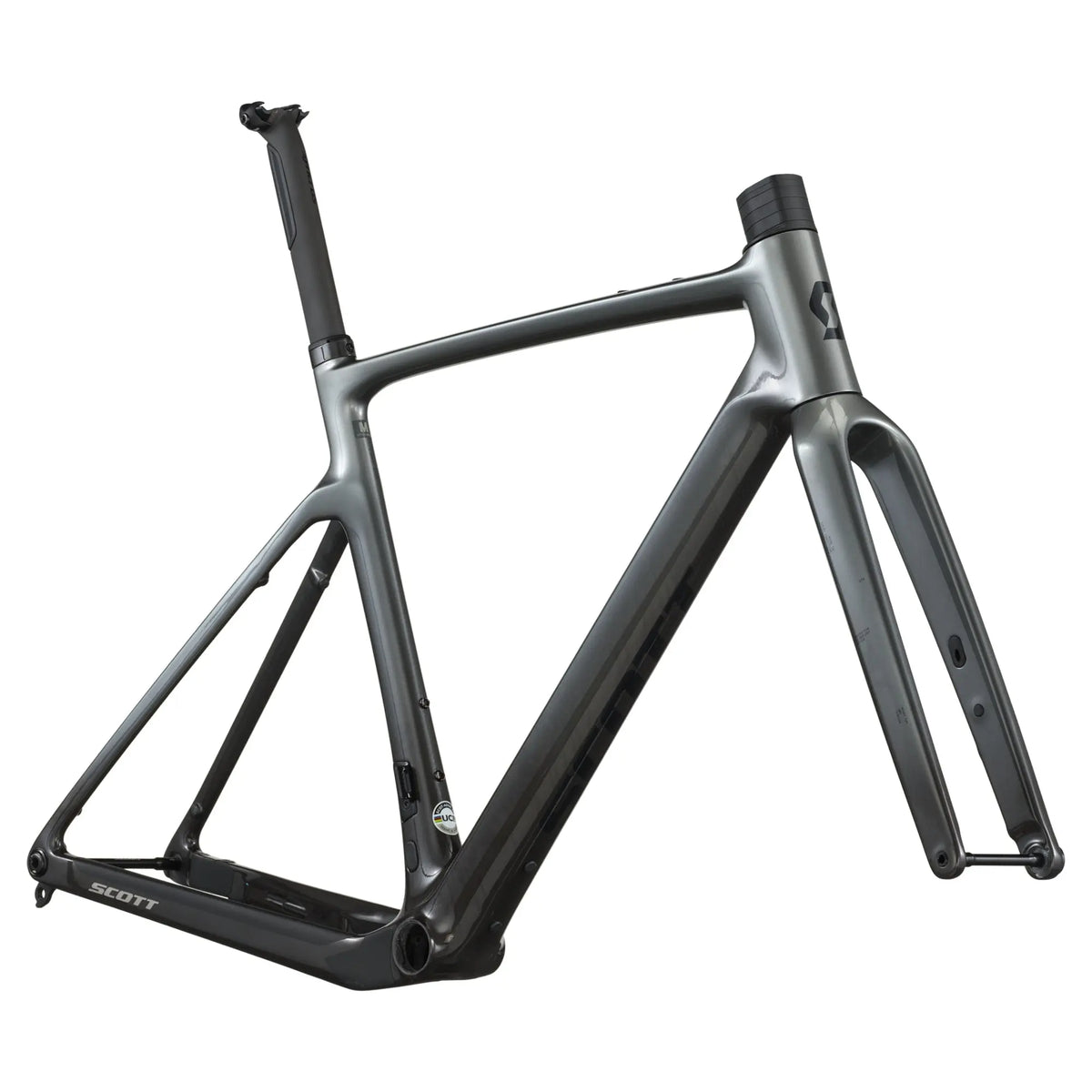

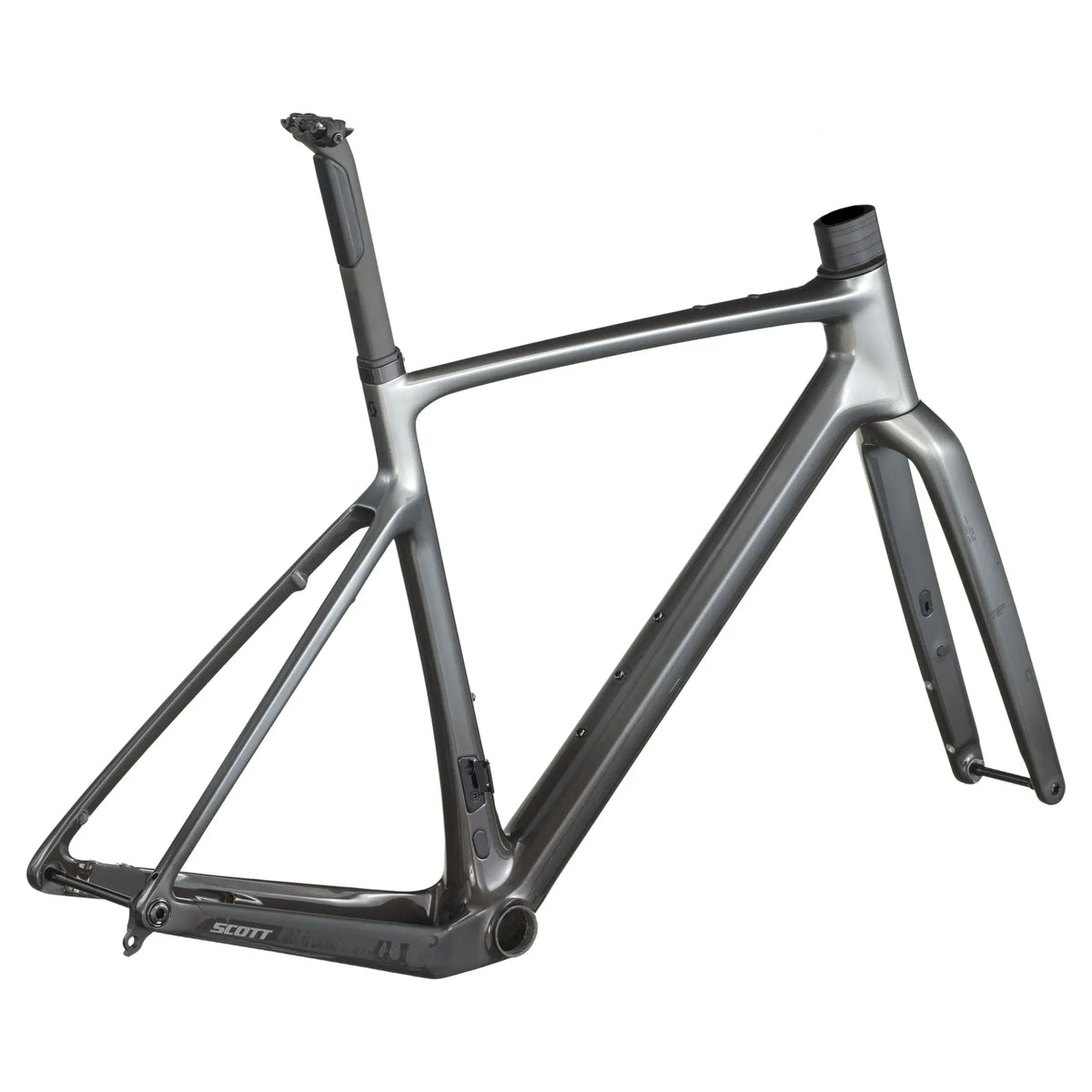

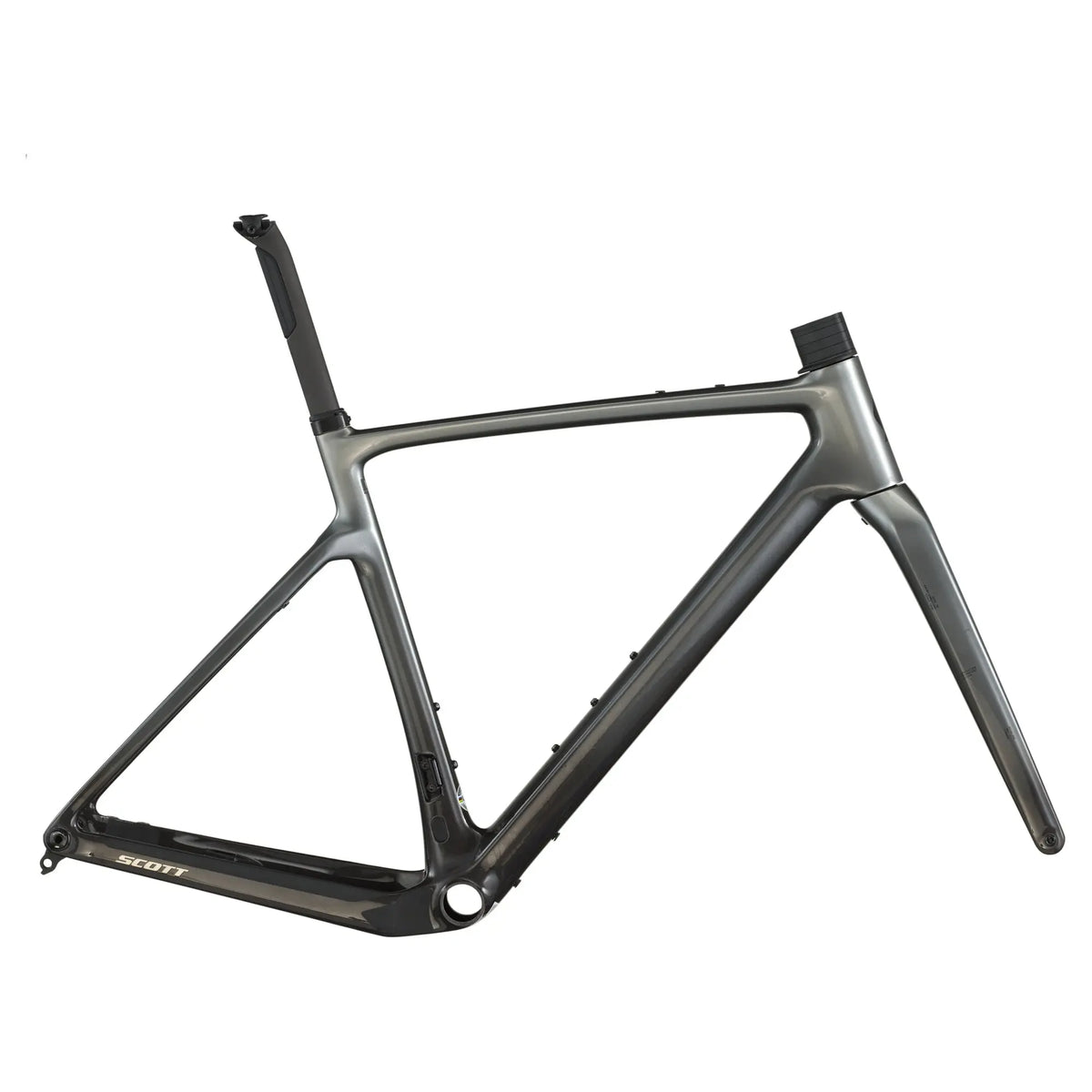

- Model: Scott Addict Gravel Team HMF Frameset
- MPN: 425722
- Color: Chrome Silver
- Sizes: XS, S, M, L, XL
- Discipline: Gravel
- Frame: HMF Carbon disc mainframe with UDH hanger, compatible with electronic and mechanical shifting
- Fork: HMF Carbon fork for disc brake
- Frameset Includes: Frame, fork, Acros AIF-1135 headset, expander for carbon steerer and top cap, Syncros SP-R101-CF seatpost, Syncros SL Road plug-in thru axle
- Tire Clearance: 45mm, or 40mm with fenders
- Frame Features: Aero tube shapes, internal cable routing, replaceable UDH derailleur hanger, Syncros fender kit ready, top tube bag mount, extra down tube mount, two bottle cage positions
- Approx Weight: Frame 990g, fork 435g
- Max System Weight: 120kg, bike plus rider plus equipment
- Riding Condition: Scott condition 2, general purpose riding
Sizing Guide
- XS / 49: Reach 374.1mm, stack 519.0mm, standover 759mm
- S / 52: Reach 378.4mm, stack 544.4mm, standover 786mm
- M / 54: Reach 387.1mm, stack 565.3mm, standover 807mm
- L / 56: Reach 398.2mm, stack 589.9mm, standover 828mm
- XL / 58: Reach 406.1mm, stack 609.7mm, standover 847mm
Scott publishes sizing through its Smartfit system rather than a fixed height chart. Use reach and stack against your current bike as the starting point, and if you are between sizes, a professional fit at Dialed Cycling Lab is the best way to lock it in before you build.
Geometry
Values shown in size order: XS / S / M / L / XL.
- Head Tube Angle: 70.0 / 70.0 / 71.0 / 71.0 / 71.0 degrees
- Seat Tube Angle: 74.5 / 74.0 / 73.5 / 73.0 / 73.0 degrees
- Reach: 374.1mm / 378.4mm / 387.1mm / 398.2mm / 406.1mm
- Stack: 519.0mm / 544.4mm / 565.3mm / 589.9mm / 609.7mm
- Top Tube (Horizontal): 518.0mm / 534.5mm / 554.5mm / 578.5mm / 592.5mm
- Head Tube Length: 95.0mm / 122.0mm / 140.0mm / 166.0mm / 187.0mm
- Chainstay: 425.0mm on all sizes
- Wheelbase: 1009.4mm / 1022.9mm / 1029.2mm / 1048.7mm / 1063.5mm
- Standover: 759.0mm / 786.0mm / 807.0mm / 828.0mm / 847.0mm
- BB Height: 283.0mm on all sizes
- BB Offset: -71.0mm on all sizes
FAQ
What comes with the Scott Addict Gravel Team HMF Frameset?
The frame and fork, plus the Acros AIF-1135 headset, the expander and top cap for the carbon steerer, a Syncros SP-R101-CF carbon seatpost, and a Syncros SL Road plug-in thru axle. Drivetrain, brakes, wheels, cockpit, and saddle are up to you.
Which drivetrains fit?
The frame carries a UDH derailleur hanger and Scott lists it as compatible with both electronic and mechanical shifting. It runs 1x or 2x, and for 1x the front derailleur plate swaps for a chain guide or closing plate.
How much tire clearance does it have?
Up to 45mm, or 40mm with the Syncros fender kit installed. The frame has hidden fender mounts, a top tube bag mount, an extra down tube mount for a third bottle or tool box, and two bottle cage positions.
What sizes does it come in, and what is in stock?
XS, S, M, L, and XL. This listing has size L in stock now. Other sizes are available for special order, so reach out to the shop and we will get your size on the way, and if you are between sizes we can talk it through before you build.
Best For
The rider building a custom gravel bike who wants Scott's carbon Addict Gravel platform as the foundation: 45mm clearance, aero tube shapes, internal routing, UDH, and the mounts to go long. Spec it for gravel racing, mixed surface adventure, or a fast all-road build with fenders.
