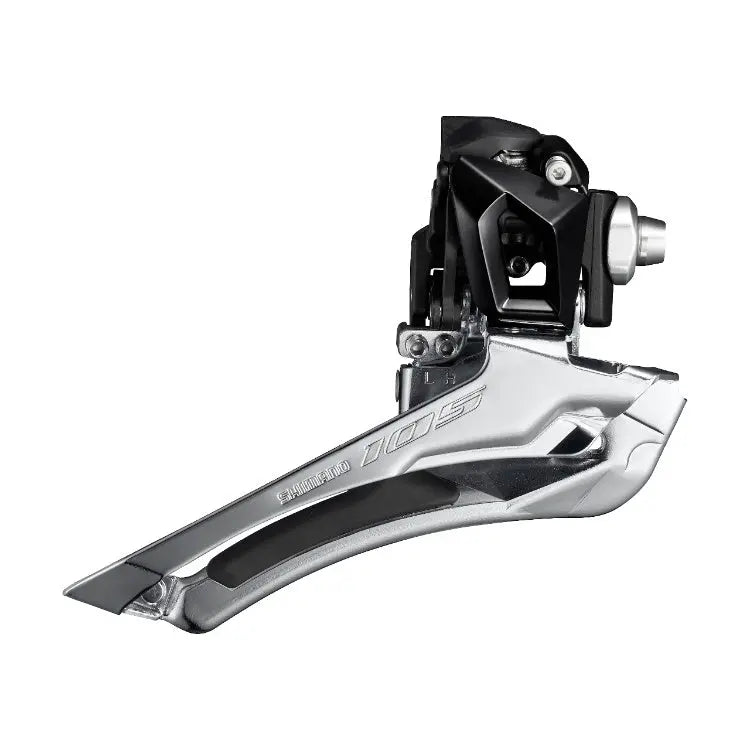

Shimano 105 FD-R7000 Front Derailleur - 2x11-Speed | Braze-On
Front Derailleurs
Shimano 105 FD-R7000 Front Derailleur - 2x11-Speed · Braze-On
Shimano 105 FD-R7000 Front Derailleur - 2x11-Speed | Braze-On
The Shimano 105 FD-R7000 Front Derailleur in the braze-on version delivers light, precise 2x11-speed front shifting thanks to a new link construction that sharpens lever feel and an integrated cable tension adjuster that keeps setup dialed. Read the overview
At a glance
- Speed
- 2x11-Speed
- Mount
- Braze-On
- Series
- Shimano 105 R7000
- Cable pull
- Bottom Pull
1 in stock
Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
What makes the Shimano 105 FD-R7000 braze-on front derailleur shift so cleanly?
The Shimano 105 FD-R7000 Front Derailleur in the braze-on version delivers light, precise 2x11-speed front shifting thanks to a new link construction that sharpens lever feel and an integrated cable tension adjuster that keeps setup dialed. Its cage is optimized for disc-brake road bikes, and multiple cable routing options let it drop into a wide range of modern frames. As part of Shimano's 105 R7000 series, it carries trickle-down engineering from Dura-Ace and Ultegra into a component that earns its place on daily riders and race bikes alike.
The braze-on design mounts to a frame tab and trims weight to 96g, lighter than the 111g clamp-band version. It handles chainrings from 46 up to 53 teeth with a 16-tooth capacity and a natural stroke feel that makes front shifts feel effortless under load. This is the front derailleur for riders running a braze-on tab who want reliable, no-fuss shifting from a proven Shimano drivetrain.
All the specs
13 specs in 3 groups. Open a group, or expand them all.
Sensors and connectivity2 specs
- Mount
- Braze-On
- Shifter Compatibility
- Shimano Road 2x11-Speed
Build and box3 specs
- Weight
- 96g
- Color
- Black
- MPN
- IFDR7000FL
Other details8 specs
- Series
- Shimano 105 R7000
- Speed
- 2x11-Speed
- Style
- Down Swing
- Cable Pull
- Bottom Pull
- Max Chainring
- 53T
- Chainring Range
- 46-53T
- Front Derailleur Capacity
- 16T
- Chainstay Angle
- 61-66 degrees
FAQ
Good questions
Get to know Shimano
There's more to Shimano than this one product. Our Shimano page has the full Shimano lineup we carry and more about the brand.
Visit the Shimano page →What is the difference between the braze-on and clamp-band FD-R7000?
The braze-on version bolts directly to a frame-mounted derailleur tab and weighs 96g, while the clamp-band version wraps around the seat tube. Choose braze-on only if your frame has a braze-on tab.
Is the FD-R7000 compatible with Ultegra and Dura-Ace shifters?
Yes. The FD-R7000 works with Shimano's 11-speed road shifters, including 105 R7000, Ultegra R8000, and Dura-Ace R9100 mechanical levers.
What is the largest chainring this front derailleur supports?
It supports a maximum 53-tooth outer chainring, with a 46 to 53T range and a 16-tooth capacity between the large and small rings.
