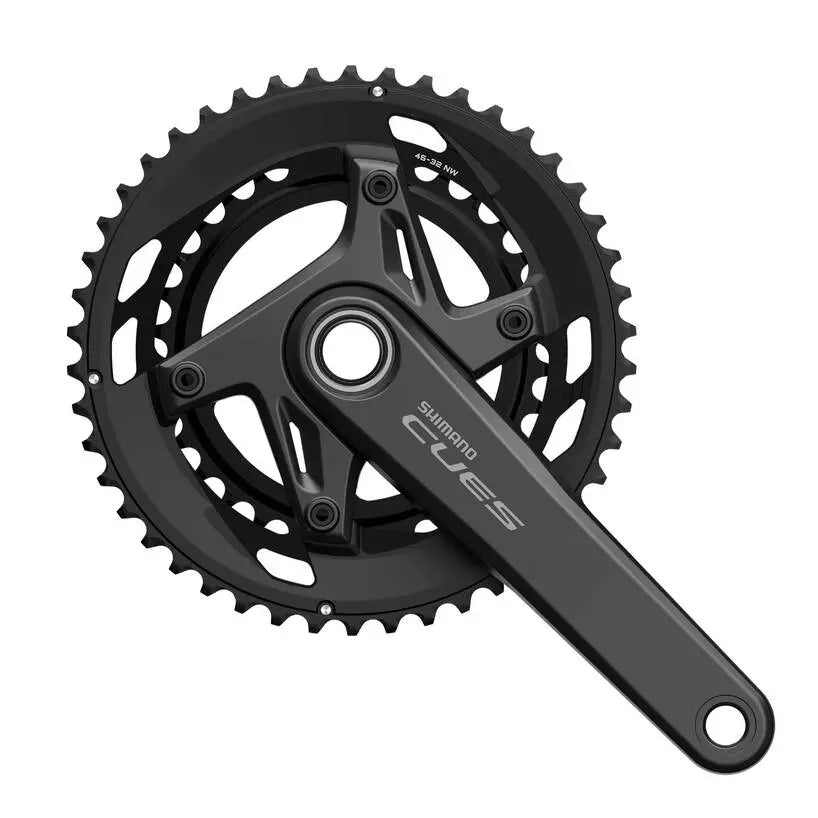

Shimano CUES FC-U6040-2 Crankset - 170mm | 9/10/11-Speed | 46/32t
Cranksets
Shimano CUES FC-U6040-2 Crankset - 170mm · 9/10/11-Speed · 46/32t
Shimano CUES FC-U6040-2 Crankset - 170mm | 9/10/11-Speed | 46/32t
Why the Shimano CUES FC-U6040-2 suits gravel and all-road builds
The Shimano CUES FC-U6040-2 Crankset in 170mm with 46/32t rings brings 2x gearing to gravel and all-road bikes without the cost of a road groupset. Read the overview
At a glance
- Speed
- 2x9, 2x10, 2x11-speed
- Chainrings
- 46/32T, fitted
- Model
- FC-U6040-2
- Series
- Shimano CUES U6000
1 in stock
Free shipping on US orders over $100.
Free in-store pickup in Vancouver, WA. Usually ready in 4 hours.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Why the Shimano CUES FC-U6040-2 suits gravel and all-road builds
The Shimano CUES FC-U6040-2 Crankset in 170mm with 46/32t rings brings 2x gearing to gravel and all-road bikes without the cost of a road groupset. HOLLOWTECH II hollow-forged crank arms keep weight down while holding the stiffness that puts your effort into the rear wheel instead of into flex. The 46/32t pairing gives a usable top end for pavement alongside a 32 tooth inner ring that keeps loaded climbs and long gravel days manageable rather than survivable.
It runs a 110mm bolt circle, a 152mm Q-factor, and a 47mm chain line, which is the geometry modern gravel frames are built around. The outboard bearing interface fits 68 and 70mm threaded shells, with Shimano recommending the BB-RS501 threaded or BB-RS500-PB press fit bottom bracket, sold separately. It runs Shimano LINKGLIDE or HG 11-speed chains as part of the CUES 9/10/11-speed platform. Worth noting before you buy: this ships as the crankset with both chainrings fitted, supplied without a chainguard and without bottom bracket parts.
All the specs
14 specs in 3 groups. Open a group, or expand them all.
Sensors and connectivity1 spec
- Compatible chain
- Shimano LINKGLIDE or HG 11-speed
Build and box2 specs
- MPN
- EFCU60402CX62
- Materials
- Aluminum crank arms, aluminum outer ring, aluminum spider arm with painted finish
Other details11 specs
- Model
- FC-U6040-2
- Series
- Shimano CUES U6000
- Speed
- 2x9, 2x10, and 2x11-speed
- Crank arm length
- 170mm
- Chainrings
- 46/32T, fitted
- Bolt circle diameter
- 110mm
- Q-factor
- 152mm
- Chain line
- 47mm
- Construction
- HOLLOWTECH II, hollow-forged
- Bottom bracket type
- Outboard, for 68 and 70mm threaded shells
- Recommended bottom bracket
- BB-RS501 threaded or BB-RS500-PB press fit, sold separately
In the box
- Crankset with 46/32T chainrings. No chainguard
- No bottom bracket parts.
FAQ
Good questions
Get to know Shimano

There's more to Shimano than this one product. Our Shimano page has the full Shimano lineup we carry and more about the brand.
Visit the Shimano page →Which bottom bracket do I need?
Shimano lists the BB-RS501 for threaded frames and the BB-RS500-PB for press fit frames. Neither is included, so add one to your order. The crankset fits 68 and 70mm threaded bottom bracket shells and uses an outboard bearing interface.
Does it come with chainrings?
Yes. The 46/32T rings are fitted, so this is a complete crank and chainring set. What is not included is a chainguard or any bottom bracket parts, which is what the W/O CG and W/O BB PARTS notation on Shimano's packaging refers to.
What chain does the FC-U6040-2 run?
It runs a Shimano LINKGLIDE or HG 11-speed chain. CUES uses a single chain width across its 9, 10, and 11-speed drivetrains, which is one of the things that makes the platform simpler to service than running separate chains per speed count.
How does 46/32t compare to a road compact?
A road compact is typically 50/34t. The 46/32t here drops both rings, trading a little top end speed for easier climbing gears, which is the right tradeoff on gravel and loaded riding where you spend more time going up than sprinting. The FC-U6040-2 is also offered in 50/34T if you want the road-oriented ratio.
