Shimano CUES FD-U6030 Front Derailleur - 2x9/10-Speed | Band Clamp
Front Derailleurs
Shimano CUES FD-U6030 Front Derailleur - 2x9/10-Speed · Band Clamp

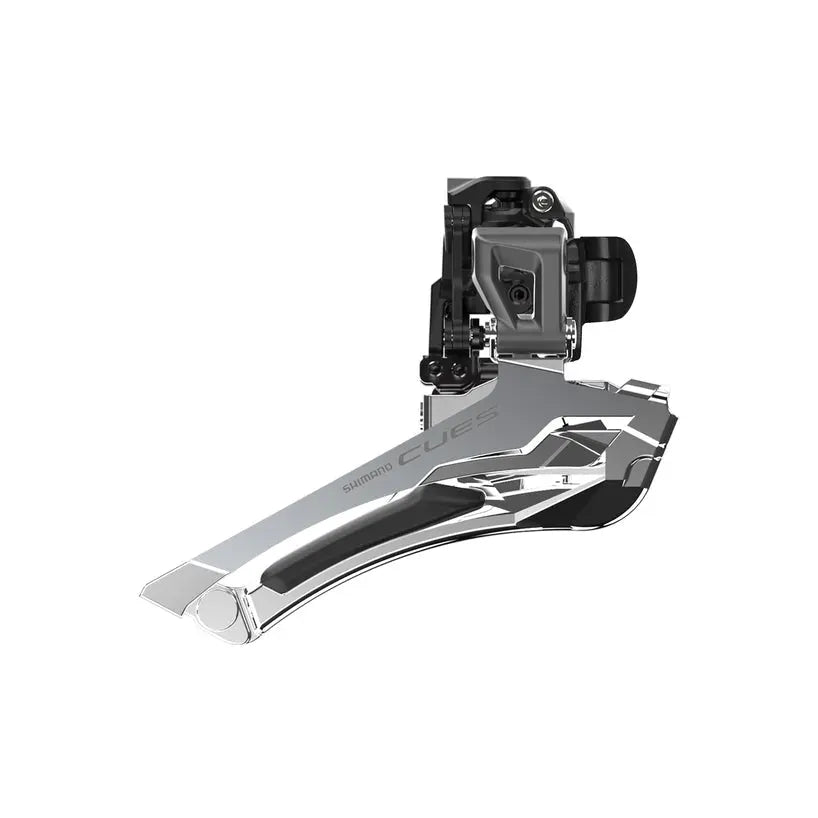

Shimano CUES FD-U6030 Front Derailleur - 2x9/10-Speed | Band Clamp
The Shimano CUES FD-U6030 Front Derailleur is built for 2x9-speed and 2x10-speed drop bar drivetrains and uses toggle link construction to deliver lighter front shift action with a smoother, more natural lever feel. Read the overview
Out of Stock
- Free shipping on orders over $100. US addresses only.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
What Makes the Shimano CUES FD-U6030 a Smooth-Shifting Drop Bar Front Derailleur?
The Shimano CUES FD-U6030 Front Derailleur is built for 2x9-speed and 2x10-speed drop bar drivetrains and uses toggle link construction to deliver lighter front shift action with a smoother, more natural lever feel. The 2.5mm wider chain line opens up real tire clearance for wider gravel and all-road tires without the derailleur cage rubbing or fouling on bigger rubber. An integrated cable tensioner makes setup and ongoing adjustment significantly easier than older-generation Shimano front derailleurs.
The X variant uses a 34.9mm band clamp that ships with 28.6mm and 31.8mm shims, covering the three most common drop bar frame seat tube diameters in one part number. Down-swing geometry with down-pull cable routing for compatibility with traditional cable paths, and a 46-50T max top chainring with a 62-66° chainstay angle window. Compatible across the Shimano CUES drop bar ecosystem and works with most 9 and 10-speed road levers using compatible cable pull. The right choice for riders building or refreshing a CUES-equipped gravel or recreational road bike. MPN: FD-U6030-X.
All the specs
MPN EFDU6030X
- Model
- FD-U6030-X
- Series
- Shimano CUES drop bar
- Speed
- 2x9 and 2x10 road / gravel
- Mount
- Band clamp, 34.9mm with 28.6mm and 31.8mm adapters
- Cable Pull
- Down-pull
- Design
- Down Swing with toggle link construction
- Top Gear Capacity
- 46 to 50T
- Total Capacity
- 16T
- Chainstay Angle
- 62 to 66 degrees
- Chain Line
- 2.5mm outboard of conventional road for wider tire clearance
- UPC
- 192790748702
Good questions
Get to know Shimano
There's more to Shimano than this one product. Our Shimano page has the full Shimano lineup we carry and more about the brand.
Visit the Shimano page →What does the 2.5mm wider chain line actually do for me?
It moves the derailleur cage outboard by 2.5mm compared to a conventional road front derailleur. The practical result is more tire clearance, so you can run wider gravel or all-road tires (think 40mm and up) without the rear of the cage rubbing on tall tread.
Will this work with my existing Shimano 10-speed road shifters?
It is designed inside the CUES drop bar ecosystem and works best with CUES levers, but it is compatible with most 9 and 10-speed road shifters using standard front cable pull. If you are mixing groups, verify cable pull ratio before purchase.
What is toggle link construction?
Toggle link is the internal linkage geometry inside the derailleur body that translates cable pull into cage movement. The CUES design produces lighter lever effort and a smoother, more natural shift feel compared to older Shimano front derailleur architectures.
