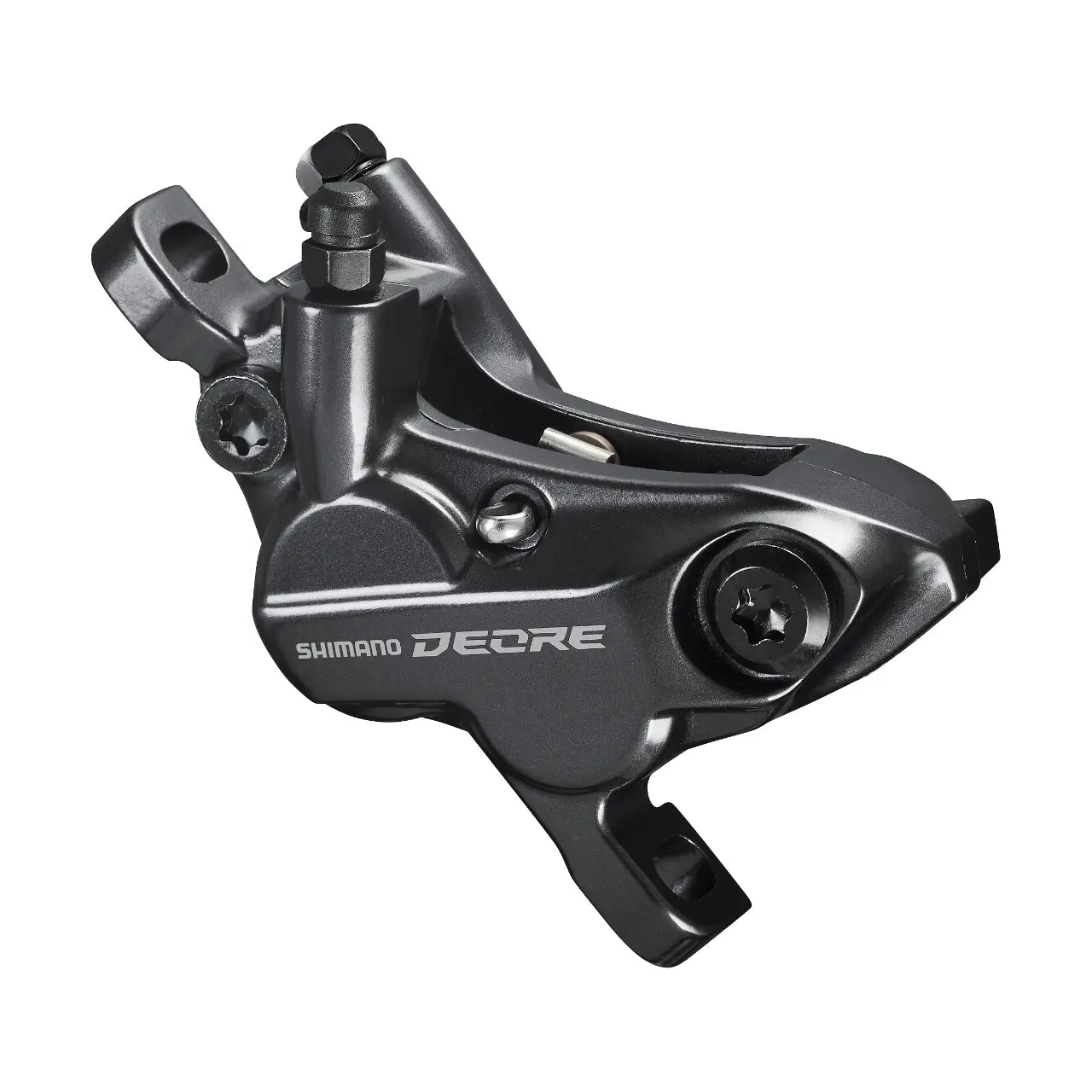

Shimano DEORE BR-M6120 Hydraulic Disc Brake Caliper - 4-Piston | Post Mount
Disc Brakes
Shimano DEORE BR-M6120 Hydraulic Disc Brake Caliper - 4-Piston · Post Mount
Shimano DEORE BR-M6120 Hydraulic Disc Brake Caliper - 4-Piston | Post Mount
The Shimano Deore BR-M6120 brings 4-piston hydraulic braking to the Deore price tier, delivering significantly more stopping force and more even pad wear than standard 2-piston setups at this level. Read the overview
1 in stock
- Free shipping on orders over $100. US addresses only.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Why Do Trail Riders Upgrade to the Shimano Deore BR-M6120 4-Piston Caliper?
The Shimano Deore BR-M6120 brings 4-piston hydraulic braking to the Deore price tier, delivering significantly more stopping force and more even pad wear than standard 2-piston setups at this level. Four pistons mean a larger total pad contact area across the rotor, which translates to greater braking authority on demanding descents and better heat management when trails get steep and sustained. For trail riders who have outgrown the limits of 2-piston braking, especially with larger rotors or heavier builds, the BR-M6120 is the upgrade that changes the feel of descending without stepping up to XT or XTR pricing.
Post-mount caliper. Compatible with Shimano Deore M6100 series and other compatible mineral oil hydraulic MTB brake lever systems. Sold as caliper only. Lever and hose sold separately. A meaningful power upgrade at the most accessible price point in Shimano's 4-piston lineup.
All the specs
- Model
- BR-M6120
- Series
- Shimano Deore M6100
- Pistons
- 4-piston
- Mount
- Post-mount
- Hydraulic Fluid
- Shimano mineral oil
- Sold As
- Caliper only (lever and hose sold separately)
Good questions
Get to know Shimano
There's more to Shimano than this one product. Our Shimano page has the full Shimano lineup we carry and more about the brand.
Visit the Shimano page →What levers are compatible with the BR-M6120?
The BR-M6120 is compatible with Shimano hydraulic MTB brake levers using mineral oil, including BL-M6100, BL-M4100, and other Shimano mineral oil MTB levers. Do not use with DOT fluid systems.
What rotor sizes work with the BR-M6120?
The BR-M6120 post-mount caliper supports 160mm, 180mm, and 203mm rotors using appropriate post-mount adapters. Most riders run 180mm or 203mm to take full advantage of the 4-piston power capacity.
Is the BR-M6120 a significant upgrade from a 2-piston Deore caliper?
Yes. Four pistons provide meaningfully more pad contact and braking force than 2-piston designs, especially noticeable on longer, steeper descents where 2-piston calipers can feel less confident. The improvement is most apparent when paired with larger rotors.
