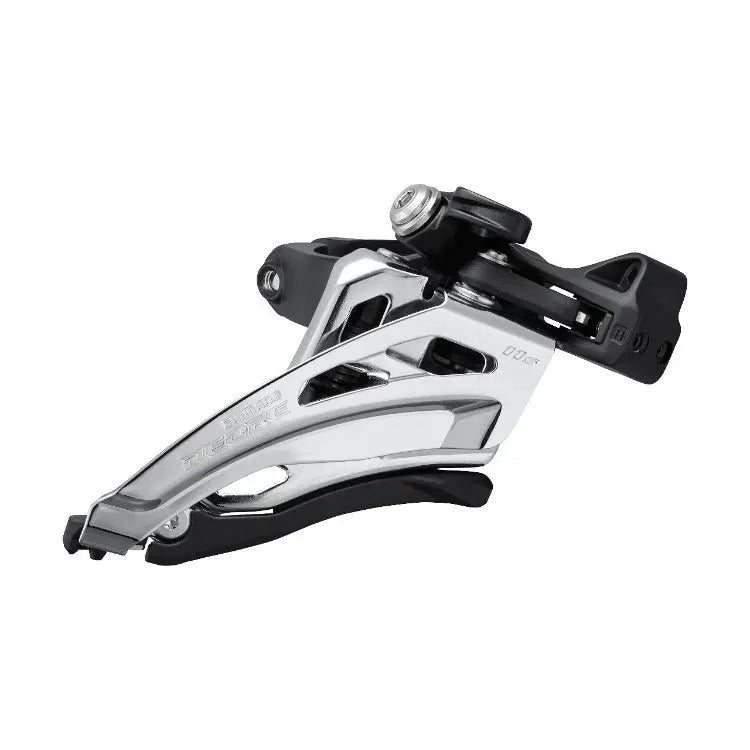

Shimano Deore FD-M5100 Front Derailleur - 2x11-Speed | Mid Clamp
Front Derailleurs
Shimano Deore FD-M5100 Front Derailleur - 2x11-Speed · Mid Clamp
Shimano Deore FD-M5100 Front Derailleur - 2x11-Speed | Mid Clamp
The Shimano Deore FD-M5100 Front Derailleur is built for 2x11-speed mountain drivetrains and uses Shimano's Side Swing design to deliver lighter shift action, improved cable routing, and better tire clearance on bikes with short chainstays or large wheels. Read the overview
At a glance
- Speed
- 2x11 mountain
- Series
- Shimano Deore
- Cable pull
- Front-pull
1 in stock
Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
What Makes the Shimano Deore FD-M5100 a Smooth-Shifting 2x11 Front Derailleur?
The Shimano Deore FD-M5100 Front Derailleur is built for 2x11-speed mountain drivetrains and uses Shimano's Side Swing design to deliver lighter shift action, improved cable routing, and better tire clearance on bikes with short chainstays or large wheels. The mid-clamp 34.9mm band mount ships with both 28.6mm and 31.8mm shims, covering 28.6, 31.8 and 34.9mm seat tubes. Front-pull cable routing keeps the cable path clean against modern frame designs and pairs natively with Shimano 11-speed mountain shifters.
Designed for a 36T maximum top chainring with a 66-69° chainstay angle window, and a chain line of 48.8/51.8mm depending on the frame setup. Shimano's compatibility chart pairs it with 2x11-speed SL-M5100, SL-M7000, SL-M8000 and SL-M9000 left shifters. A reliable, no-fuss choice for riders building or rebuilding a Deore 2x11 drivetrain who want clean shifting and broad frame compatibility. MPN: FD-M5100-M.
All the specs
MPN IFDM5100MX4
- Model
- FD-M5100-M
- Series
- Shimano Deore
- Speed
- 2x11 mountain
- Mount
- Mid clamp band, 34.9mm with 28.6mm and 31.8mm adapters
- Cable Pull
- Front-pull
- Design
- Side Swing
- Top Gear Capacity
- 36T maximum
- Chainstay Angle
- 66 to 69 degrees
- Chain Line
- 48.8 / 51.8mm
- UPC
- 192790621203
FAQ
Good questions
Get to know Shimano
There's more to Shimano than this one product. Our Shimano page has the full Shimano lineup we carry and more about the brand.
Visit the Shimano page →What is Side Swing and why does it matter?
Side Swing is Shimano's front derailleur architecture that pivots from the side of the seat tube rather than the top or bottom. The result is lighter shift action at the lever, cleaner cable routing on modern frames, and more tire clearance.
Will this fit my frame?
The mid-clamp 34.9mm band ships with both 28.6mm and 31.8mm shims, so it fits the three most common modern MTB seat tube diameters. Verify your frame uses a clamp-on mount (not direct mount or E-type) and that the chainstay angle falls between 66 and 69 degrees.
Which shifters work with this derailleur?
Shimano's compatibility chart pairs it with 2x11-speed SL-M5100, SL-M7000, SL-M8000 and SL-M9000 left shifters.
