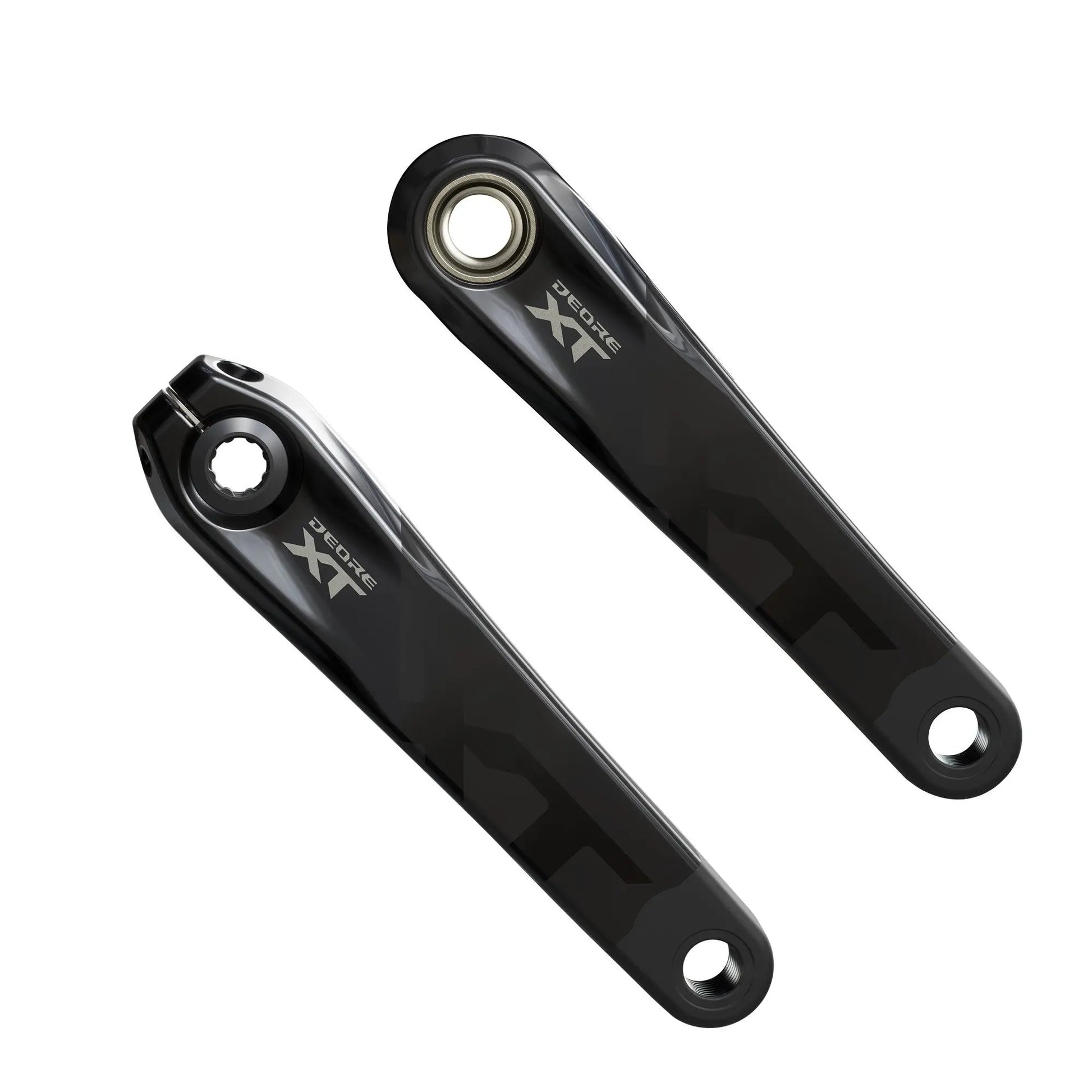

Shimano Deore XT FC-M8200 Crankset - 165mm
Cranksets
Shimano Deore XT FC-M8200 Crankset - 165mm
Shimano Deore XT FC-M8200 Crankset - 165mm
The Shimano Deore XT FC-M8200 165mm is the shorter arm length variant of the XT 1x12-speed crank set, built on Hollowtech II alloy forging with a 24mm steel spindle for the same strength-to-weight balance as the longer lengths. Read the overview
At a glance
- Speed
- 1x12-speed
- Arm Length
- 165mm
- Model
- FC-M8200
- Series
- Shimano Deore XT
1 in stock
Ships free. Free shipping on US orders over $100.
Free in-store pickup in Vancouver, WA. Usually ready in 4 hours.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Who Needs the Shimano Deore XT FC-M8200 165mm Crankset?
The Shimano Deore XT FC-M8200 165mm is the shorter arm length variant of the XT 1x12-speed crank set, built on Hollowtech II alloy forging with a 24mm steel spindle for the same strength-to-weight balance as the longer lengths. The only difference is the 165mm arm that traces a shorter arc through each pedal stroke. Shorter cranks suit riders with a shorter inseam, those who experience knee discomfort with longer arms on steep climbs, or riders who have determined 165mm is their optimal fit length through a professional bike fitting. The FC-M8200 uses a 176mm Q-factor and 55mm chainline for 148mm rear axle spacing frames, and it takes Shimano's SM-CRM86 direct-mount chainring in 28-36t sizes.
Part of Shimano's Deore XT M8200 12-speed group, and Shimano pairs it with 12-speed HG chains. Requires a Shimano Hollowtech II MTB bottom bracket. Uses Dynamic Chain Engagement+ tooth profile on the SM-CRM86 chainring for chain retention on rough terrain. For XT 1x12 riders whose fit calls for 165mm, this is the correct length.
All the specs
MPN IFCM8200AXX
- Model
- FC-M8200
- Series
- Shimano Deore XT
- Speed
- 12-speed
- Arm Length
- 165mm
- Q-Factor
- 176mm
- Chainline
- 55mm
- Interface
- Hollowtech II (24mm axle), direct-mount chainring (SM-CRM86)
- Compatible BB
- BB-MT801 (threaded), BB-MT501 (threaded)
- Chainring
- SM-CRM86 direct mount, 28-36t
FAQ
Good questions
Get to know Shimano

There's more to Shimano than this one product. Our Shimano page has the full Shimano lineup we carry and more about the brand.
Visit the Shimano page →What is the advantage of 165mm over 170mm for MTB?
A 165mm arm traces a smaller arc, which can reduce knee flexion at the top of the pedal stroke. For riders who experience knee impingement on steep climbs or who have been fit-tested for a shorter arm, 165mm can feel more comfortable than 170mm.
Can I use the FC-M8200 165mm with an older XT or SLX drivetrain?
The FC-M8200 is part of the Deore XT M8200 12-speed group. Shimano's compatibility chart pairs it with 12-speed HG chains and the RD-M8200 and RD-M8250 rear derailleurs, so it is a 12-speed crank.
Do both the 165mm and 170mm FC-M8200 use the same chainring?
Yes. All arm lengths of the FC-M8200 use the same SM-CRM86 direct-mount chainring interface. The chainring selection is independent of arm length.
