Why Do Trail Riders Choose the Shimano Deore XT FC-M8200 170mm?

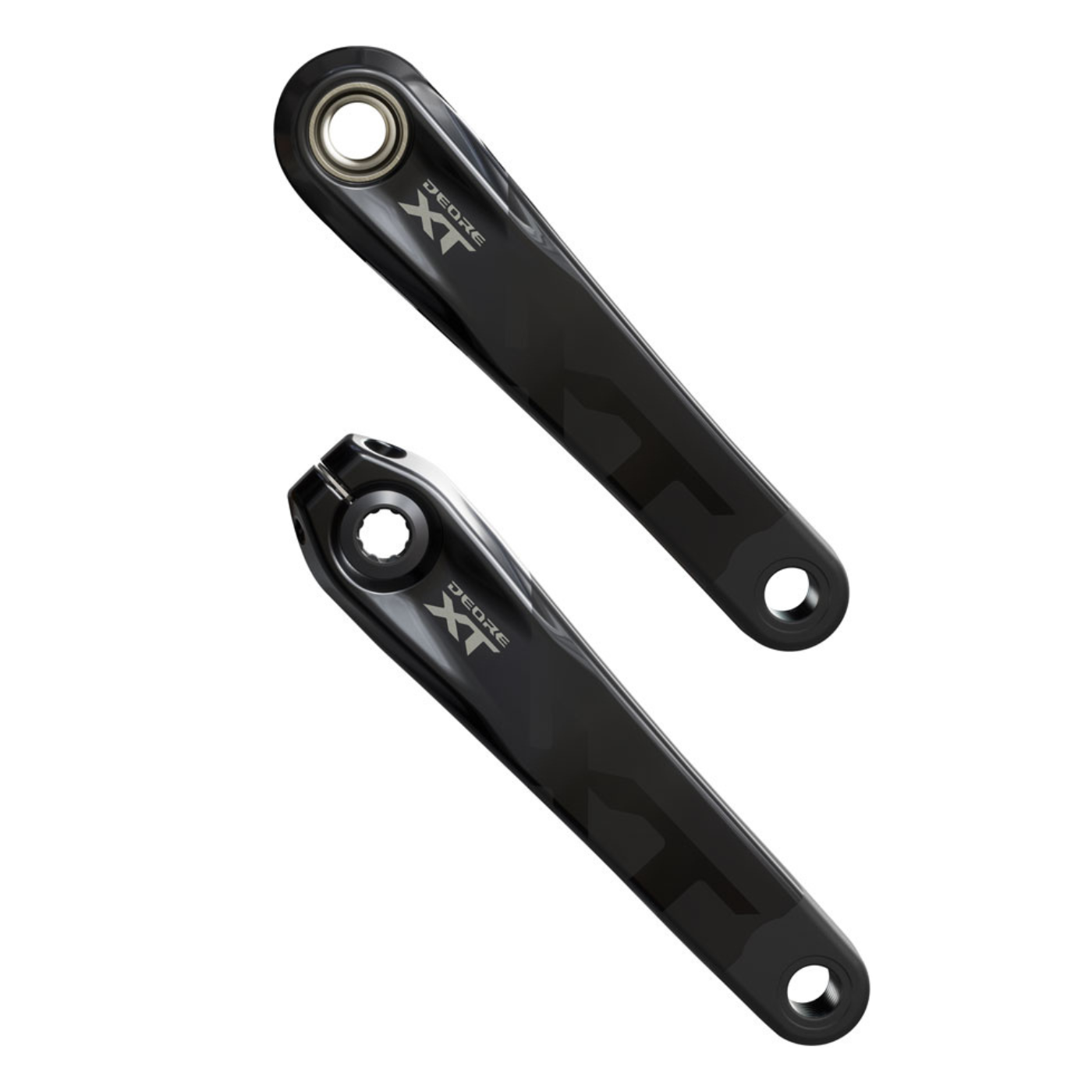

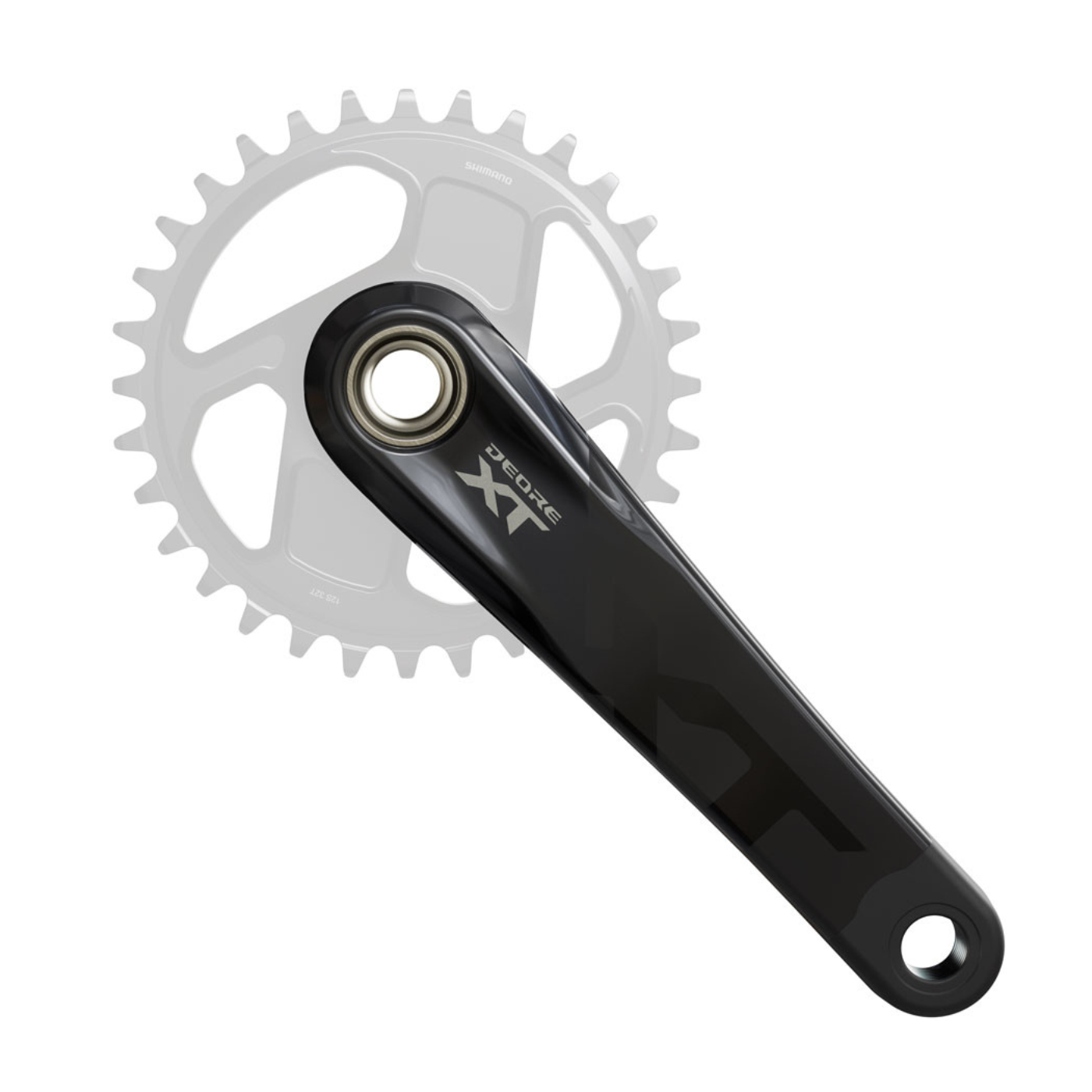

The Shimano Deore XT FC-M8200 is the 1x12-speed MTB crank arm set, built on Hollowtech II aluminum crank arms with a steel axle to deliver the optimal balance of stiffness, impact resistance, and weight for aggressive trail, all-mountain, and enduro riding. The FC-M8200 uses a 176mm Q-factor and 55mm chainline, spec'd for modern wide-trail geometry frames with 148mm rear axle spacing. The crank arms are sold without a chainring. The SM-CRM86 direct-mount chainring (sold separately) pairs with the FC-M8200 in your preferred tooth count (28-36t range) and uses Shimano's Dynamic Chain Engagement+ tooth profile for improved chain retention and smoother pedaling over rough and technical terrain.

Compatible with Shimano Deore XT M8100 12-speed drivetrains and compatible 12-speed MTB groupsets. Requires a Shimano Hollowtech II MTB bottom bracket (BB-MT801 for threaded, BB-MT800-PA for press-fit). Available in 160, 165, 170, and 175mm arm lengths. This listing is the 170mm version. For trail and enduro riders building or replacing cranks on a 1x12 Shimano XT drivetrain, the FC-M8200 is the correct arm set.

All the specs

MPN IFCM8200CXX

Model
FC-M8200
Series
Shimano Deore XT
Speed
1x12-speed (crank arms only, chainring sold separately)
Arm Length
170mm
Q-Factor
176mm
Chainline
55mm
Interface
Hollowtech II, direct-mount chainring (SM-CRM86)
Compatible BB
BB-MT801 (threaded), BB-MT800-PA (press-fit)
Chainring
Not included, SM-CRM86 sold separately in 28-36t

FAQ

Good questions

Get to know Shimano

There's more to Shimano than this one product. Our Shimano page has the full Shimano lineup we carry and more about the brand.

Visit the Shimano page →
Does the FC-M8200 come with a chainring?

No. The FC-M8200 is a crank arm set only. The SM-CRM86 direct-mount chainring is sold separately in tooth counts from 28t to 36t. This allows riders to select their preferred chainring size independently of the arm set.

Which chainring size should I choose for the FC-M8200?

The SM-CRM86 comes in 28t to 36t. A smaller ring gives easier climbing gears and a larger ring gives a taller top gear, so choose based on your terrain and the cassette you run.

Is the FC-M8200 compatible with 11-speed XT drivetrains?

No. The FC-M8200 is designed for 12-speed Shimano XT M8100 and compatible 12-speed drivetrains. It is not compatible with 11-speed drivetrains.
