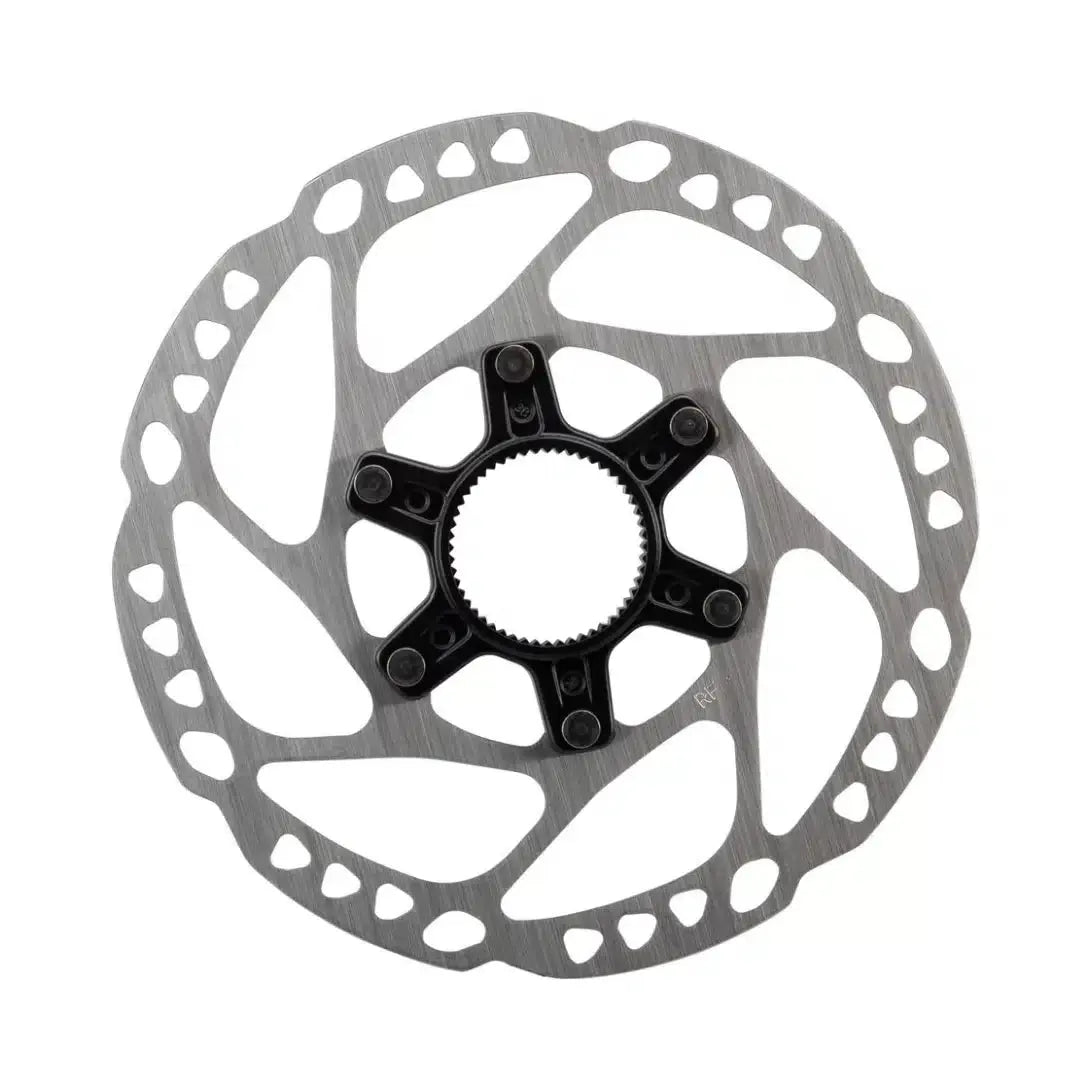

Shimano SM-RT64-S - 160mm | Center Lock

Shimano SM-RT64-S - 160mm | Center Lock Shimano

Shimano SM-RT64-S - 160mm | Center Lock

Shimano SM-RT64-S - 160mm | Center Lock

Shimano logo

Is the Shimano SM-RT64-S 160mm the Right Center Lock Rotor?

The Shimano SM-RT64-S is a 160mm center lock disc brake rotor engineered for powerful and consistent braking across all riding conditions. Unlike the ICE TECHNOLOGIES rotors in Shimano's higher tiers, the SM-RT64 is a standard stainless steel construction -- straightforward, proven, and compatible with both resin and metal pad compounds, giving it more flexibility than the resin-only SM-RT56. The CENTER LOCK spline mount and lock ring design makes installation and removal faster and more precise than 6-bolt setups, with no bolt torque sequence or alignment concerns.

At 160mm, the SM-RT64-S suits a wide range of trail, gravel, trekking, and commuter disc brake setups on center lock hubs. It spans compatibility across Shimano Deore M6000 and M6100, SLX M5100, GRX 11-speed, and other Shimano hydraulic disc brake systems using center lock hubs. The SM-RT64 is available in sizes from 140mm up to 220mm, and the SM-RT64-S S designation indicates the small/standard size variant. For riders who need a reliable center lock rotor without the cost premium of ICE TECHNOLOGIES construction, and who want the flexibility to run either resin or metal pads, the SM-RT64-S 160mm is a practical and durable choice.

Sale
$35.99
$35.99 $40.00
Shipping calculated at checkout.

4 in stock

  • Orders over $100 ship free!
  • Estimated delivery: May 24 - May 28

Ask a question

The fields marked * are required.

more details:

Shimano logo

Specifications

  • Model: SM-RT64-S
  • Size: 160mm
  • Mount: Center Lock
  • Construction: Standard stainless steel
  • Pad Compatibility: Resin and metal pad compatible
  • Compatible Systems: Shimano Deore M6000/M6100, SLX M5100, GRX 11-speed, and compatible Shimano hydraulic disc brakes on center lock hubs

FAQ

What is the difference between the SM-RT64 and the RT-MT800 or RT-CL800?

The RT-MT800 and RT-CL800 both use ICE TECHNOLOGIES FREEZA construction for significantly improved heat dissipation. The SM-RT64 is standard stainless steel with no thermal sandwich, making it less capable in sustained high-heat braking but a straightforward, cost-effective option for moderate use.

Can I run metal pads with the SM-RT64?

Yes. Unlike the SM-RT56 which is designed for resin pads only, the SM-RT64 is compatible with both resin and metal pad compounds. This makes it a more versatile choice for riders who switch between compounds seasonally or by terrain.

Does this rotor fit a 6-bolt hub?

No. The SM-RT64 is a Center Lock rotor and requires a Center Lock-compatible hub. A center lock to 6-bolt adapter can be used to mount it on standard 6-bolt hubs if needed.

Best For

Trail, gravel, trekking, and commuter riders on center lock hubs running Shimano Deore, SLX, or GRX hydraulic disc brakes who want reliable performance with the flexibility to run either resin or metal pad compounds.
