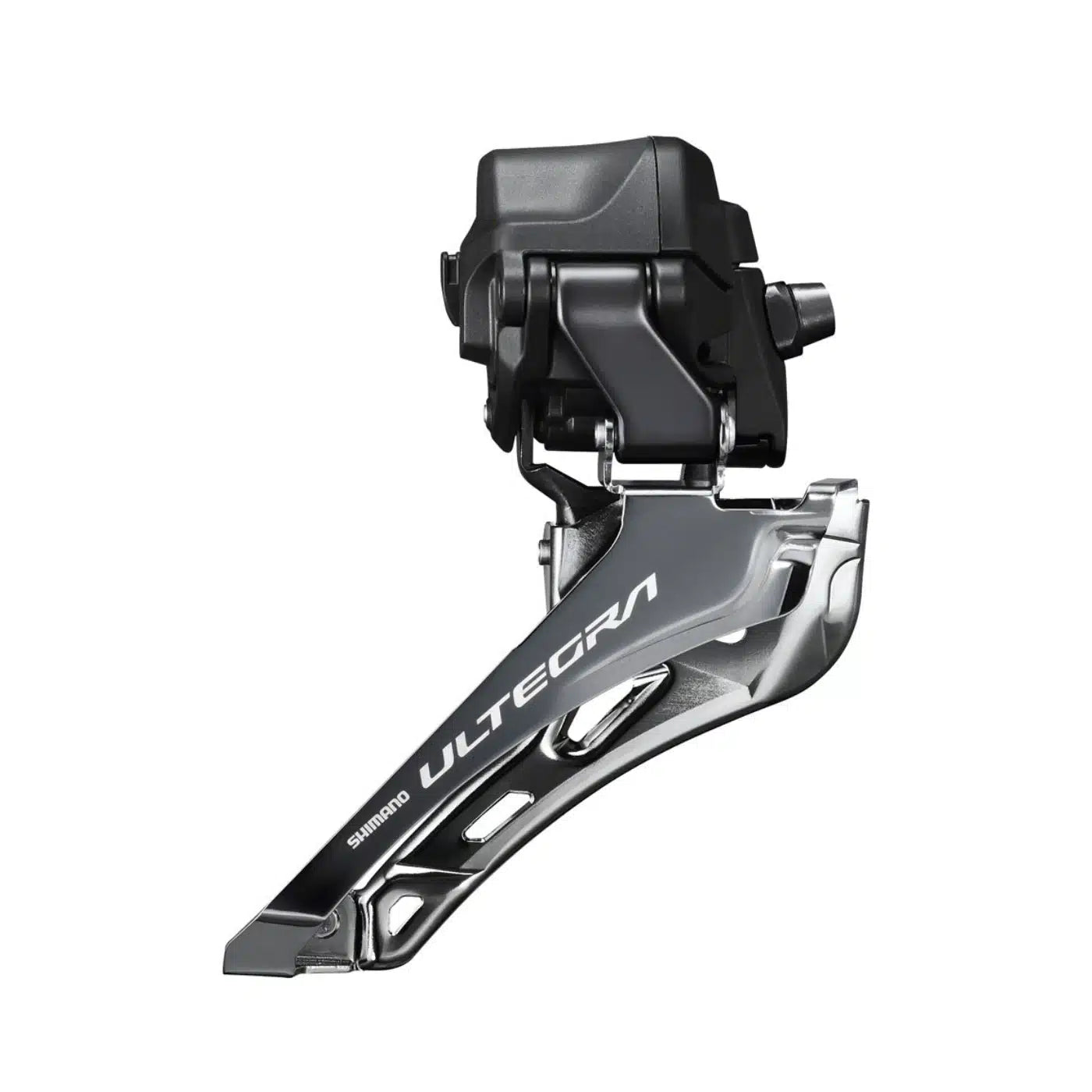

Is the Shimano Ultegra FD-R8150 the Right Di2 Front Derailleur for Your Build?

The Shimano Ultegra FD-R8150 brings flagship-grade Di2 front shifting to the Ultegra tier, engineered alongside the R9200 generation with a 45% faster shift speed and a 33% reduction in frontal area compared to the previous generation FD-R8070. At 116 grams, the semi-wireless Di2 architecture keeps the derailleur wired to the BT-DN300 battery via EW-SD300 E-Tube cable while the levers communicate wirelessly -- eliminating lever-to-derailleur cable routing while keeping a reliable power connection at the derailleur itself. Auto-trim based on rear derailleur position eliminates chain rub across the full 12-speed cassette range without rider input.

Braze-on mount. Compatible with 50/34, 52/36, and 54/40t road chainring combinations. Tune and configure via the E-Tube Project app over Bluetooth. Requires a compatible Shimano 12-speed Di2 rear derailleur, BT-DN300 battery, and EW-SD300 wiring. Not compatible with 11-speed Di2 components.

Sale
$259.99
$259.99 $295.00
Shipping calculated at checkout.

1 in stock

  • Orders over $100 ship free!
  • Estimated delivery: May 24 - May 28

Ask a question

The fields marked * are required.

more details:

Shimano logo

Specifications

  • MPN: IFDR8150F
  • Speed: 2x12-speed
  • Shift System: Shimano Di2 (Electronic, Semi-Wireless)
  • Mount: Braze-On
  • Max Chainring: 54t
  • Chainline: 44.5mm
  • Chainstay Angle: 61-66 degrees
  • Weight: 116g
  • Compatible Chainrings: 50/34, 52/36, 54/40t
  • E-Tube Port: 1x SD300 port
  • Color: Black/Silver

FAQ

Is the FD-R8150 fully wireless?

It is semi-wireless. The derailleur wires to the BT-DN300 battery via EW-SD300 E-Tube cable; the shifters communicate wirelessly. There is no cable between lever and derailleur.

Is the FD-R8150 compatible with 11-speed Di2 components?

No. The FD-R8150 requires a 12-speed Di2 rear derailleur and is not compatible with 11-speed Di2 or mechanical components.

Can I use the FD-R8150 with Dura-Ace R9200 components?

Yes. Shimano Ultegra R8100 and Dura-Ace R9200 are cross-compatible within the 12-speed Di2 ecosystem. The FD-R8150 works with R9200 rear derailleurs and levers.

Best For

Road cyclists building a Shimano Ultegra R8100 Di2 12-speed drivetrain who want top-level electronic front shifting performance without stepping up to Dura-Ace pricing.
