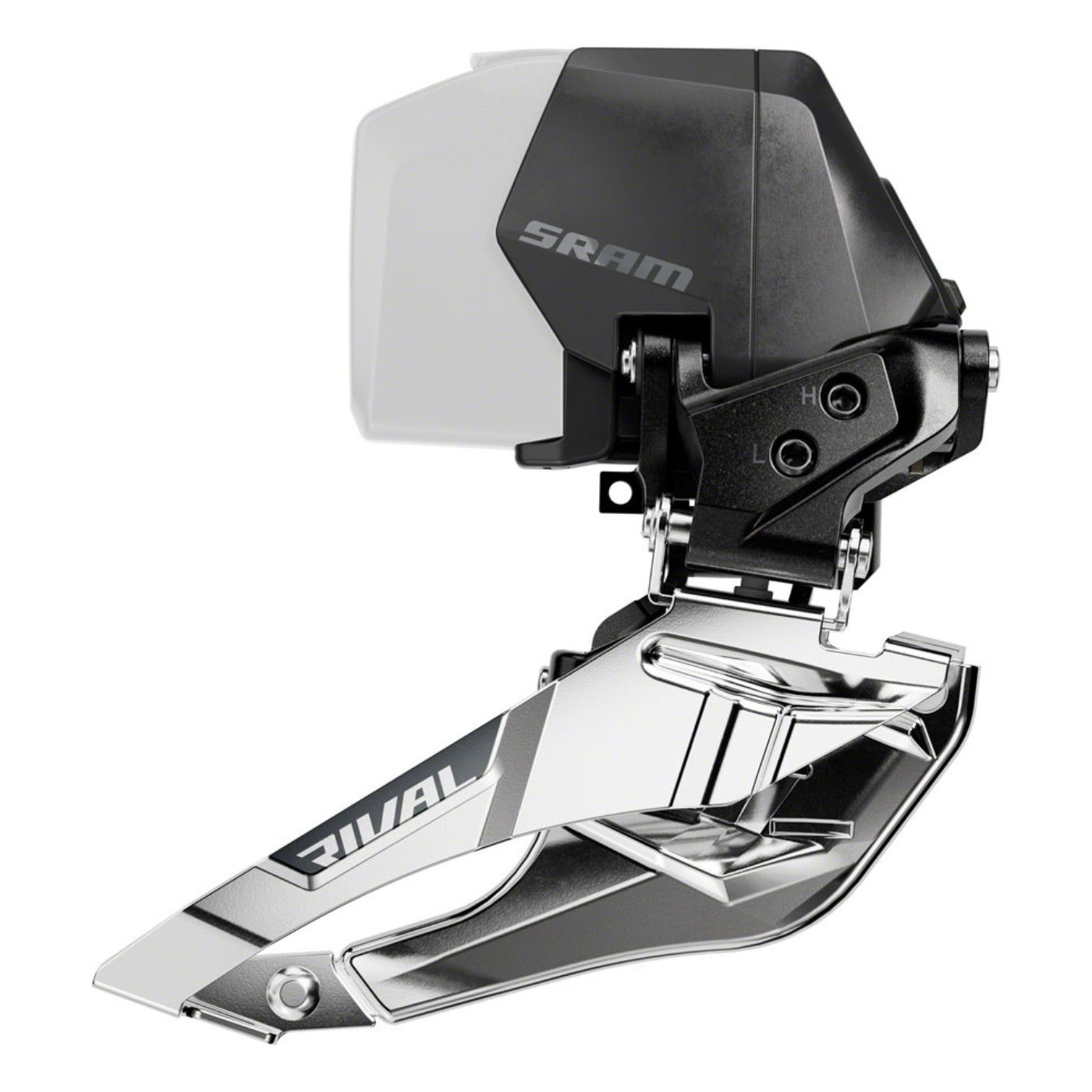

SRAM Rival AXS E1 Front Derailleur - 2 x 12 Speed

SRAM Rival AXS E1 Front Derailleur - 2 x 12 Speed SRAM

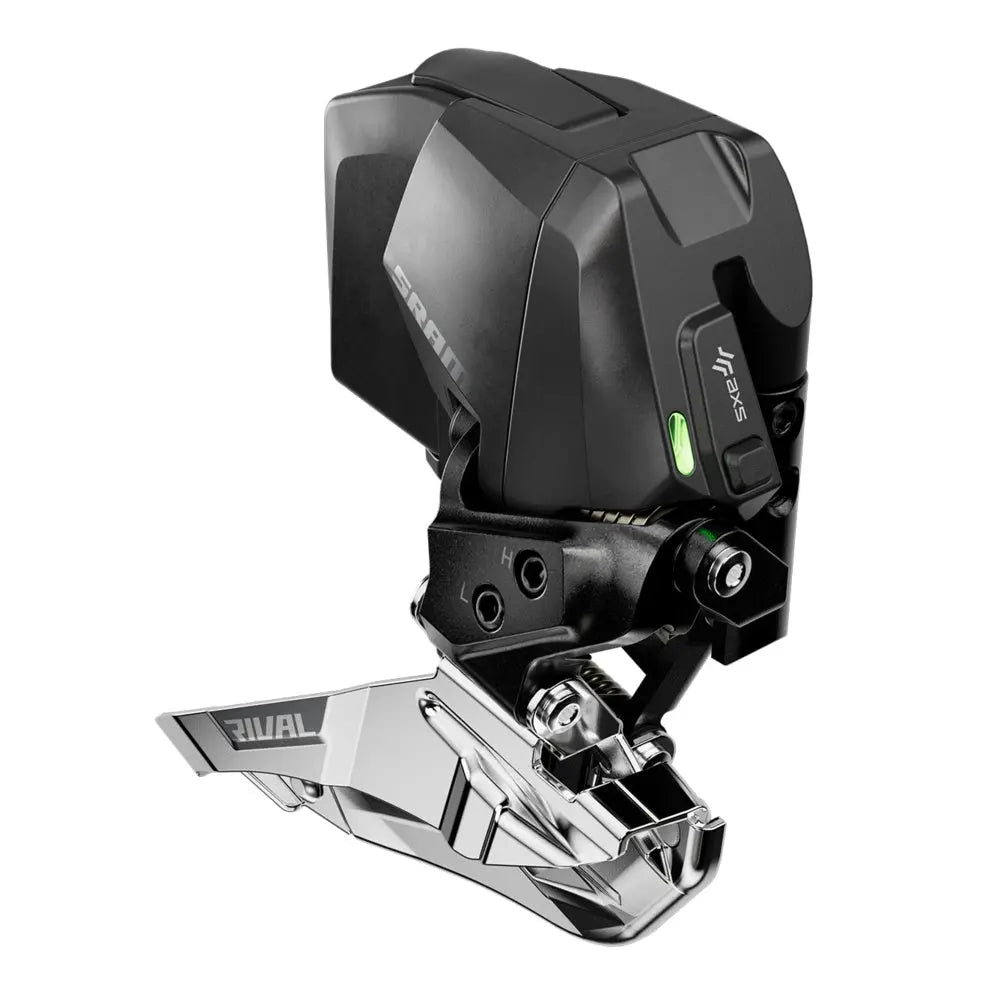

SRAM Rival AXS E1 front derailleur, three quarter view

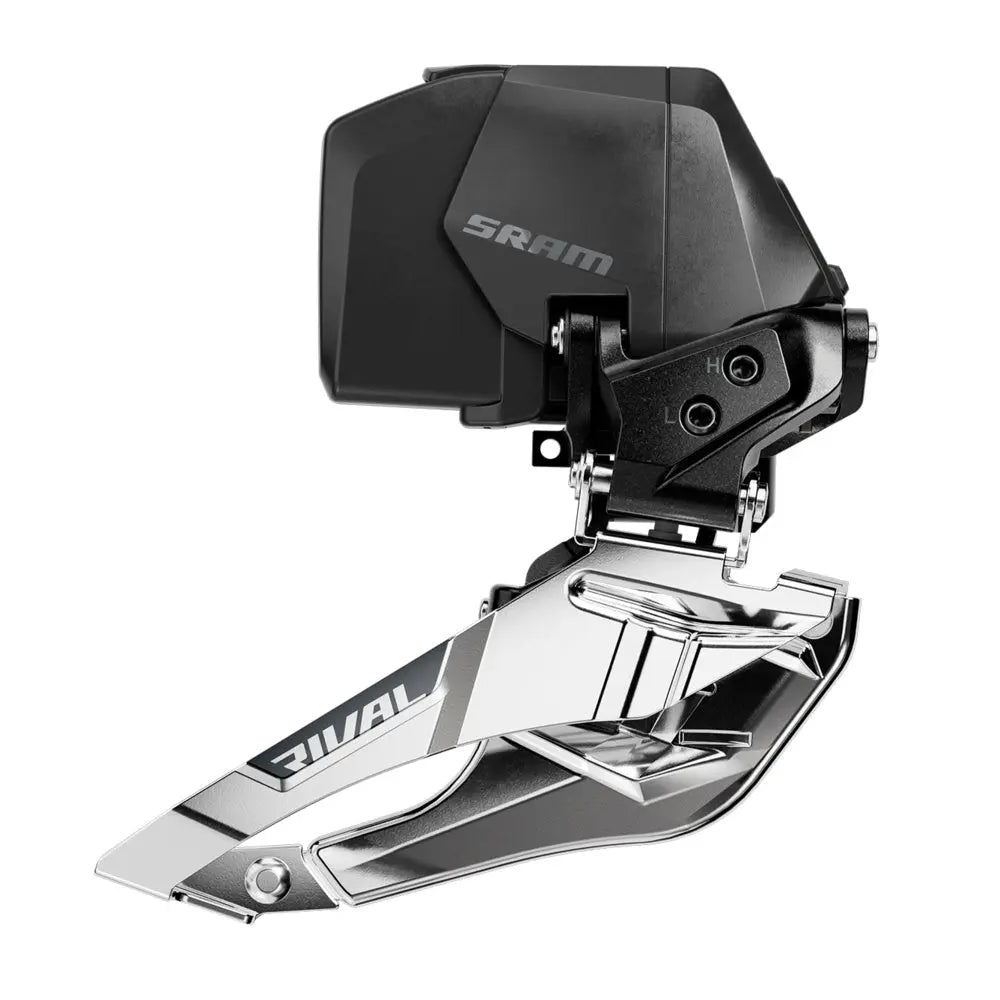

SRAM Rival AXS E1 front derailleur, drive side view
SRAM Rival AXS E1 Front Derailleur - 2 x 12 Speed SRAM
SRAM Rival AXS E1 front derailleur, three quarter view
SRAM Rival AXS E1 front derailleur, drive side view

SRAM Rival AXS E1 Front Derailleur - 2 x 12 Speed

SRAM Rival AXS E1 Front Derailleur - 2 x 12 Speed

SRAM logo

Does the SRAM Rival AXS E1 Front Derailleur Come With a Battery?

No, and that catches people out. The derailleur ships without an AXS battery, so if this is your first AXS component you need one in the cart alongside it. This version is also a braze-on mount, meaning it bolts to a tab on the frame. If your frame has no braze-on tab, you need a separate clamp, available in 31.8 mm and 34.9 mm. Worth confirming both before you order, because neither is in the box.

What you get for the money is SRAM's Yaw cage movement, which rotates the cage as it swings outboard so the plates stay parallel to the chain instead of dragging against it. Paired with auto trim, that means no rasp in the cross gears and no trim lever to think about. The narrow cage profile is cut to match SRAM's X-Range chainrings and works with 46/33T, 48/35T, and 50/37T combinations. It fits chainstay angles from 61 to 66 degrees, runs a 45 mm chainline, and sets up through the AXS app with the front derailleur setup tool included in the box.

$195.00
$195.00
Shipping calculated at checkout.

2 in stock

Buy it Open Box and Save
SRAM Rival AXS E1 Front Derailleur - 2 x 12 Speed - [Open Box]
Open Box Item $171.60$195.001 available
View
  • Orders over $100 ship free!
  • Estimated delivery: Sep 04 - Sep 08

Ask a question

The fields marked * are required.

more details:

SRAM logo

Specifications

  • MPN: 00.7618.185.000
  • Model ID: FD-RIV-E-E1
  • System: SRAM Rival AXS E1
  • Speed: 12-speed
  • Drivetrain configuration: 2x
  • Cable routing: Wireless
  • Communication protocol: AXS
  • Shift technology: Yaw, with auto trim
  • Mounting type: Braze-on (clamp sold separately, 31.8 mm or 34.9 mm)
  • Chainring compatibility: 46/33T, 48/35T, 50/37T
  • Chainstay angle: 61 to 66 degrees
  • Chainline: 45.0 mm
  • Chain technology: Road Flattop D1/E1
  • Battery: Not included, sold separately
  • Included: Front derailleur setup tool
  • Application: Road, gravel
  • Color: Black

FAQ

Is a battery included?

No. The AXS battery is sold separately. If you already run AXS you can share batteries across components, but a first AXS purchase needs one added.

What mount does this use?

This one is braze-on. It bolts to a tab on your frame. If your frame has no tab, SRAM offers clamps in 31.8 mm and 34.9 mm, sold separately.

Which chainring combinations work with it?

46/33T, 48/35T, and 50/37T. 50/37T is the largest combination it will handle. If you need a chainring larger than 50/37T, you need the RED E1 front derailleur instead.

What is Yaw and why does it matter?

Yaw rotates the cage as it moves outboard, keeping the cage plates parallel to the chain rather than angled into it. That is what removes chain rub in the cross gears without a trim lever. Auto trim handles the rest automatically.

Will it fit my frame?

It fits chainstay angles from 61 to 66 degrees and runs a 45 mm chainline. Check your frame's chainstay angle if you are unsure, since outside that range the cage will not sit correctly.

Does it come with a setup tool?

Yes, SRAM includes the front derailleur setup tool in the box, which sets the position for you. Final adjustment runs through the AXS app.

Best For

Riders building or repairing a 2x Rival AXS E1 road or gravel drivetrain Frames with a braze-on front derailleur tab, or riders willing to add a clamp Anyone who wants wireless front shifting without Force or RED money 46/33T, 48/35T, and 50/37T chainring setups
