Tannus Armour Tire Insert - 26 x 4.0-4.8 | Single
Tire Inserts
Tannus Armour Tire Insert - 26 x 4.0-4.8 · Single
Tannus Armour Tire Insert - 26 x 4.0-4.8 | Single

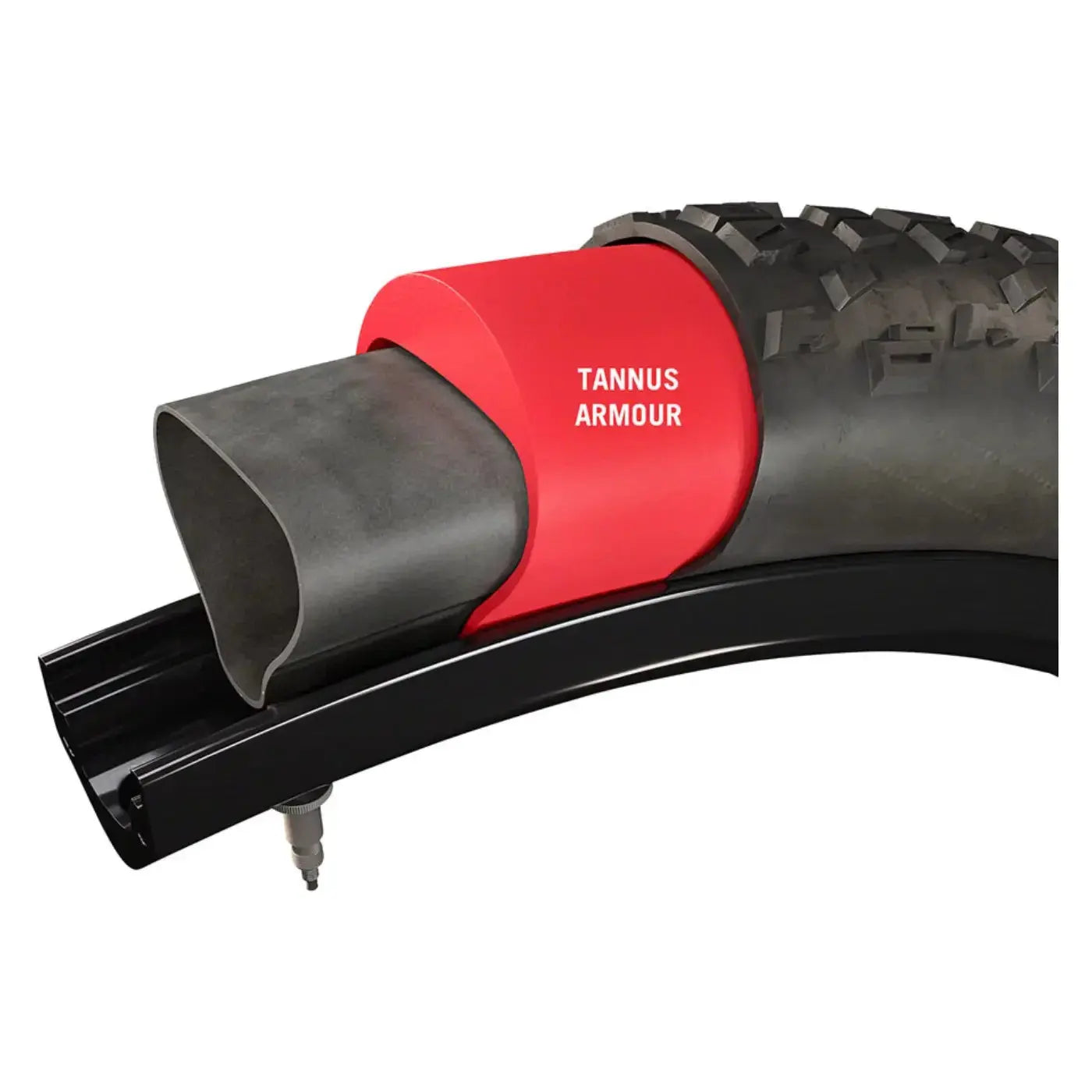

The Tannus Armour Tire Insert 26 x 4.0-4.8 is a foam insert that sits between your tire and inner tube to deliver puncture protection, pinch-flat protection, and rim protection on 26-inch fat bike tires in the 4.0 to 4.8 inch width range. Read the overview
At a glance
- Tire Size
- 26 x 4.0-4.8 (ISO 559x100-122)
- Run-Flat Capable
- No (fat tire size)
- Minimum Rim Width
- 19mm inner
- Weight
- 550g
6 in stock
Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Is the Tannus Armour Tire Insert 26 x 4.0-4.8 the right flat protection for your 26-inch fat bike or fat tire e-bike?

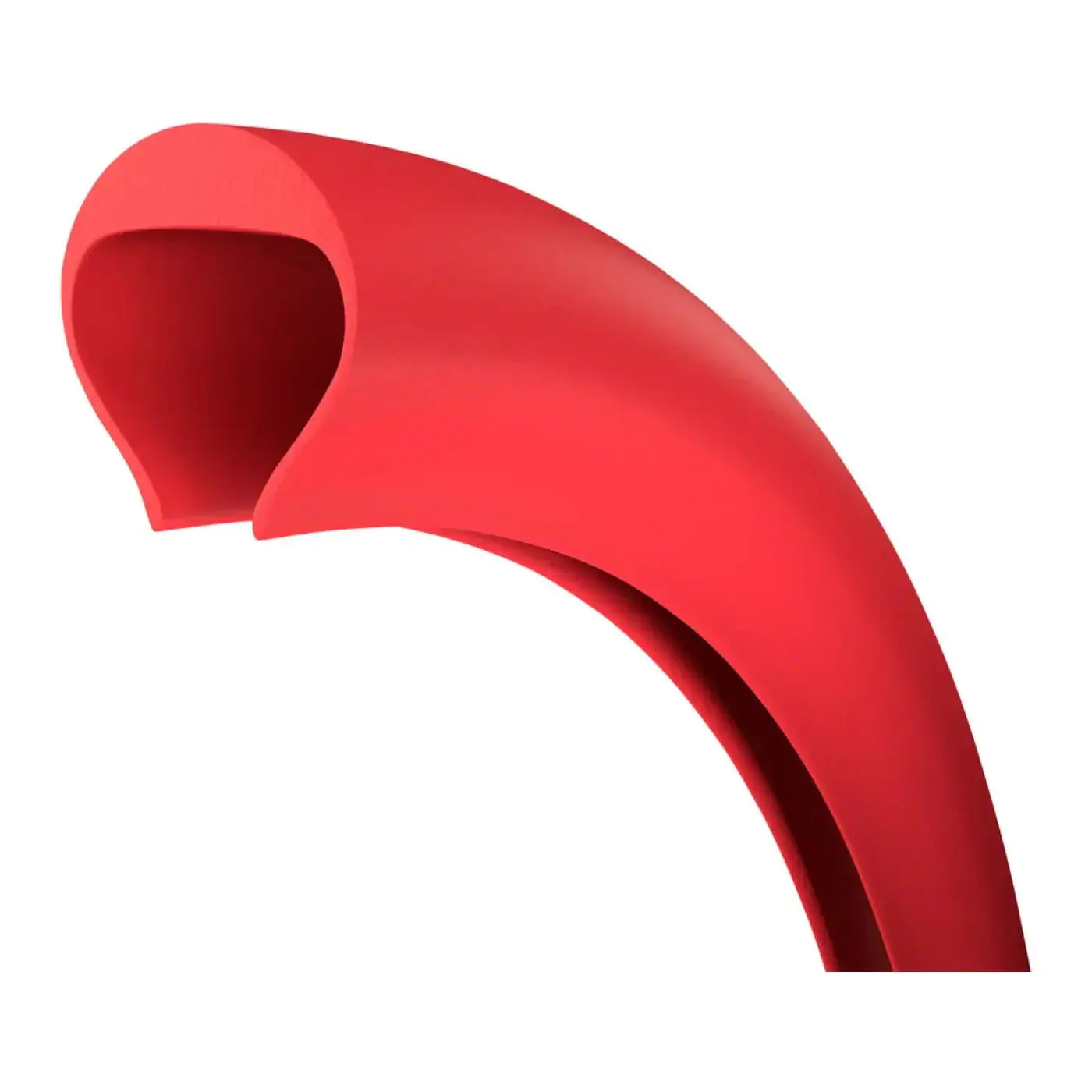

The Tannus Armour Tire Insert 26 x 4.0-4.8 is a foam insert that sits between your tire and inner tube to deliver puncture protection, pinch-flat protection, and rim protection on 26-inch fat bike tires in the 4.0 to 4.8 inch width range. Built around Aither, Tannus's patented multi-cell rebounding foam compound, the insert provides 15mm of puncture protection under the tread and 2mm of sidewall protection from sharp objects, eliminating roughly 90% of common flats. This is the dedicated fat tire size for snow bikes, sand riding, and 26-inch fat tire e-bikes where every pinch flat is a 550-gram tube replacement.
Armour lets you run lower tire pressures for better float and grip on snow, sand, and loose terrain without risking pinch flats, which is the entire point of running fat tires in the first place. Note that this fat tire size does not offer run-flat capability, so a puncture will end the ride. Installation is as simple as a regular tube swap, requires a minimum 19mm inner rim width, and uses a smaller-than-stock tube (26 x 3.0-3.5) for proper fit. Sold as a single insert, weight 550g, in Tannus's signature red.
All the specs
MPN TA2640
- Tire Size
- 26 x 4.0-4.8 (ISO 559x100-122)
- Tube Size Required
- 26 x 3.0-3.5 inch
- Weight
- 550g
- Puncture Protection
- 15mm under tread
- Sidewall Protection
- 2mm
- Material
- Aither multi-cell rebounding foam compound
- Minimum Rim Width
- 19mm inner
- Color
- Red
- Sold As
- Single insert
- Run-Flat Capable
- No (fat tire size)
- Tubed or Tubeless
- Tubed setups only
FAQ
Good questions
Get to know Tannus

There's more to Tannus than this one product. Our Tannus page has the full Tannus lineup we carry and more about the brand.
Visit the Tannus page →Which tires will this Armour insert fit?
This Armour fits 26 x 4.0-4.8 inch fat tires (ISO 559x100-122). It is sized for fat bikes, snow bikes, sand bikes, and 26-inch fat tire e-bikes.
What tube size do I need with this Armour?
You need a 26 x 3.0-3.5 inch inner tube, which is one size smaller than the tire. Tannus Armour displaces space inside the tire, so a properly downsized tube is required for correct fit.
Does this fat tire Armour have run-flat capability?
No. Fat tire sizes (20x3.0-4.0, 20x4.1-4.8, 24x3.0-4.0, 26x4.0-4.8) do not have run-flat capability. You will still get full 15mm puncture protection and pinch-flat protection while riding, but a flat will end the ride.
What is Aither and what protection does it provide?
Aither is Tannus's patented multi-cell rebounding foam compound. It provides 15mm of puncture protection under the tread and 2mm of sidewall protection, eliminating roughly 90% of common flats while still letting the tire roll and absorb bumps normally.
