Tannus Armour Tire Insert - 700 x 35-40 | Single
Tire Inserts
Tannus Armour Tire Insert - 700 x 35-40 · Single
Tannus Armour Tire Insert - 700 x 35-40 | Single

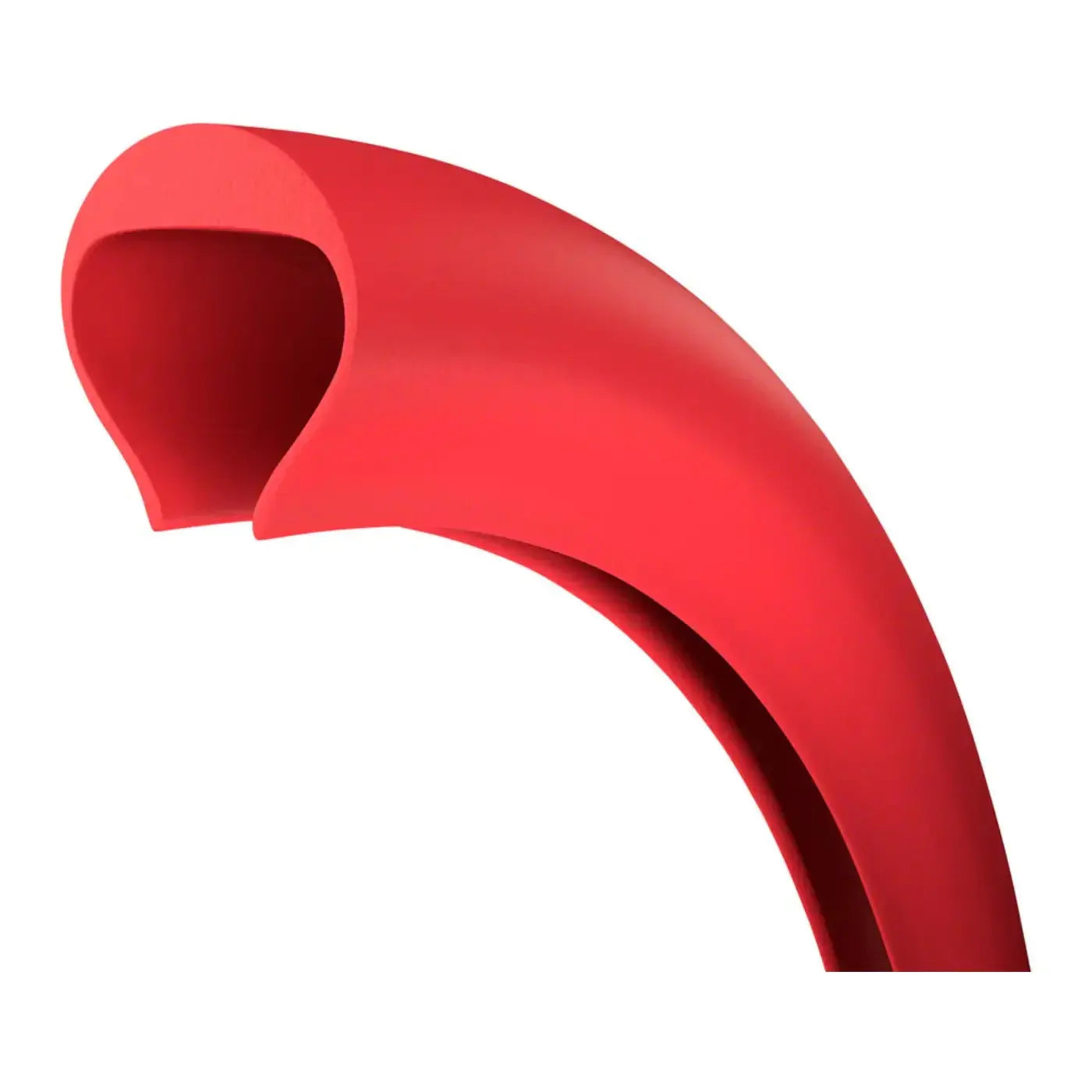

The Tannus Armour Tire Insert 700 x 35-40 is a foam insert that sits between your tire and inner tube to deliver puncture protection, pinch-flat protection, and rim protection on 700c gravel and commuter tires in the 35 to 40mm width range. Read the overview
At a glance
- Tire Size
- 700 x 35-40 (ISO 622x35-40)
- Minimum Rim Width
- 19mm inner
- Weight
- 230g
- Sold As
- Single insert
2 in stock
Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Is the Tannus Armour Tire Insert 700 x 35-40 the right flat protection for your gravel or commuter setup?
The Tannus Armour Tire Insert 700 x 35-40 is a foam insert that sits between your tire and inner tube to deliver puncture protection, pinch-flat protection, and rim protection on 700c gravel and commuter tires in the 35 to 40mm width range. Built around Aither, Tannus's patented multi-cell rebounding foam compound, the insert provides 15mm of puncture protection under the tread and 2mm of sidewall protection from sharp objects, eliminating roughly 90% of common flats. This is the right insert for gravel bikes, commuter setups, and adventure tourers running 35 to 40mm 700c tires who do not want to deal with tubeless sealant maintenance.

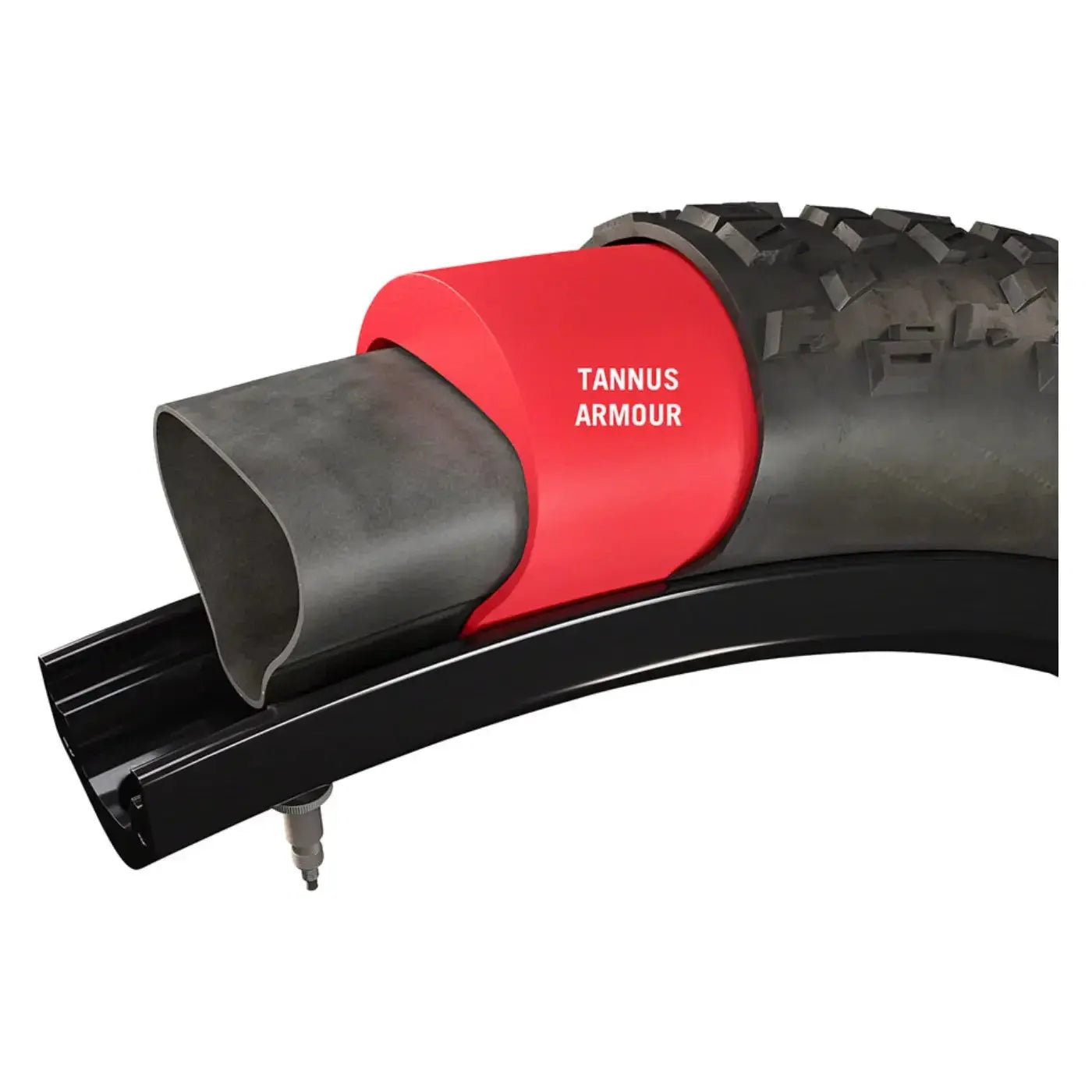

Armour lets you run lower tire pressures for better grip on loose surfaces and a smoother ride on rough pavement, without risking pinch flats over potholes and roots. This size has run-flat capability, so a sudden flat does not end your ride. Installation is as simple as a regular tube swap, requires a minimum 19mm inner rim width, and uses a smaller-than-stock tube (700 x 20-28) for proper fit. Sold as a single insert, weight 230g, in Tannus's signature red.
All the specs
MPN TA7035
- Tire Size
- 700 x 35-40 (ISO 622x35-40)
- Tube Size Required
- 700 x 20-28
- Weight
- 230g
- Puncture Protection
- 15mm under tread
- Sidewall Protection
- 2mm
- Material
- Aither multi-cell rebounding foam compound
- Minimum Rim Width
- 19mm inner
- Color
- Red
- Sold As
- Single insert
- Run-Flat Capable
- Yes
- Tubed or Tubeless
- Tubed setups only
FAQ
Good questions
Get to know Tannus

There's more to Tannus than this one product. Our Tannus page has the full Tannus lineup we carry and more about the brand.
Visit the Tannus page →Which tires will this Armour insert fit?
This Armour fits 700 x 35-40mm tires (ISO 622x35-40). It is sized for gravel, adventure touring, commuter, and cyclocross setups running mid-width 700c tires.
What tube size do I need with this Armour?
You need a 700 x 20-28 inner tube, which is smaller than the tire. Tannus Armour displaces space inside the tire, so a properly downsized tube is required for correct fit.
Does this Armour have run-flat capability?
Yes. This 700c size has run-flat capability, so a sudden flat will not end your ride. Avoid rougher terrain after a flat to protect the rim. Run-flat does not apply to fat tire sizes (20x3.0-4.0, 20x4.1-4.8, 24x3.0-4.0, 26x4.0-4.8).
Can I use this with tubeless rims and tires?
Tannus Armour is for tubed tires only. If you are running tubeless rims and tires, Tannus makes a separate Tannus Tubeless product designed for that setup.
