Wolf Tooth Gnarwolf Chainguide - Braze-On Mount
Chain Guides
Wolf Tooth Gnarwolf Chainguide - Braze-On Mount
Wolf Tooth Gnarwolf Chainguide - Braze-On Mount

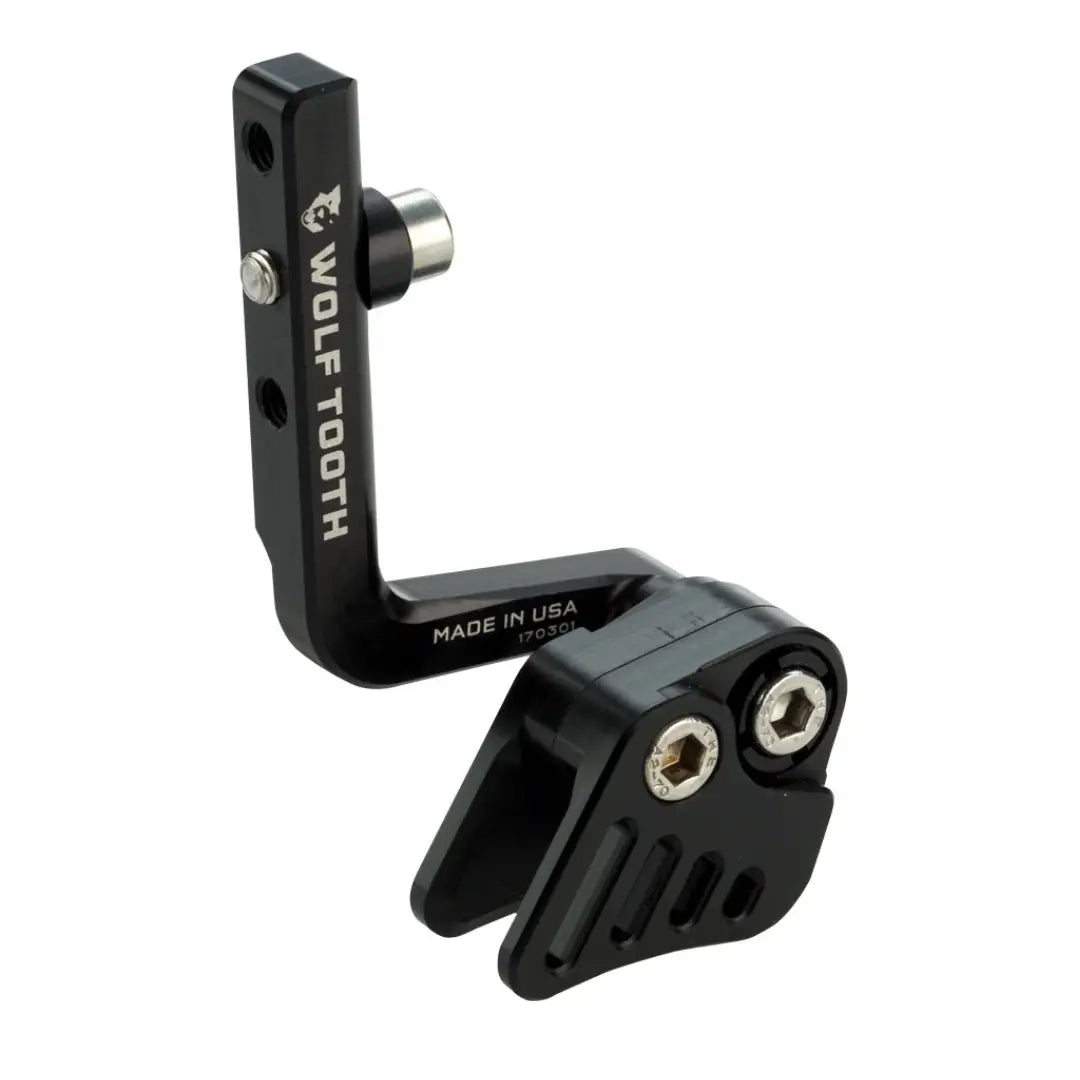

The Wolf Tooth GnarWolf Chainguide Braze-On Mount is a 1x chainguide designed around wide/narrow chainrings. Read the overview
At a glance
- Chainring Size
- 34T to 46T, round and oval
- Chainline
- About 45mm to 51mm
- Drivetrain
- 1x only
- Tool
- 4mm hex key
2 in stock
Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
Is the GnarWolf Braze-On Chainguide Right for Your 1x Bike?
The Wolf Tooth GnarWolf Chainguide Braze-On Mount is a 1x chainguide designed around wide/narrow chainrings. Wolf Tooth built it for maximum chain retention in the roughest gravel, CX, and road races, and also lists mountain biking as a use. It mounts to a frame's integral braze-on front derailleur mount. If your seat tube is round with no braze-on mount, Wolf Tooth sells a braze-on adapter.
The guide fits round and oval chainrings from 34T to 46T with infinite vertical adjustment. Wolf Tooth's GuideLock system gives 8mm of chainline adjustment, covering chainlines from about 45mm to 51mm with no shims. Every adjustment uses a 4mm hex key, and you can loosen one screw to flip the guide out of the way for chain removal without losing your settings. Wolf Tooth says no other gravel, road, or CX chainguide is as rigid or as easy to adjust.
The guide is 6061-T6 aluminum with stainless steel hardware and a glass filled nylon head, weighs 42g, and is made in the USA. It is for 1x use only, does not work with crankset mounted bashrings, and needs at least 10mm between the crank and the center of the ring. Braze-on mounts sit at different heights on different frames, so the largest chainring that fits varies by frame brand and model.
All the specs
10 specs in 3 groups. Open a group, or expand them all.
Sensors and connectivity2 specs
- Mount Type
- Integral braze-on front derailleur mount
- Not Compatible With
- Crankset mounted bashrings
Build and box2 specs
- Material
- 6061-T6 aluminum, stainless steel hardware, glass filled nylon head
- Weight
- 42g
Other details6 specs
- Chainring Size
- 34T to 46T, round and oval
- Chainline
- About 45mm to 51mm (8mm GuideLock adjustment, no shims)
- Drivetrain
- 1x only
- Tool
- 4mm hex key
- Clearance
- At least 10mm between the crank and the center of the ring
- Made in
- USA
FAQ
Good questions
Get to know Wolf Tooth
There's more to Wolf Tooth than this one product. Our Wolf Tooth page has the full Wolf Tooth lineup we carry and more about the brand.
Visit the Wolf Tooth page →What if my frame has no braze-on mount?
Wolf Tooth sells a braze-on adapter for round seat tubes that do not have a braze-on front derailleur mount.
What chainring sizes does the GnarWolf fit?
Wolf Tooth optimized it for round and oval chainrings from 34T to 46T. Braze-on mounts sit at different heights on different frames, so the largest ring that fits varies. For larger rings, Wolf Tooth points to its LoneWolf mid sweep and high sweep braze-on guides.
Do I need to remove my cranks to install it?
No. Wolf Tooth says installation takes a few minutes with no need to remove your crank arms.
Can I replace just the guide head?
Yes. Wolf Tooth sells GnarWolf Chainguide Heads separately, and they fit all rev1 and rev2 GnarWolf Chainguides. Every part of the chainguide is also sold as a replacement part.
