Why Choose the Wolf Tooth Aluminum Single Speed Cog?

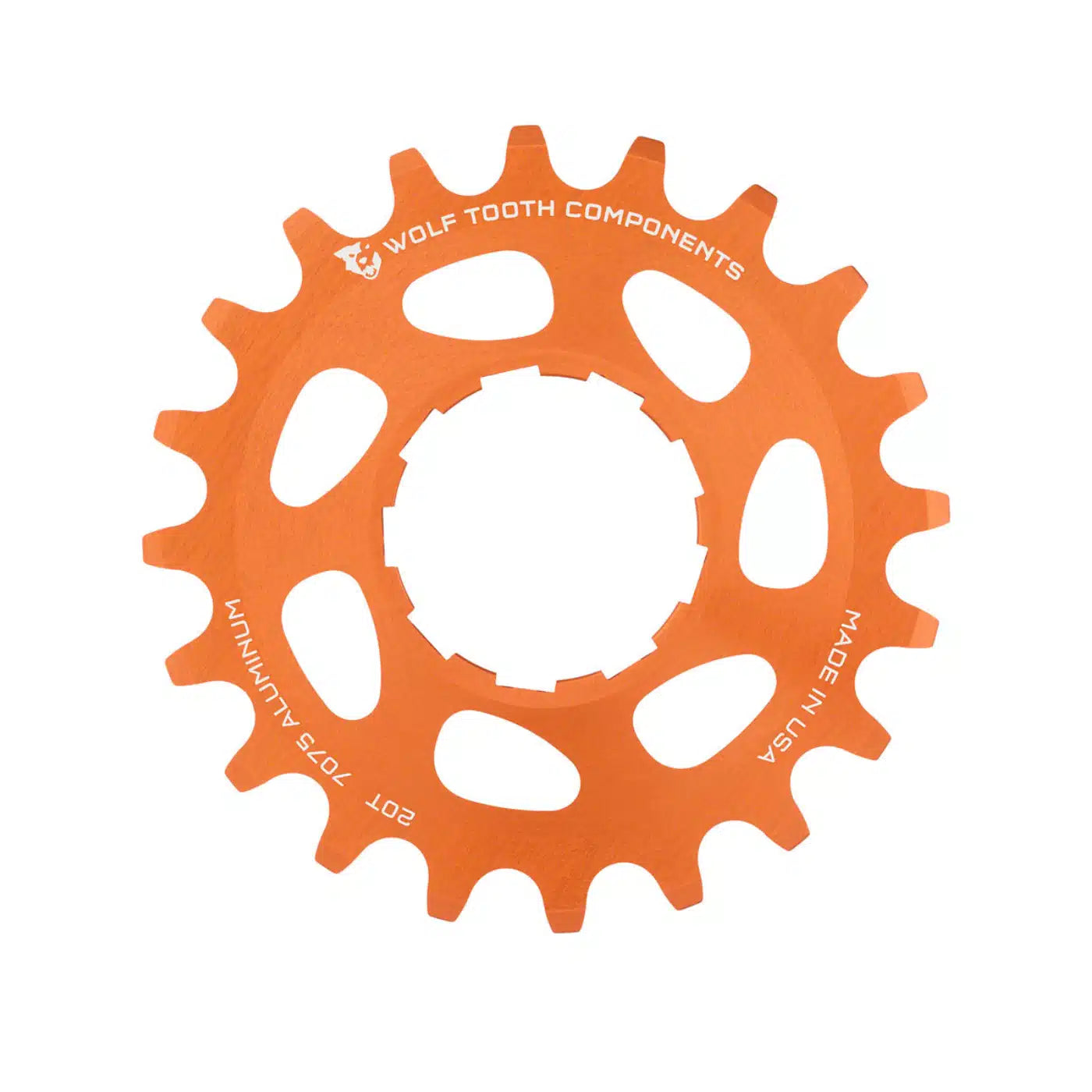

The Wolf Tooth Aluminum Single Speed Cog 20T in Orange has extra tall teeth for reliable chain retention when you run a chain tensioner. It is reversible, and Wolf Tooth says its 4.5mm wide base won't dig into your freehub body. It is made from 7075-T6 aluminum, and Wolf Tooth lists the 20T at 23.5g.

The cog fits a Shimano Hyperglide style freehub spline, geared or single speed. It does not fit Shimano Microspline or SRAM XD freehubs. It works with any 9, 10, or 11 speed chain and with SRAM Eagle, Shimano HG+, KMC, Wipperman, and Connex 12 speed chains. Wolf Tooth says it does not work with single speed specific chains, SRAM Transmission (T-Type) or road Flattop 12 speed chains, or Campagnolo Ekar 13 speed chain.

To set your chainline, Wolf Tooth makes a Single Speed Spacer Kit with a stainless steel lockring, and its Drop-Stop chainrings pair with these cogs. If you want more durability, Wolf Tooth also makes a stainless steel single speed cog.

$54.95
$54.95
Shipping calculated at checkout.

1 in stock

  • Orders over $100 ship free! US addresses only.
  • Estimated delivery: Oct 25 - Oct 29

Ask a question

The fields marked * are required.

more details:

Wolf Tooth logo

Specifications

  • Tooth Count: 20T
  • Color: Orange
  • Material: 7075-T6 aluminum
  • Weight: 23.5g
  • Base Width: 4.5mm
  • Teeth: Extra tall, for chain retention with chain tensioners
  • Reversible: Yes
  • Freehub: Shimano Hyperglide style spline, geared or single speed (not Shimano Microspline or SRAM XD)
  • Compatible Chains: Any 9, 10, or 11 speed; SRAM Eagle, Shimano HG+, KMC, Wipperman, and Connex 12 speed
  • Not Compatible With: Single speed specific chain, SRAM Transmission (T-Type) and road Flattop 12 speed chain, Campagnolo Ekar 13 speed chain

FAQ

Can I use a single speed chain with this cog?

No. Wolf Tooth says this cog is not compatible with single speed specific chains. Use a 9, 10, or 11 speed chain, or one of the 12 speed chains Wolf Tooth lists: SRAM Eagle, Shimano HG+, KMC, Wipperman, or Connex.

Will it fit my hub?

It fits a Shimano Hyperglide style freehub spline, on either a geared or single speed hub. It does not fit Shimano Microspline or SRAM XD freehubs.

Why does the 4.5mm base matter?

Wolf Tooth designed the 4.5mm wide base so the cog won't dig into your freehub body.

How do I set my chainline?

Wolf Tooth makes a Single Speed Spacer Kit with a stainless steel lockring for dialing in chainline with these cogs.

Best For

Riders building a single speed on a Shimano Hyperglide style freehub with a chain tensioner and a 9 to 12 speed derailleur chain.
