Wolf Tooth B-RAD 2 Base Mount

B-RAD, which stands for Bottle Relocation and Accessory Device, is a system for organizing on-bike accessory storage using bottle cage mounts. Used alone to shift bottle cage location for clearance, or combine with other B-RAD accessories to carry tools, tubes pumps or a 2nd bottle on downtubes.

• Single bottle mount with two slotted holes for adjustments up to 4mm +/- 10mm
• Designed to maximize bottle capacity on small frame bikes and dual suspension frames

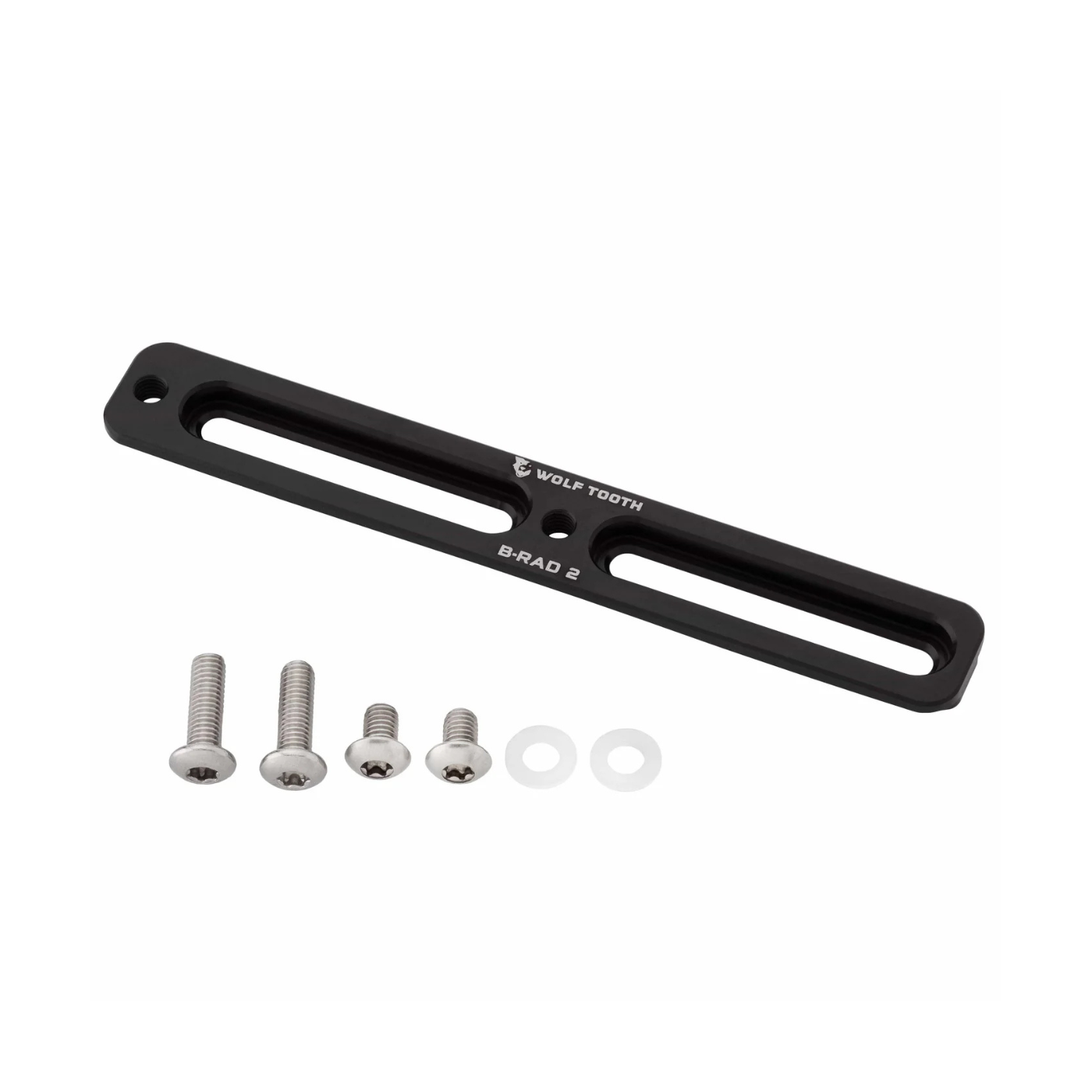

Wolf Tooth B-RAD 2 Base Mount

• The 2-slot base can move a bottle or other accessory up to 54mm to an optimal location even on a smaller or dual suspension frame
• B-RAD 2 base instructions

Compatibility

• Mounting any of the bases requires the use of at least two standard threaded bottle cage mounts. B-RAD 3 and B-RAD 4 should use the auxiliary foam pad (to protect your frame) and zip tie to secure the base. Any other mounting methods are not recommended
• You may need a Problem Solvers Space Out Kit or similar method to clear the front derailleur clamp. Be sure to use bolts with additional length equivalent to the extra spacing added
• Compatible with any frame that uses standard 64mm spacing bottle cage braze-ons (basically every modern frame)
• Hardware included is T25 Torx head

Weight:B-RAD 2 • 27g
Material: 6061-T6 aluminum brackets | EVA foam pad
Thickness: 6 mm
Tools Needed: T25 Torx
Torque: 3-4 Nm
Max Load: 1700g per base
Made in the USA

Manufacturer Part Number: B-RAD-2

UPC: 812719025782
