Wolf Tooth B-RAD 3 Base Mount

Wolf Tooth B-RAD 3 Base Mount

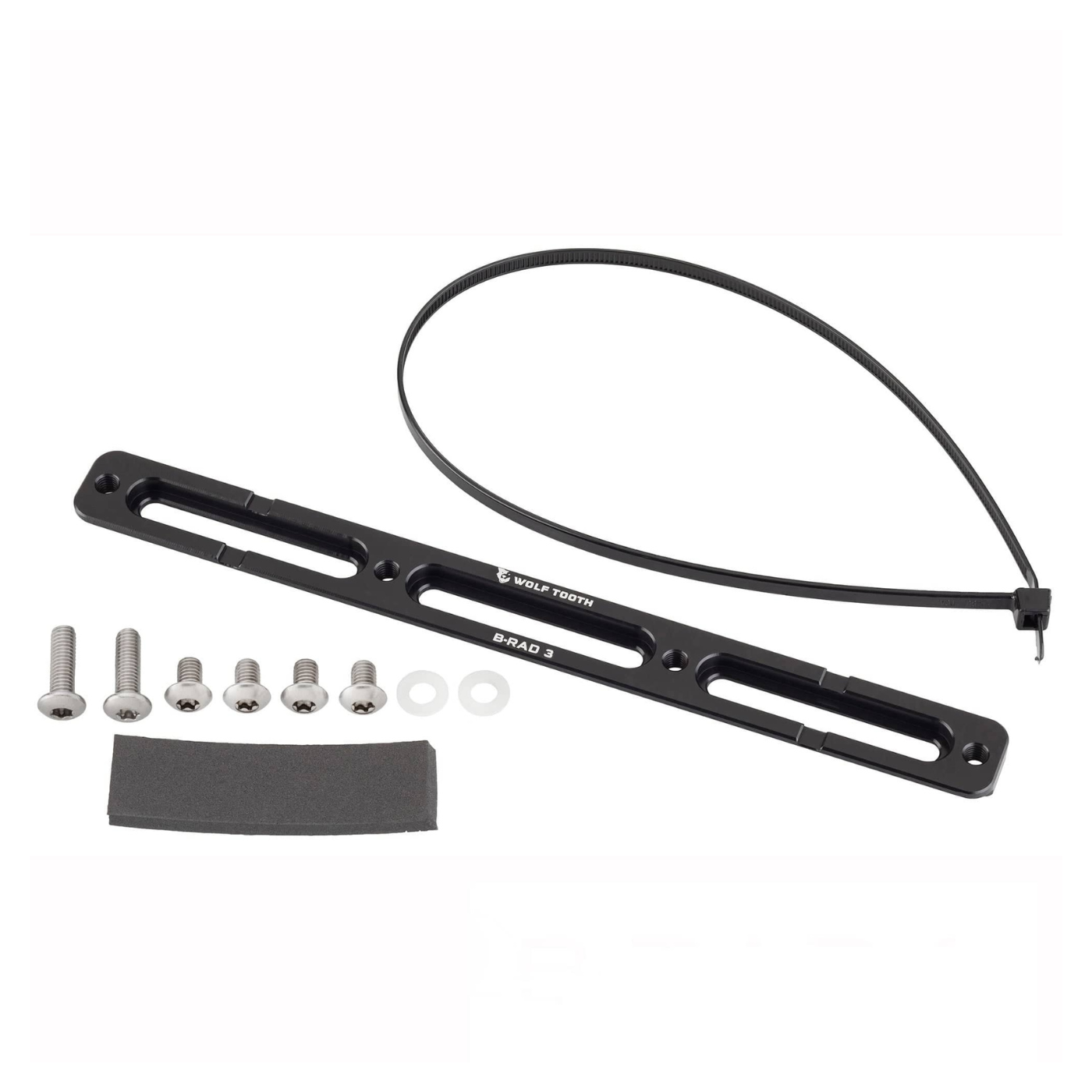

The 3-slot base with 4 threaded holes provides additional adjustment of up to 118mm and mounting options vs the B-RAD 2. A typical application would be to mount a bottle cage in the forward threaded holes with a B-RAD accessory tucked behind it. This mounts perfectly to triple bottle mounts on frames and forks. The B-RAD 3 includes a recommended zip tie, channels for the zip tie, and a foam pad for secure mounting

• Three slots for additional adjustments over the B-RAD 2 base

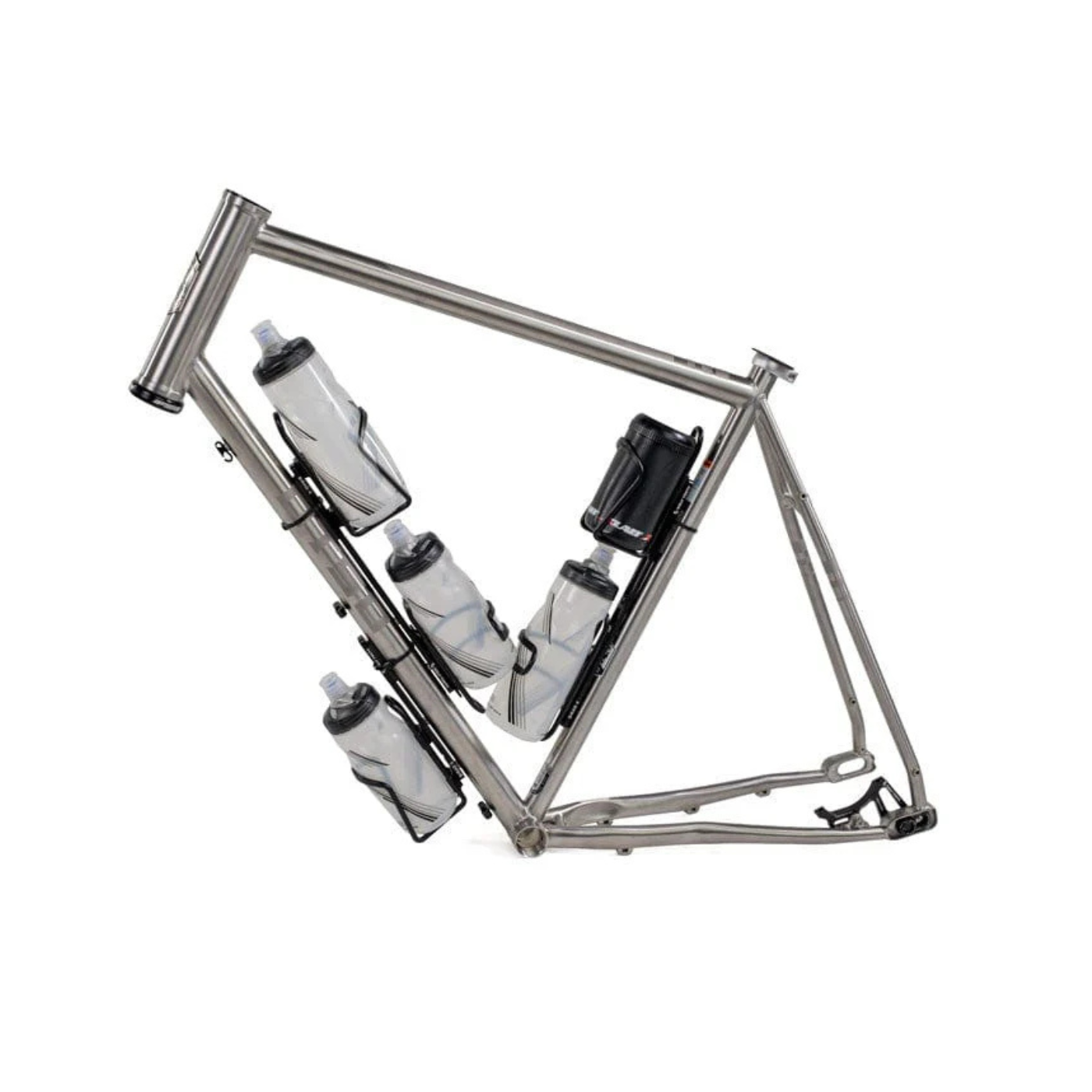

• Compatible with triple bottle mounts on forks or frames, use neoprene pad and zip tie for use with standard bottle cage mounts
• B-RAD 3 base instructions

Compatibility

• Mounting any of the bases requires the use of at least two standard threaded bottle cage mounts. B-RAD 3 and B-RAD 4 should use the auxiliary foam pad (to protect your frame) and zip tie to secure the base. Any other mounting methods are not recommended
• You may need a Problem Solvers Space Out Kit or similar method to clear the front derailleur clamp. Be sure to use bolts with additional length equivalent to the extra spacing added
• Compatible with any frame that uses standard 64mm spacing bottle cage braze-ons (basically every modern frame)
• Hardware included is T25 Torx head
• Weight: B-RAD 3 • 41g
  Material:  6061-T6 aluminum brackets  |  EVA foam pad
  Thickness: 6 mm
  Tools Needed: T25 Torx
  Torque: 3-4 Nm
  Max Load: 1700g per base
  Made in the USA
• Manufacturer Part Number: B-RAD-3
• UPC: 812719025799
