Overview

How does the Wahoo SPEEDPLAY ZERO compare to the NANO and COMP?

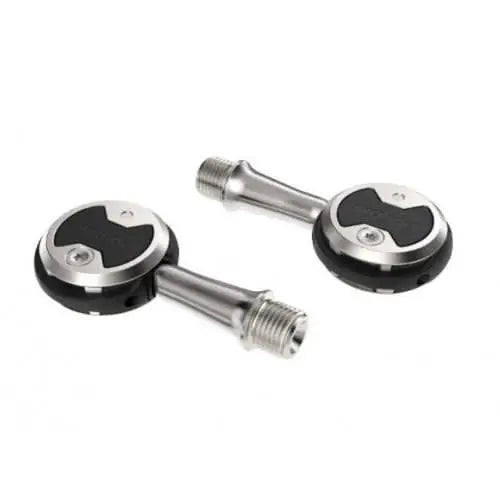

The Wahoo SPEEDPLAY ZERO sits in the middle of the Speedplay lineup, built around a stainless steel spindle and a Grivory GV-6H body at 222 grams per pair. Wahoo's own comparison places it between the 168 gram NANO, with its titanium spindle and carbon composite body, and the 232 gram COMP with its chromoly spindle. The NANO carries a 180 lb rider weight limit, while the ZERO has no rider weight restriction. Like every Speedplay pedal, it has dual-sided entry, so you can clip in from either side without looking down.

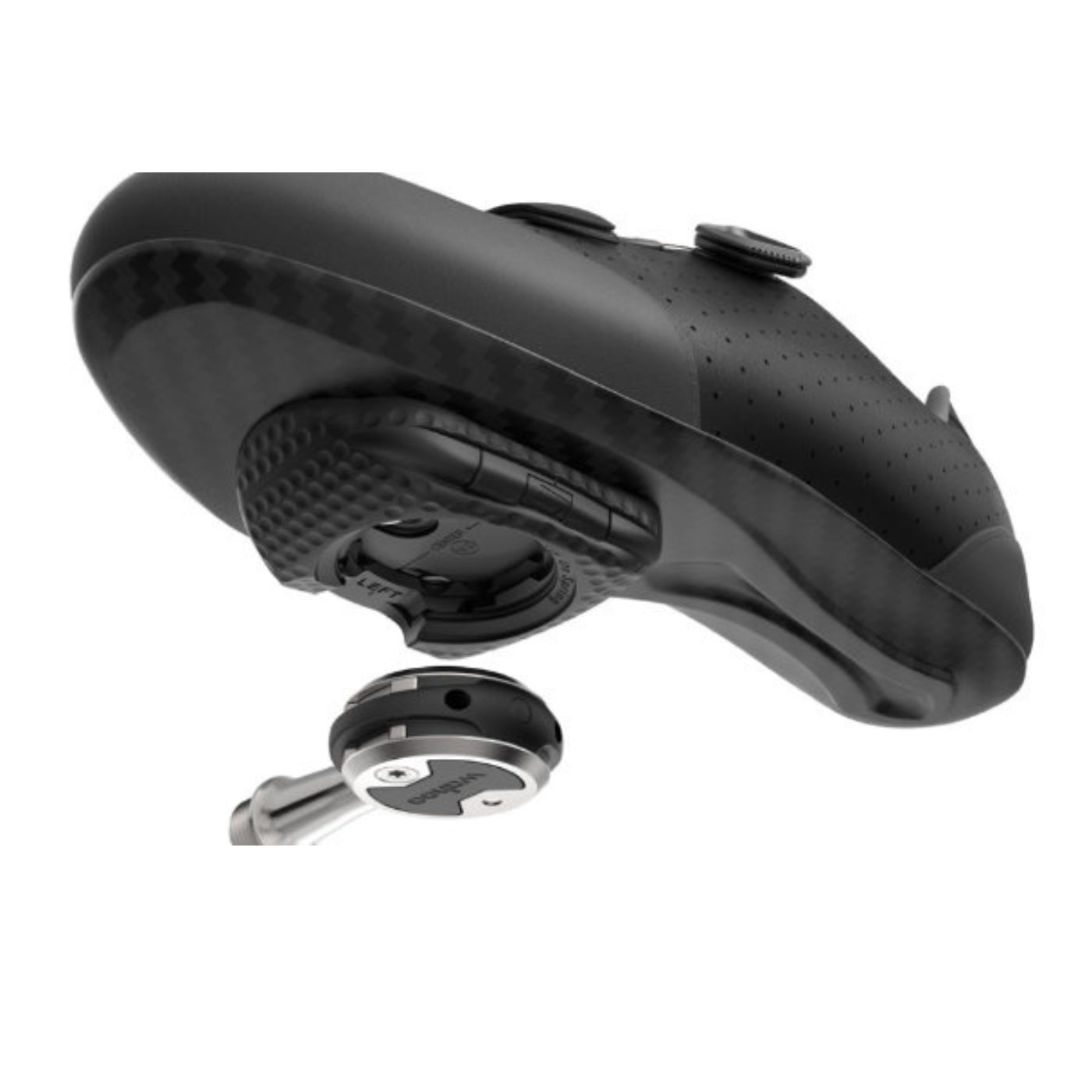

The cleat gives you 3-axis cleat adjustability for fore/aft, left/right and float, with up to 13mm of fore/aft travel, float adjustable from 0 to 15 degrees, and a release angle you can micro-adjust from 0 to 7.5 degrees. Stack height is 11.5mm on a standard 3-hole road shoe, Q factor is 53mm, and the pedals spin on triple sealed cartridge and needle bearings. Standard Tension cleats with a walkable cleat adaptor come in the box, and the Easy Tension cleats are compatible if you want a lighter release.

All the specs

17 specs in 3 groups. Open a group, or expand them all.

Sensors and connectivity1 spec
Shoe Compatibility
Standard 3-hole road shoes (4-hole adaptor plate sold separately)
Build and box5 specs
MPN
WFPRZ1S53
Spindle Material
Stainless steel
Body Material
Grivory GV-6H
Weight
222g per pair
Max Rider Weight
No restriction
Other details11 specs
Q Factor
53mm
Stack Height
11.5mm (3-hole)
Bearings
Triple sealed cartridge and needle bearings
Cornering Clearance
39°
Pedal Float
Adjustable from 0° to 15°
Release Angle
Micro adjustable from 0° to 7.5°
Cleat Fore-Aft Adjustability
Up to 13mm
Cleats
Standard Tension included (Easy Tension compatible, sold separately)
Walkable Cleat
Yes (adaptor included)
Tools Required
#2 Phillips screwdriver and 8mm Allen wrench
Country of Origin
Vietnam

In the box

  • Left and right pedals
  • Cleat assembly
  • Screw packet
  • Quick start guide
  • Important product information guide

FAQ

Good questions

Get to know Wahoo

There's more to Wahoo than this one product. Our Wahoo page has the full Wahoo lineup we carry and more about the brand.

Visit the Wahoo page →
What is the difference between the Wahoo SPEEDPLAY ZERO and NANO?

The Wahoo SPEEDPLAY ZERO uses a stainless steel spindle and Grivory GV-6H body at 222g per pair, while the NANO uses a titanium spindle and carbon composite body at 168g per pair. The NANO also carries a 180 lb (82 kg) rider weight limit, and the ZERO has no rider weight restriction. Both have a 53mm Q factor, 0 to 15 degrees of adjustable float and Standard Tension cleats.

Which cleats come with the Wahoo SPEEDPLAY ZERO?

The Wahoo SPEEDPLAY ZERO comes with Standard Tension cleats and a walkable cleat adaptor. Wahoo also lists the Easy Tension cleat, sold separately, as compatible for a lighter release and less resistance when unclipping.

What is the stack height of the Wahoo SPEEDPLAY ZERO?

The Wahoo SPEEDPLAY ZERO has a stack height of 11.5mm on a standard 3-hole road shoe. A 4-hole adaptor plate is available separately.

Can you use Wahoo SPEEDPLAY ZERO pedals off-road?

No, Wahoo states that SPEEDPLAY pedals are designed for road cycling only. Off-road riding can damage the cleats or lodge debris in them, and Wahoo recommends keeping your cleats clean before and during every ride.
