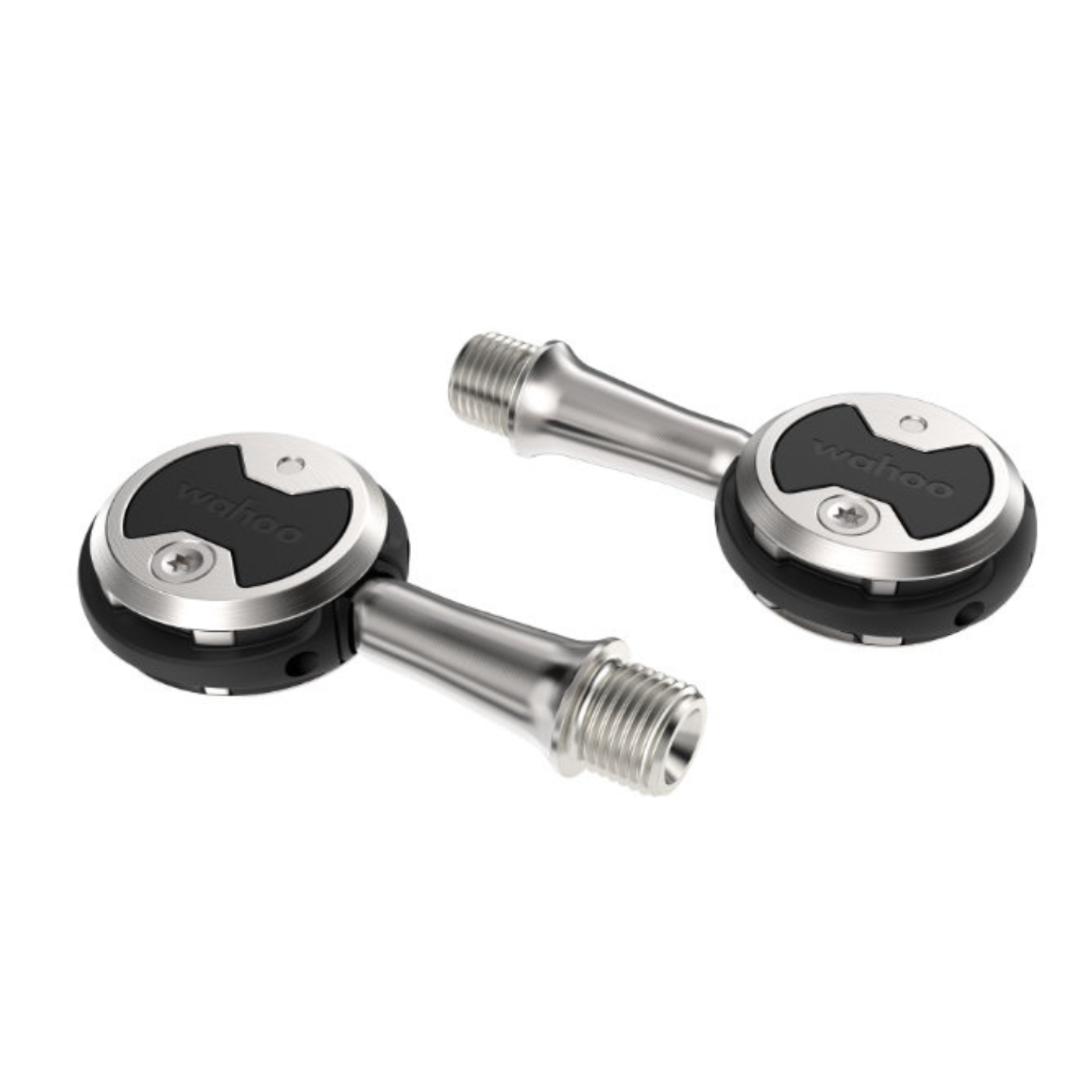

Wahoo SPEEDPLAY ZERO Stainless Steel Pedals - 56mm
Pedals
Wahoo SPEEDPLAY ZERO Stainless Steel Pedals - 56mm
Wahoo SPEEDPLAY ZERO Stainless Steel Pedals - 56mm
The Wahoo SPEEDPLAY ZERO is a dual-sided road pedal that Wahoo builds for everything from all-out racing to double-century days, and this version uses the 56mm custom spindle length in place of the standard 53mm spindle. Read the overview
At a glance
- Spindle Length
- 56mm (custom spindle length)
- Spindle Material
- Stainless steel
- Body Material
- Grivory GV-6H
- Stack Height
- 11.5mm (3-hole)
Out of Stock
Ships free. Free shipping on US orders over $100.
- 30-day returns in new condition. Read the return policy.
- Price matching. Found it for less? See how it works.
Overview
What is the Wahoo SPEEDPLAY ZERO 56mm built for?
The Wahoo SPEEDPLAY ZERO is a dual-sided road pedal that Wahoo builds for everything from all-out racing to double-century days, and this version uses the 56mm custom spindle length in place of the standard 53mm spindle. Wahoo offers the ZERO in four spindle lengths, 53mm, 56mm, 59mm and 65mm, so riders whose fit calls for a longer spindle can stay on the same pedal and cleat system. It pairs a stainless steel spindle with a Grivory GV-6H body, has no rider weight restriction, and lets you clip in from either side without looking down.

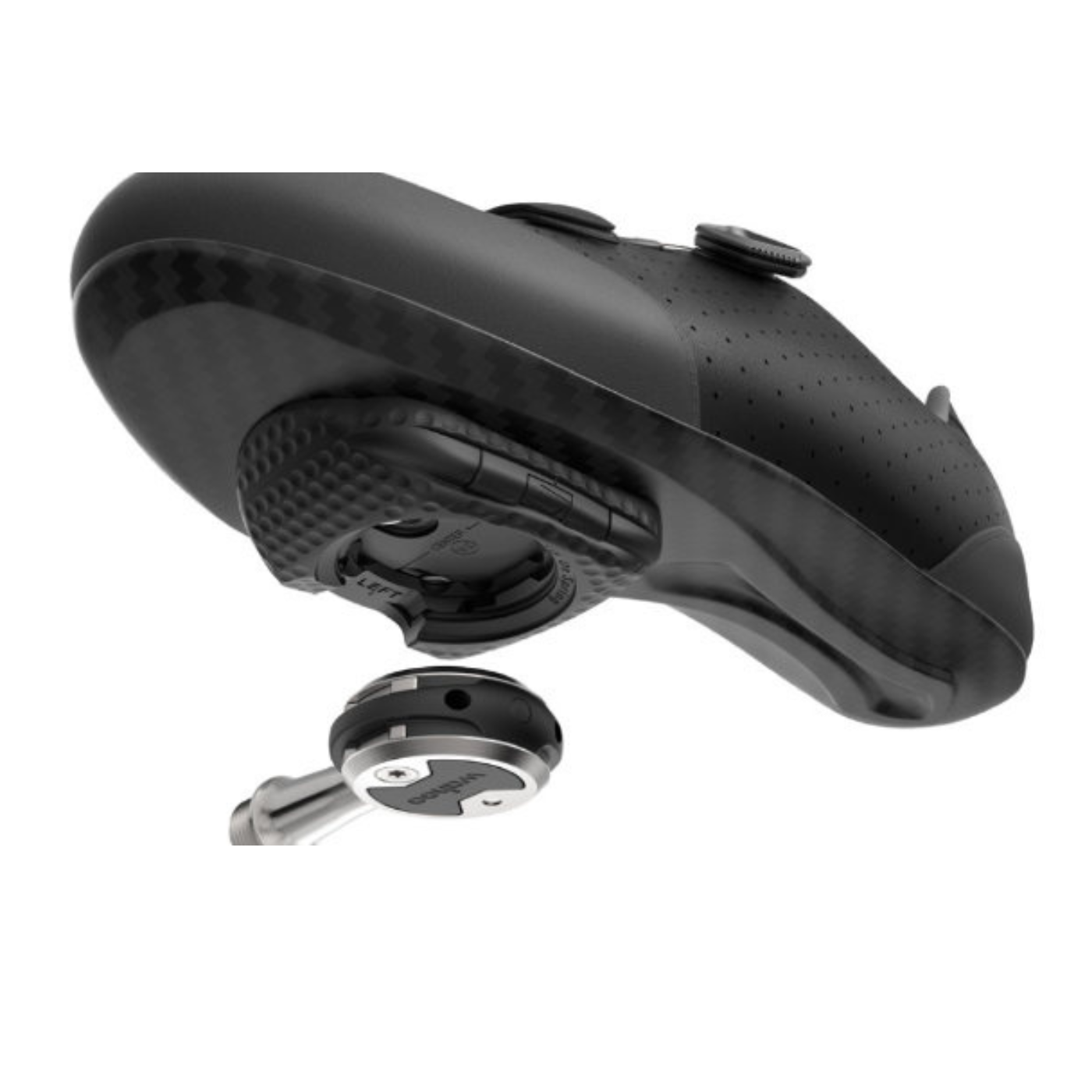

The cleat gives you 3-axis cleat adjustability for fore/aft, left/right and float, with up to 13mm of fore/aft travel, float adjustable from 0 to 15 degrees, and a release angle you can micro-adjust from 0 to 7.5 degrees. Stack height is 11.5mm on a standard 3-hole road shoe, and the pedals spin on triple sealed cartridge and needle bearings. Standard Tension cleats with a walkable cleat adaptor come in the box, and the Easy Tension cleats are compatible if you want a lighter release. Wahoo's published weight and cornering clearance figures are for the standard ZERO, which we carry on its own 53mm listing.
All the specs
15 specs in 3 groups. Open a group, or expand them all.
Sensors and connectivity1 spec
- Shoe Compatibility
- Standard 3-hole road shoes (4-hole adaptor plate sold separately)
Build and box4 specs
- MPN
- WFPRZ1S56
- Spindle Material
- Stainless steel
- Body Material
- Grivory GV-6H
- Max Rider Weight
- No restriction
Other details10 specs
- Spindle Length
- 56mm (custom spindle length)
- Stack Height
- 11.5mm (3-hole)
- Bearings
- Triple sealed cartridge and needle bearings
- Pedal Float
- Adjustable from 0° to 15°
- Release Angle
- Micro adjustable from 0° to 7.5°
- Cleat Fore-Aft Adjustability
- Up to 13mm
- Cleats
- Standard Tension included (Easy Tension compatible, sold separately)
- Walkable Cleat
- Yes (adaptor included)
- Tools Required
- #2 Phillips screwdriver and 8mm Allen wrench
- Country of Origin
- Vietnam
In the box
- Left and right pedals
- Cleat assembly
- Screw packet
- Quick start guide
- Important product information guide
FAQ
Good questions
Get to know Wahoo

There's more to Wahoo than this one product. Our Wahoo page has the full Wahoo lineup we carry and more about the brand.
Visit the Wahoo page →What spindle lengths does the Wahoo SPEEDPLAY ZERO come in?
The Wahoo SPEEDPLAY ZERO comes in a standard 53mm spindle length plus custom spindle lengths of 56mm, 59mm and 65mm. This listing is the 56mm version, Wahoo part number WFPRZ1S56.
How much does the Wahoo SPEEDPLAY ZERO 56mm weigh?
Wahoo does not publish a separate weight for the Wahoo SPEEDPLAY ZERO with the 56mm spindle. The 222g per pair figure Wahoo lists for the ZERO applies to the standard 53mm version, so we do not quote a weight for the 56mm.
Which cleats come with the Wahoo SPEEDPLAY ZERO 56mm?
The Wahoo SPEEDPLAY ZERO 56mm comes with Standard Tension cleats and a walkable cleat adaptor. Wahoo also lists the Easy Tension cleat, sold separately, as compatible for a lighter release and less resistance when unclipping.
Can you use Wahoo SPEEDPLAY ZERO pedals off-road?
No, Wahoo states that SPEEDPLAY pedals are designed for road cycling only. Off-road riding can damage the cleats or lodge debris in them, and Wahoo recommends keeping your cleats clean before and during every ride.
