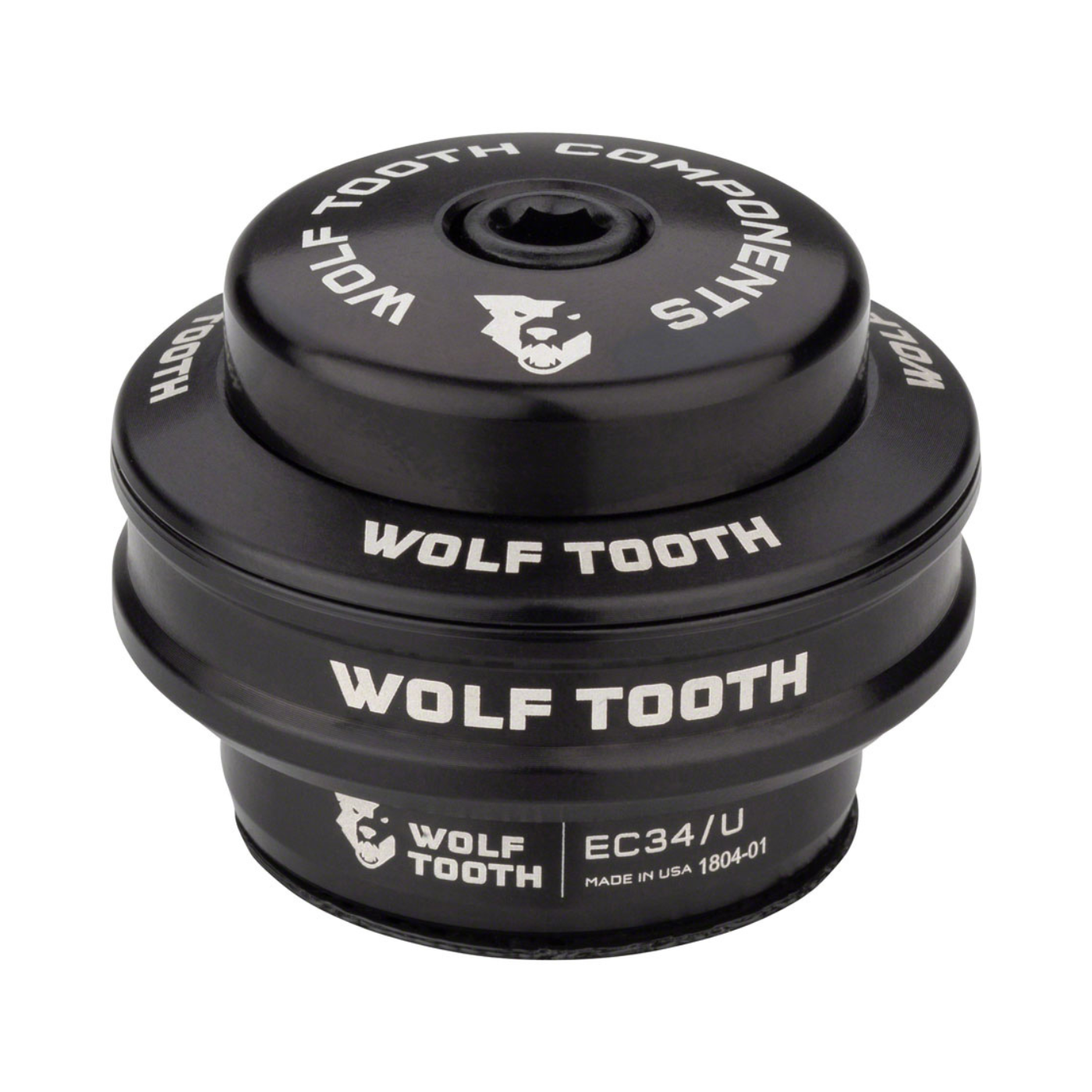

Wolf Tooth Performance Headset - EC34/28.6 Upper
Wolf Tooth Performance Headset - EC34/28.6 Upper

Wolf Tooth Performance Headset - EC34/28.6 Upper

Wolf Tooth Performance Headset - EC34/28.6 Upper

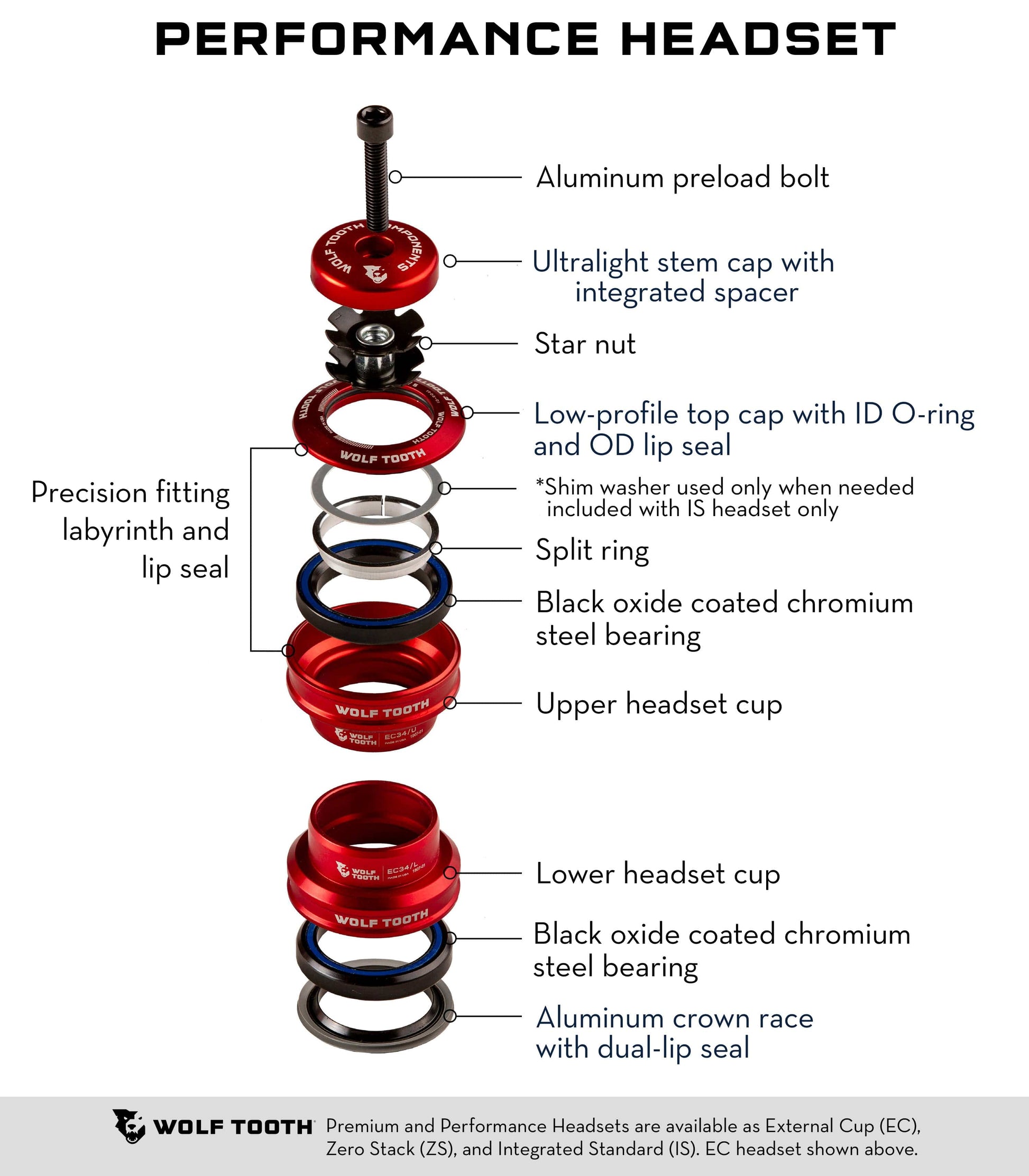

Wolf Tooth headsets are machined in the USA with aircraft-grade 6061 aluminum. Our Performance Headset is built to include a black oxide coated chromium steel bearing and a one year warranty. Our headsets stand above the rest with three levels of superior custom sealing to protect bearings from the elements and prolong the life of the headset. They are designed to be lightweight, strong, and durable. Available in a variety of colors. These EC headsets are for frames with external bearing cups, which places the bearing outside of the frame with these headsets.

  • Black Oxide Bearings are made from chromium steel for high load capacity, durability and corrision resistance
  • Ultralight stem cap with integrated spacer, plus an aluminum bolt and a star nut
  • 5mm top cover = 16mm total stack
  • O-ring seal prevents water intrusion around the steerer tube
  • Custom-molded upper lip seal provides additional protection for upper bearing
$49.95
$49.95 $49.95
Shipping calculated at checkout.

1 in stock

  • Orders over $150 ship free
  • Estimated delivery: Oct 31 - Nov 04

Ask a question

The fields marked * are required.

More Info:

Wolf Tooth Performance Headset - EC34/28.6 Upper, 16mm Stack, Black

  • Color: Black
  • S.H.I.S. Stem Clamp Diameter: 28.6 Threadless
  • Bearing Type: Cartridge , Black Oxide Steel
  • S.H.I.S Upper: EC34
  • Upper Stack Height: 16

Compatibility

  • Stack height designation for EC headsets includes 10mm cup (see tech specs).
  • Any frame that uses an external cup headset with a 34mm upper head tube inner diameter and 34mm, 44mm, or 49mm lower head tube inner diameter.
  • Uppers and lowers sold separately.
  • Enduro black oxide sealed bearings included on both the upper and lower.
  • Upper headsets ship with a star nut which can only be used on forks with steel or aluminum steerer tubes. For forks with carbon steerer tubes you will need a compression plug (sold separately). (Never use a star nut on a carbon steerer tube).
  • A crown race adapter (sold separately) will allow you to use forks with smaller 1-1/8" or 1-1/4" steerer tubes with a larger 1-1/2" bottom headset cup
  • EC34 Lowers are not compatible with Surly 1-1/8" straight steerer forks
